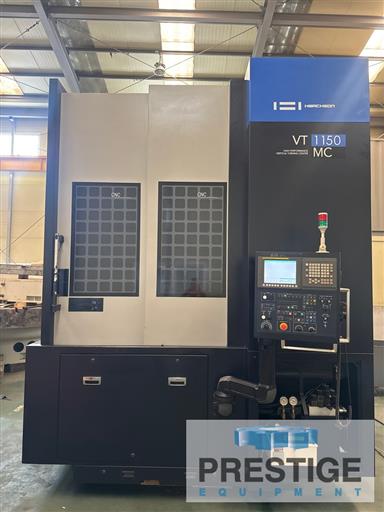

1016 MM Hwacheon VT-1150MC CNC Vertical Turning Center with Milling
Model:
VT-1150-MC
Age:
2015
Ref#:
45111
Prestige Equipment is the world's leading provider of 1016 MM Hwacheon VT-1150MC CNC Vertical Turning Center with Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

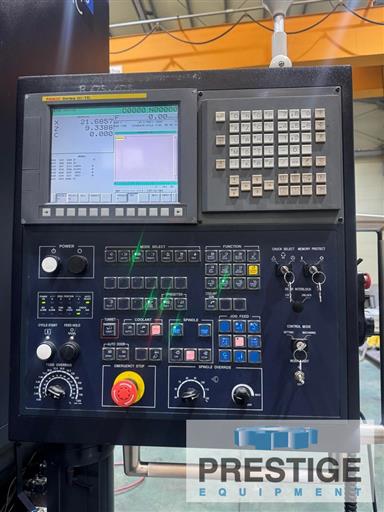

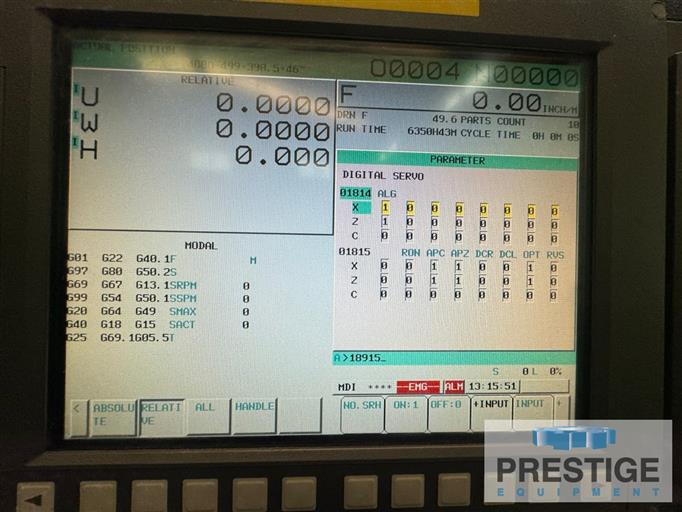

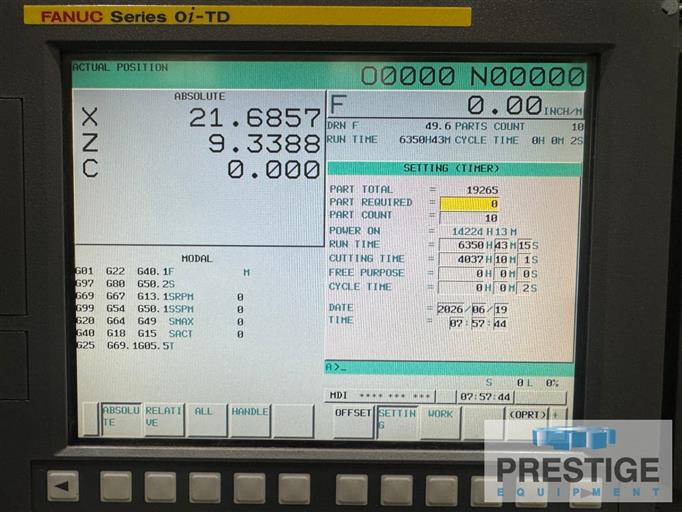

Fanuc Oi-TD CNC Control
✓

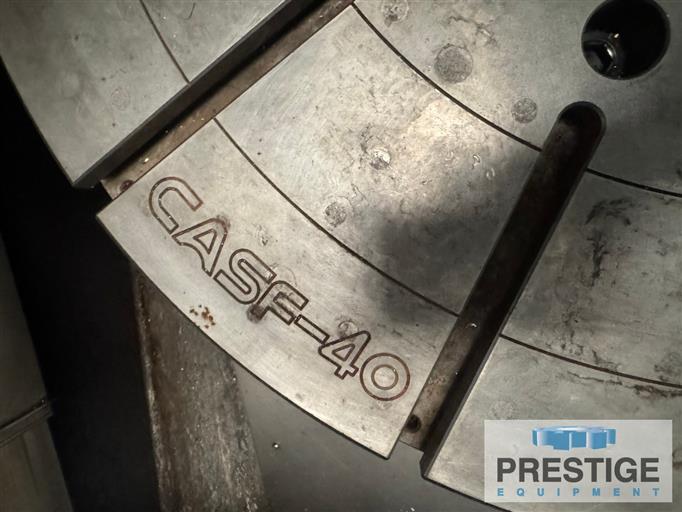

1016 MM Hydraulic Chuck
✓
Live Milling
✓
C-Axis (0.001 Deg.)
✓
12-Station Turret w/ ATC
Product Specifications
CAPACITY:
Table Diameter
1016 MM
Maximum Swing over Bed
1350 MM
Maximum Cutting Diameter
1320 MM
Maximum Cutting Height
950 MM
Table Weight Capacity
2994 KG .
Spindle Motor
55 KW /45 KW
Spindle Speeds
4-630 RPM
Spindle Bearing Diameter
200 MM
X-Axis Travel
610 MM
Z-Axis Travel
950 MM
Rapid Speed (X/Z)...................... 24000 MM
24000 MM
C-Axis Indexing
0.001 Deg.
Live Milling Speed
3,000 RPM
Live Milling Motor
7 KW /6 KW
Approximate Floor Space
2811 MM x 3953 MM
Approximate Machine Height............. 3542 MM
3542 MM
Approx. Weight
24100 KG
Equipped With:
Fanuc Oi-TD CNC Control
1016 MM Hydraulic Chuck
Live Milling
C-Axis (0.001 Deg.)
12-Station Turret w/ ATC
55 KW Motor
Tool Setter
Chip Conveyor
(1) Angular Mill/Drill Holder
(1) Straight Mill/Drill Holder
X/Z Axis Scales
Features:
✓
Fanuc Oi-TD CNC Control
✓
1016 MM Hydraulic Chuck
✓
Live Milling
✓
C-Axis (0.001 Deg.)
✓
12-Station Turret w/ ATC
