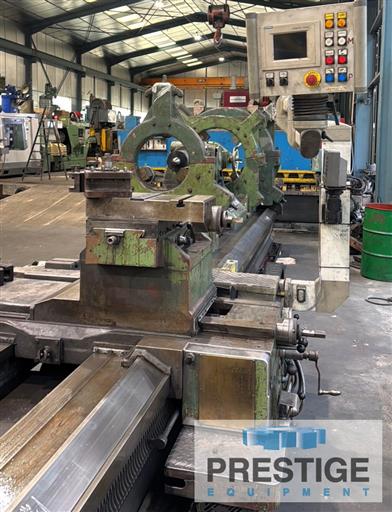

63" x 393" Poreba TCC160/10M Heavy Duty Manual Lathe
Model:
TCC160/10M
Age:
1970
Ref#:
45135
Prestige Equipment is the world's leading provider of 63" x 393" Poreba TCC160/10M Heavy Duty Manual Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓

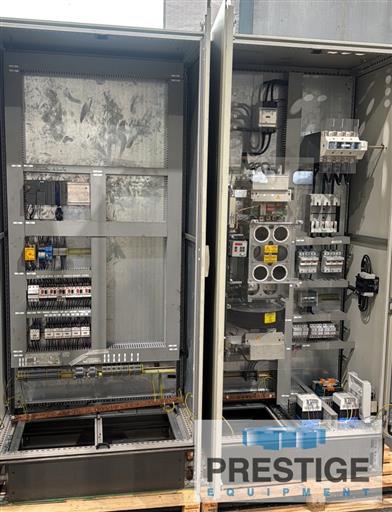

Siemens Simatic Panel
✓
63"Independent 4-Jaw Chuck
✓
100 HP Spindle Motor
Product Specifications
SPECIFICATIONS:
Maximum Swing Over Bedways
62.99"
Maximum Swing Over Cross Slide
51.18"
Distance Between Centers
393.70"
Width Of Bed
43.3"
Spindle Bore (No Hole Through Chuck)
4.13"
Spindle Speeds (24)
.85-170 RPM
Diameter of Spindle Front Journal
10.25"
Longitudinal Feeds (20)
0.007 to 0.2 IPR
Cross Feeds (20)
0.0035 to 0.1 IPR
Rapid Traverse
158 IPM
Metric Threading
1 to 129
Inch Threading
30 to 1/8
Tailstock Quill Diameter
8.66"
Tailstock Quill Travel
23.62"
Weight Capacity Between Centers
35,200 lbs
Equipped With:
Siemens Simatic Panel
63"Independent 4-Jaw Chuck
100 HP Spindle Motor
Power Compound for Taper Turning
Threading

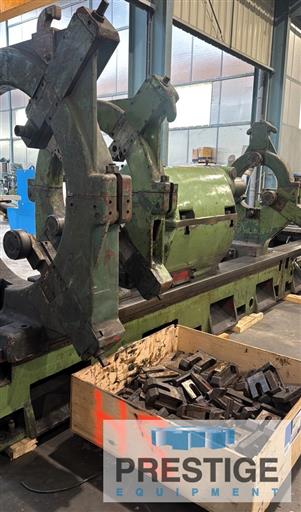

Steady Rests
Tailstock
100 HP Main Spindle Motor
Features:
✓
Siemens Simatic Panel
✓
63"Independent 4-Jaw Chuck
✓
100 HP Spindle Motor
