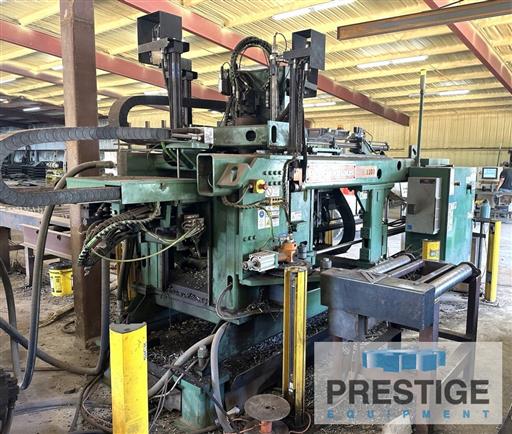

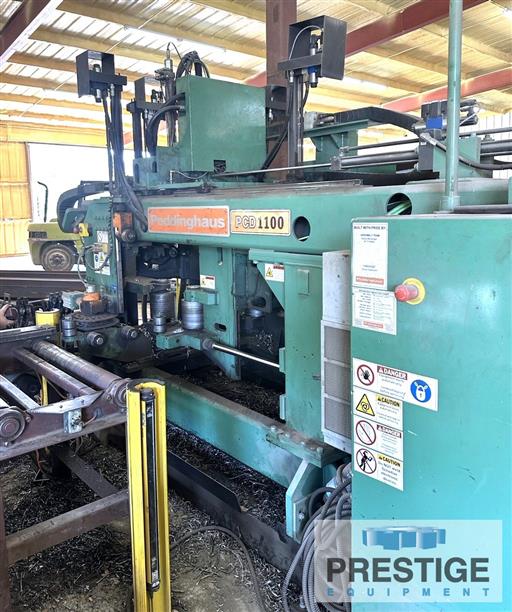

Peddinghaus PCD1100/3B 3-Spindle Beam Drill With Ocean DCM 20/30 Miter Saw & Material Handling
Model:
PCD1100/3B
Age:
2013
Ref#:
44158
Prestige Equipment is the world's leading provider of Peddinghaus PCD1100/3B 3-Spindle Beam Drill With Ocean DCM 20/30 Miter Saw & Material Handling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Beam Drill Lines for sale.
Product Specifications
Features:
✓
Siemens CNC Control
✓
Ocean Terminator DCM-20/30 Horizontal Miter Band Saw
✓
Material Handling
Product Specifications
CAPACITY:
Maximum Machining Width
1100 MM
Maximum Machining Height
457 MM
Minimum Machining Width
76 MM
Minimum Length Piece Part
1575 MM
Minimum Bar Stock Thickness
19 MM
Number of Drill Spindles
3
Drill Diameter
40 MM
Power per Spindle
10 KW
Spindle Speeds
200 - 850 RPM
Spindle Stroke
330 MM
Positioning Stroke on Flange Drills
457 MM
Positioning Stroke on Web Drill
1100 MM
X-Axis Feed
130 FPM
Maximum Work Piece Weight
8165 KG
Equipped With:

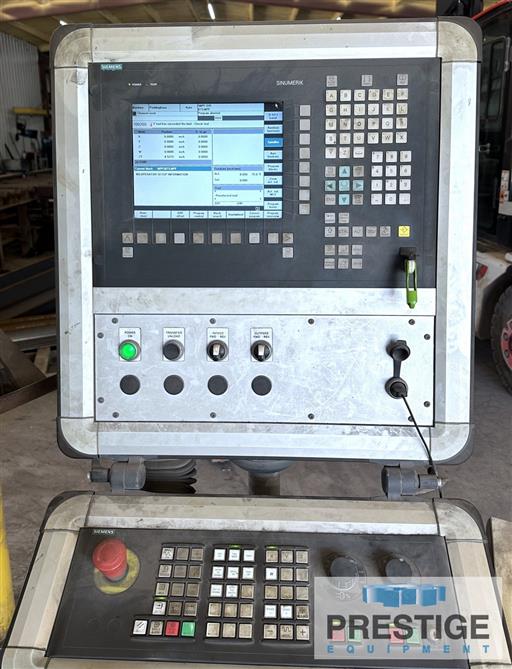

Siemens CNC Control
Unist MQL

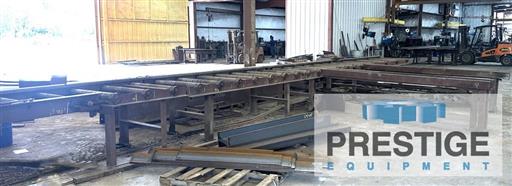

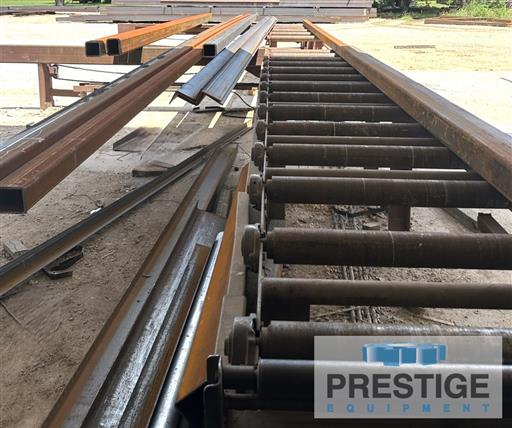

8.53 M of 914 MM Idler Roller Conveyor (Custom Fabricated)
16.15 M of 914 MM Powered Roller Conveyor (Custom Fabricated)
(4) 4.27 M Lift & Carry Transfers (Custom Fabricated)

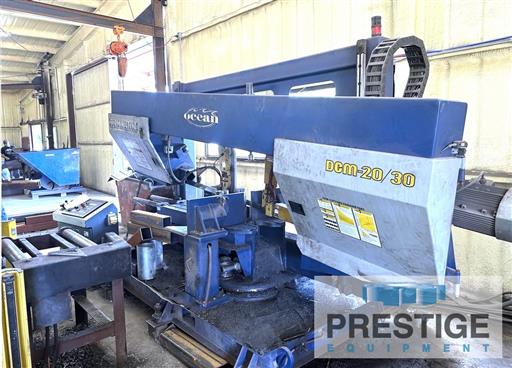

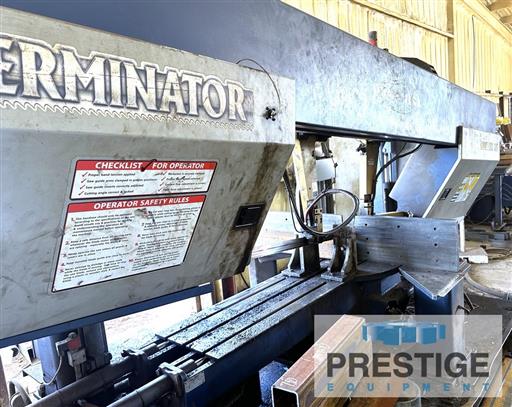

Ocean Terminator DCM-20/30 (508 MM x 762 MM Cap.) Horizontal Miter Band Saw (2008)
NOTE:
Inspect in a Plant Under Power
Features:
✓
Siemens CNC Control
✓
Ocean Terminator DCM-20/30 Horizontal Miter Band Saw
✓
Material Handling
