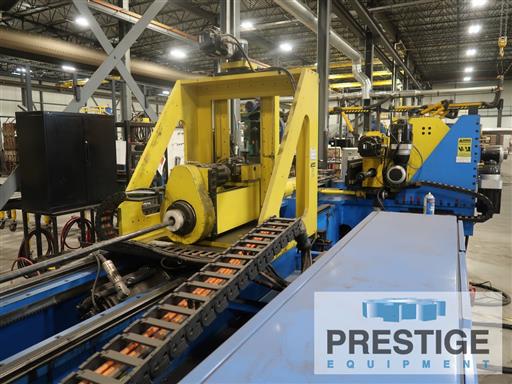

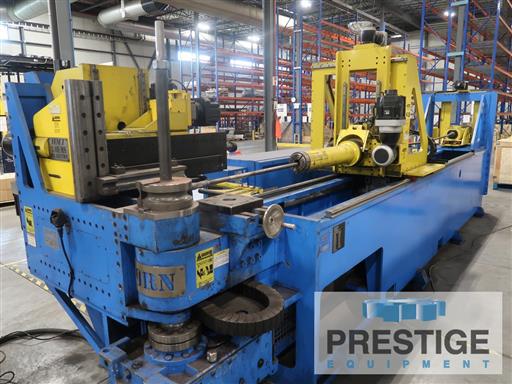

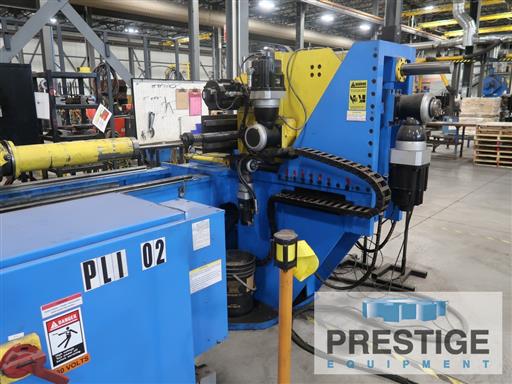

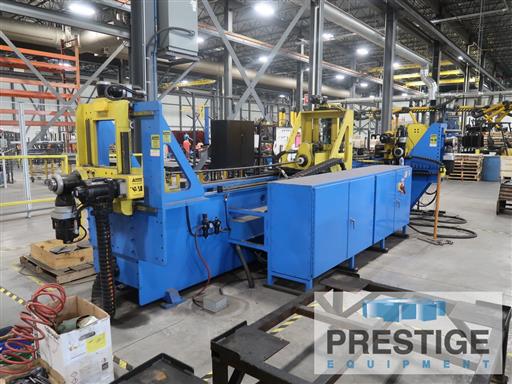

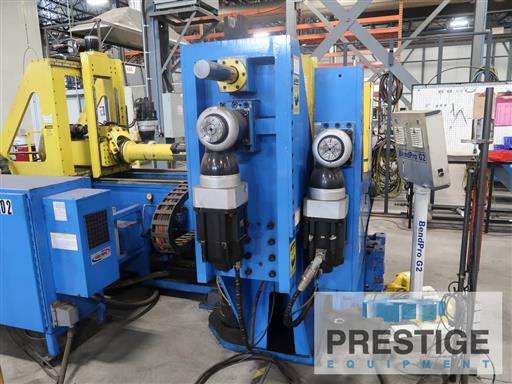

HORN/HMT 3.0E-MS All-Electric Multi-Stack CNC Tube Bender
Model:
3.0ECNC-MS
Age:
2022
Ref#:
44911
Prestige Equipment is the world's leading provider of HORN/HMT 3.0E-MS All-Electric Multi-Stack CNC Tube Bender & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Pipe Tube Benders for sale.
Product Specifications
Features:
✓

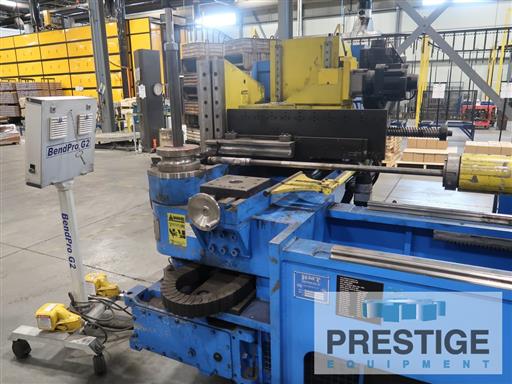

BendPro G2v2 CNC Control
✓
Left-Hand CCW Rotation
✓
Multi-Stack Feature
Product Specifications
BENDER CAPACITY (CLR @ 1.0 X D):
Bending Cap. Round Mild Steel (OD x WT)
3" x .188
Bending Cap. Round Non-Ferrous(OD x WT)
3" x .375
Bending Cap. Round Stainless (OD x WT)
3" x .095
Bending Cap. Square Mild Steel(OD x WT)
2" x .250
Bending Cap. Pipe/Mild Steel
2" IPS Schedule 80
Bending Cap. Solid Bar/Mild Steel
2"
BENDER SPECIFICATIONS:
Maximum Bending Radius
12"
Maximum Bending Angle
190 Degrees
Maximum Length over Mandrel
120"
Working Height
49.2"
Tooling Center Line Height
2.75"
Bend Arm Speed
160 RPM
Y-Axis Travel (Carraige Feed)
117"
Y-Axis Speed
29 IPS
B-Axis Travel (Collet Rotation)
360 Degrees
B-Axis Speed
600 Degrees/Sec
Z-Axis, Vertical Stack Shift Speed
12"/Sec
X-Axis Horizontal Stack Shift Speed
18"/Sec
Electric Service
480 VAC, 3-Ph @ 125 Amps.
Machine Dimensions
96" W x 252" L x 8' H
Machine Weight
24,000 Lbs.
Equipped With:
BendPro G2v2 CNC Control
Left-Hand CCW Rotation
Multi-Stack Feature
Keyence Safety Laser floor scanner
Features:
✓
BendPro G2v2 CNC Control
✓
Left-Hand CCW Rotation
✓
Multi-Stack Feature
