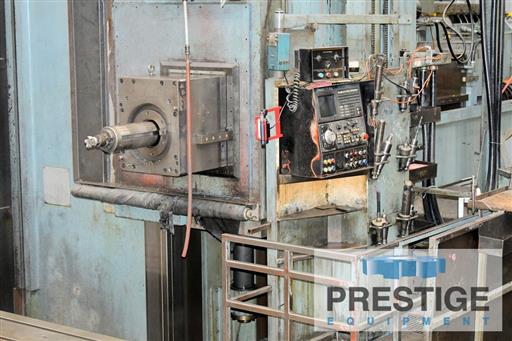

Prestige Equipment is the world's leading provider of Asquith RMD 16/60 6.3" Ram Type CNC Travelling Column Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Floor Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
GE CNC Control
✓
Ram & Spindle Combined Travel/Reach
Product Specifications
SPECIFICATIONS:
Spindle Diameter
6.3"
Milling Sleeve Flange Diameter
11.81"
Ram Dimensions
19.68" X 23.62"
Spindle Taper
#50 ISO
X-Axis, Column Travel X-Axis
669.29"
Y-Axis, Vertical Head Travel
157.48
Z-Axis, Spindle Travel
39.37"
W-Axis, Ram Travel
59.05"
Combined Travel, Z & W Axis
98.42"
Spindle Speeds
4-Ranges
Spindle End Thrust
5900 kgf
Spindle Speeds, Infinitely Variable
2.8-810 RPM
Rapid Traverse, All Axes
196.85 IPM
Feeds, All Axes, Infinitely Variable
0.0393 to 118.11 IPM
Main Drive Motor
85 HP
Machine Weight
304,237 Lbs
Equipped With:
GE CNC Control
Power Adjustable Pendant Control
Power Tool Lock & Eject
Telescoping Steel Way Covers On X-Axis
Chip Conveyor
85 HP Main Drive Motor
NOTES:
Inspect Under Power
Features:
✓
GE CNC Control
✓
Ram & Spindle Combined Travel/Reach
