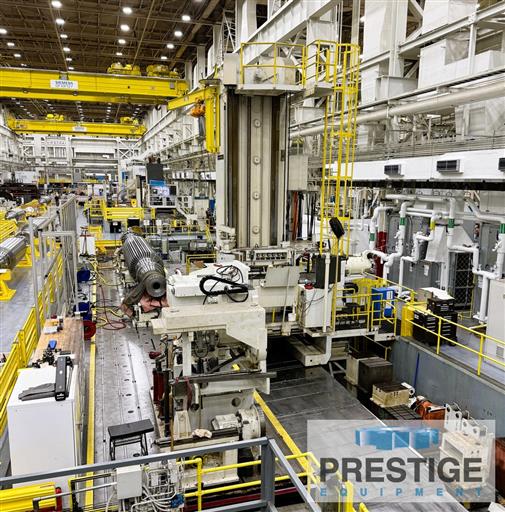

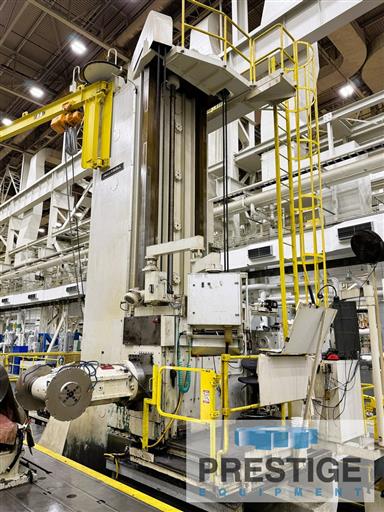

Ingersoll 7" Ram Type CNC Travelling Column Horizontal Boring Mill
Model:
Ram Type
Age:
2001 ®
Ref#:
44193
Prestige Equipment is the world's leading provider of Ingersoll 7" Ram Type CNC Travelling Column Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Floor Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
Siemens 840C CNC Control
✓
Ram Head
✓
2-Axis Nutating Head
✓
Assorted Right Angle Heads
Product Specifications
SPECIFICATIONS:
Spindle Diameter
7.08"
Milling Spindle Diameter
13.39"
Spindle Taper
ISO #50
Ram Cross Section,
24 x 30"
TRAVELS:
X-Axis Column Travel
767.7"
Y-Axis Vertical Head Travel
187.0"
Z-Axis Spindle Travel
39.37"
W-Axis Ram Travel
39.37"
Combined Z & W Travel
78.74"
SPECIFICATIONS:
Spindle Speeds: 4-Ranges
5-1075 RPM
X-Axis Feed Rate
0-397.39 IPM
Y-Axis Feed Rate
0-236.11 IPM
Z & W Axis Feed Rates
0-196.85 IPM
Equipped With:

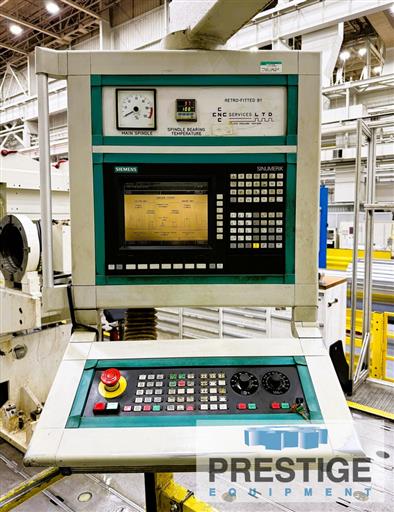

Siemens 840C CNC Control, Retrofit in 2002
Ram Sag Compensation
Hydrostatic Bearing System

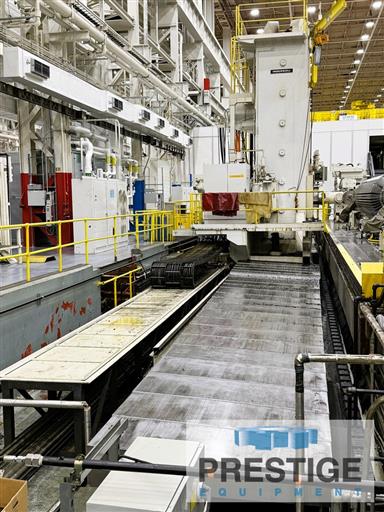

Telescoping Steel Way Covers on X,Y Axes
Full Length Heavy Duty Chip Conveyor with Discharge

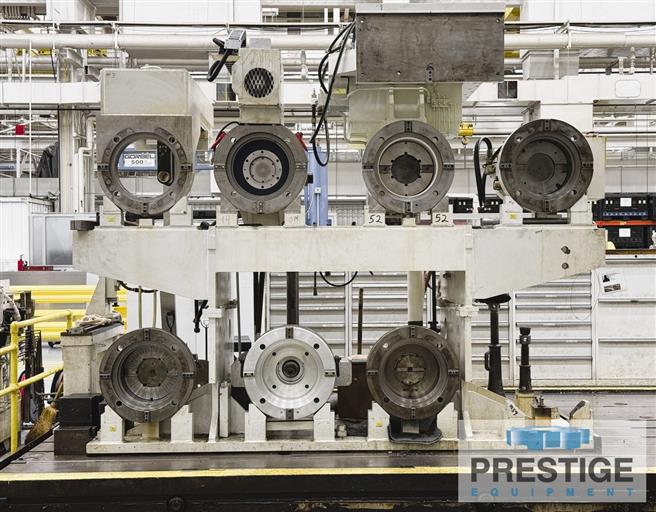

Full Compliment of Special Purpose & Right Angle Heads

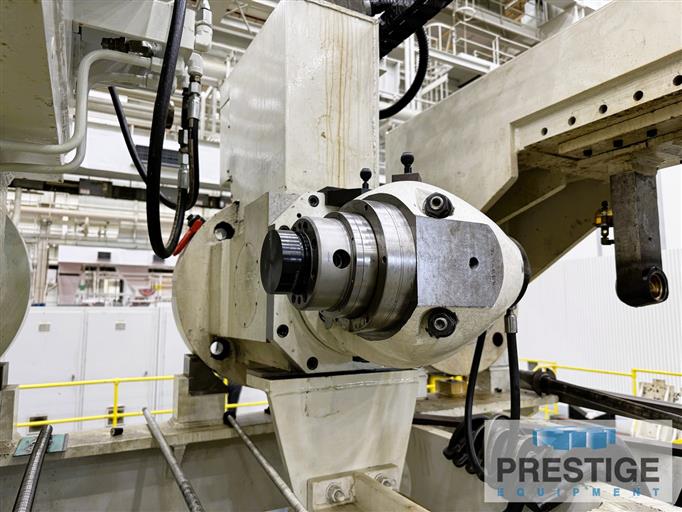

Including: Seymour Universal Head w/ 5 Degree Indexing
Through Spindle Coolant, 3000 Top RPM, KM80 Taper

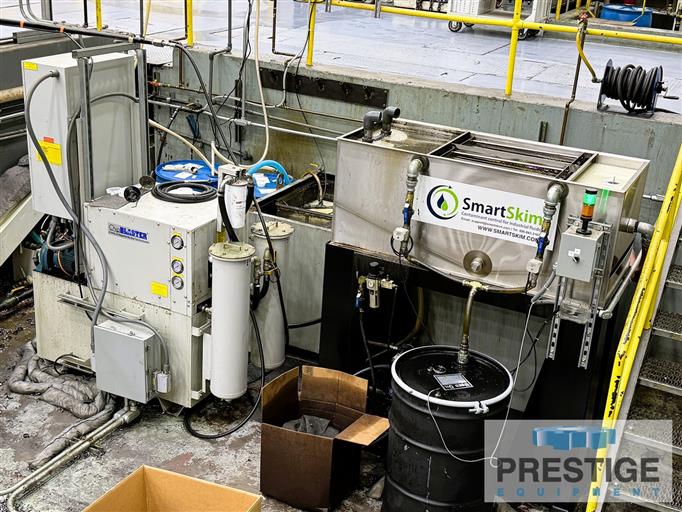

Chip Blaster Unit
Oli Skimmer Unit
Slotting Head

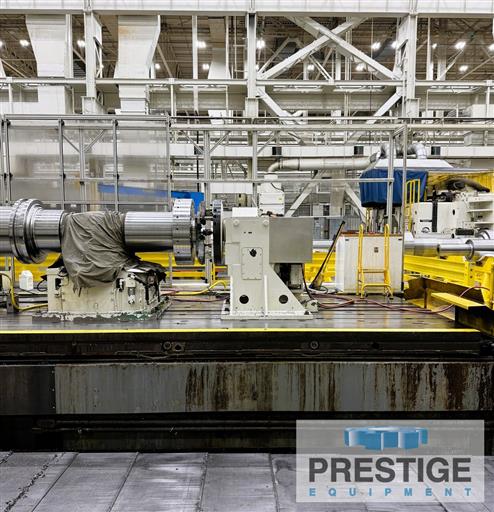

Rotory Indexer with Steady Rests
100 HP Spindle Drive Motor
NOTES:
Headstock Rebuilt in 2024 By OEM
Floor Plates Are Not Included
Features:
✓
Siemens 840C CNC Control
✓
Ram Head
✓
2-Axis Nutating Head
✓
Assorted Right Angle Heads
