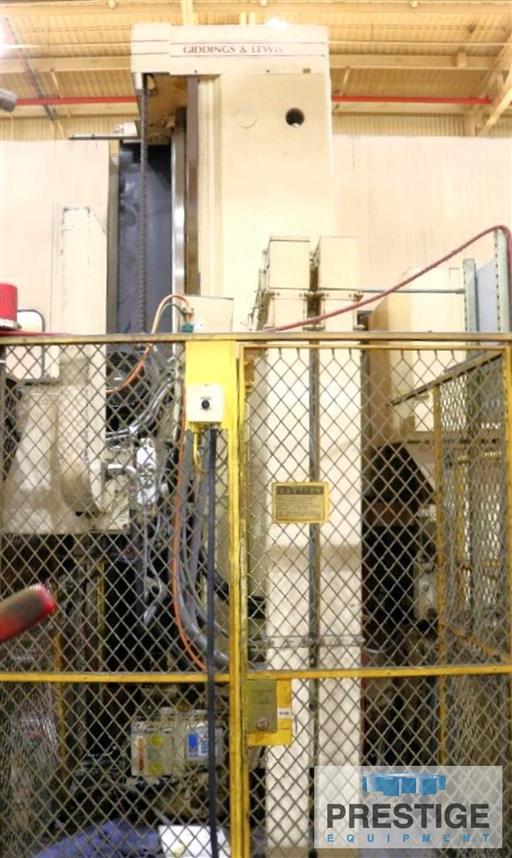

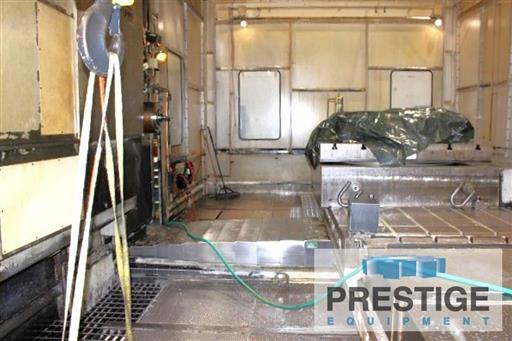

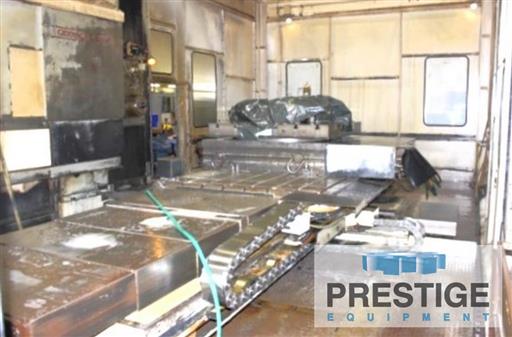

Giddings & Lewis G60-TX 4-Axis CNC Horizontal Boring Mill
Model:
G60-TX
Age:
2016 ®
Ref#:
44124
Prestige Equipment is the world's leading provider of Giddings & Lewis G60-TX 4-Axis CNC Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

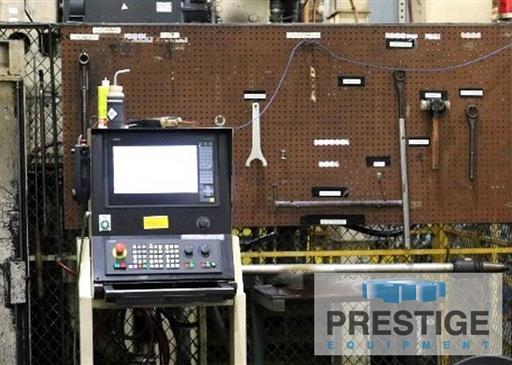

Siemens 840D CNC Control New 2016
✓
40-Station Automatic Tool Changer
✓
Chip Blaster w/Thru-Spindle Coolant
✓
3-Way Vertical Column & Triple Outriggers
✓
Alberti Long Reach Right Angle Head
✓
CH-26 Contour CNC Facing Head
✓
1524 MM x 1524 MM Giddings & Lewis B-Axis Rotary Table
Product Specifications
Serial Number
450-298-99
SPECIFICATIONS:
Spindle Diameter
152 MM
Spindle Taper
#50 ISO/ANSI B5.50
Vertical Head Travel, Y-Axis
2616 MM
Table Cross Travel, X-Axis
3658 MM
Spindle Travel, Z-Axis
1219 MM
Longitudinal Travel, W-Axis
1829 MM
Spindle Speeds, Inf.Variable........... 12 to 2500 RPM
12 to 2500 RPM
Table Size
1829 MM x 3658 MM
Table Weight Capacity
31751 KG
Rapid Traverse Rate, Y-Axis
11430 MM/MIN
Rapid Traverse Rate, X,W,& Z Axes
7620 MM/MIN
Feeds, X,Y,Z,W Axes
.1 to 3810 MM/MIN
Spindle Motor
37 KW
GIDDINGS & LEWIS Model 360-C Contouring CNC Rotary Table:
Table Size
1524 MM x 1524 MM
Table Weight Capacity
13608 KG
Full Contouring B-Axis
360,000 Positions
Equipped With:
Siemens 840D CNC Control New 2016
40-Station Automatic Tool Changer
Replaceable Hardened Ways on 2743 MM Column
Chip Blaster w/Thru-Spindle Coolant, 1600 PSI
Air Blast Thru Spindle
External Coolant
G & L Model 360-C Contouring B-Axis Rotary Table
CH 26 CNC Contouring & Facing Head w/914 MM Capacity
Alberti Long Reach Right Angle Head w/1295 MM Reach
3-Way Vertical Column
Triple Outrigger Table Supports
Steel Telescoping Way Covers
Full Enclosure
480Volt, 3-Phase,60 Hz
37 KW /56 KW Spindle Drive Motor
*Make Offer, New Machine Arriving Must Be Moved!:
Features:
✓
Siemens 840D CNC Control New 2016
✓
40-Station Automatic Tool Changer
✓
Chip Blaster w/Thru-Spindle Coolant
✓
3-Way Vertical Column & Triple Outriggers
✓
Alberti Long Reach Right Angle Head
✓
CH-26 Contour CNC Facing Head
✓
1524 MM x 1524 MM Giddings & Lewis B-Axis Rotary Table
