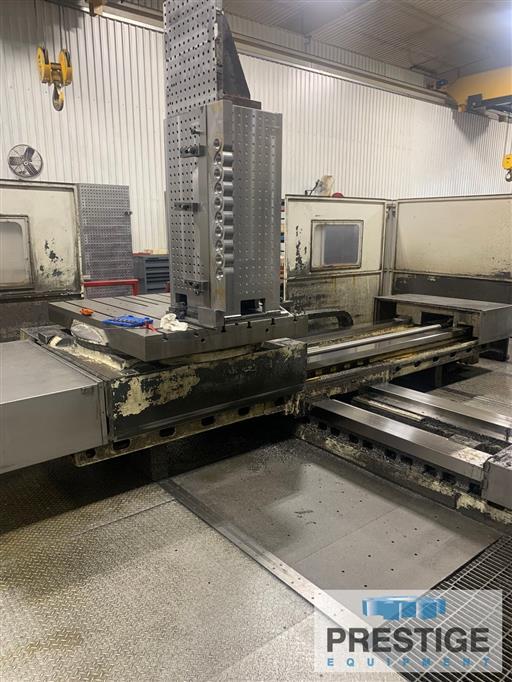

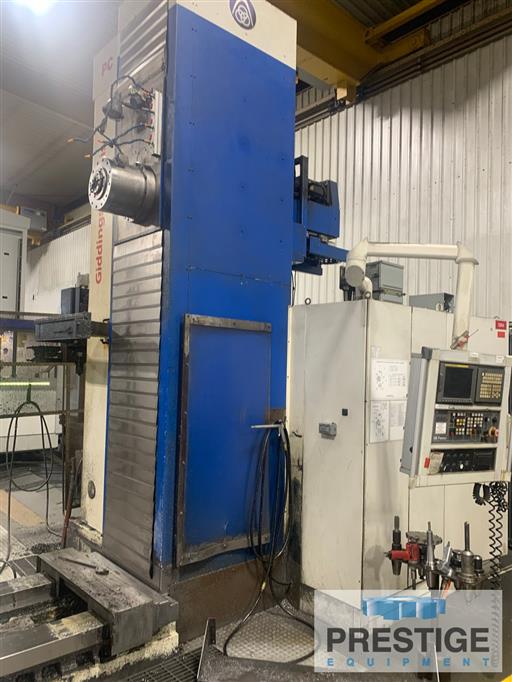

Giddings & Lewis PC50 CNC Boring Mill
Model:
PC 50
Age:
2003
Ref#:
44125
Prestige Equipment is the world's leading provider of Giddings & Lewis PC50 CNC Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

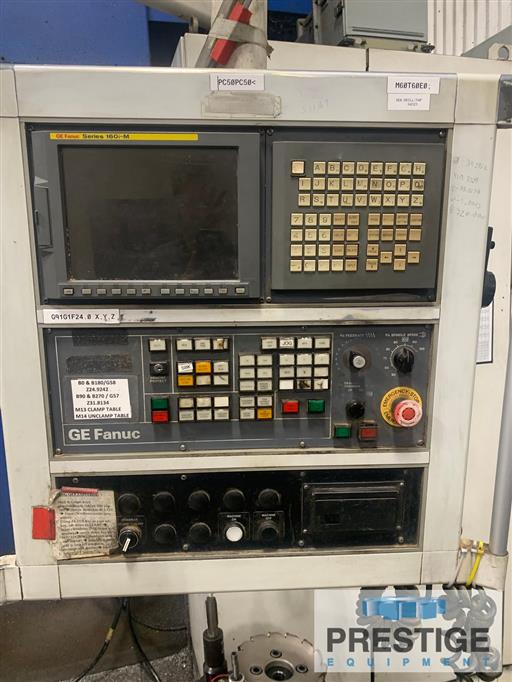

Fanuc 160i-MB CNC Control
✓
60 Station Automatic Tool Changer
✓
Built-In B-Axis Rotary Table
✓
Coolant Thru Spindle
Product Specifications
SPECIFICATION:
Spindle Diameter
130 MM
X-Axis Travel
2499 MM
Y-Axis Travel
2101 MM
Z-Axis Travel
1575 MM
W-Axis Travel
800 MM
Table Dimensions
1251 MM x 1600 MM
Table Rotation, Contouring
.001 Degrees
Table Weight Capacity
11340 KG
Table Index Rate
5 RPM
Rapid Traverse
14986 MM/MIN
Spindle Speeds
10 - 4,000 RPM
Spindle Taper
#50 ANSI B5.50
Spindle Motor
37 KW / 45 KW
Machien Height
5004 MM
Machine Floor Space
6096 MM x 7620 MM
Machine Weight
31751 KG .
Equipped With:
Fanuc 160i-MB CNC Control
60-Station Automatic Tool Changer
Built-In B-Axis Rotary Table
Coolant Thru Spindle
Heidenhain Linear Scales
Power Draw Bar
Renishaw MP10 Probe
Features:
✓
Fanuc 160i-MB CNC Control
✓
60 Station Automatic Tool Changer
✓
Built-In B-Axis Rotary Table
✓
Coolant Thru Spindle
