155 MM Giddings & Lewis RT1250 CNC Boring Mill
Model:
RT-1250
Age:
2006
Ref#:
44126
Prestige Equipment is the world's leading provider of 155 MM Giddings & Lewis RT1250 CNC Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Product Specifications
FEATURES
Fanuc 310i CNC Control
Built-In B-Axis Rotary Table
Thru-Spindle Coolant
Chip Conveyor
SPECIFICATIONS:
Spindle Diameter
155 MM
Taper In Spindle
Cat 50
Vertical Head Travel, Y-Axis
2101 MM
Vertical Head Travel, Above Table
1999 MM
Table Cross Travel, X-Axis
2500 MM
Saddle Travel, W-Axis
1500 MM
Spindle Travel, Z-Axis
1250 MM

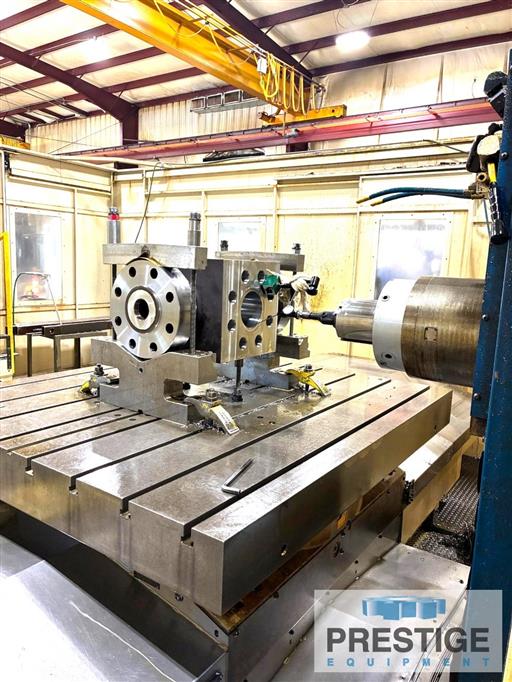

Table Size, Built-In Rotary
1600 MM x 1800 MM
Table Rotation, B-Axis
360,000 Positions
Table Rotation
6 RPM
Table Load Capacity
15014 KG
Spindle Speeds
1-3500 RPM
Speed Ranges
4
Spindle Motor
37 KW / 55 KW
Rapid Traverse
25019 MM/MIN
Floor Space W x D
6096 MM x 7620 MM
Overall Height
5004 MM
Approximate Weight
31751 KG
Equipped With:

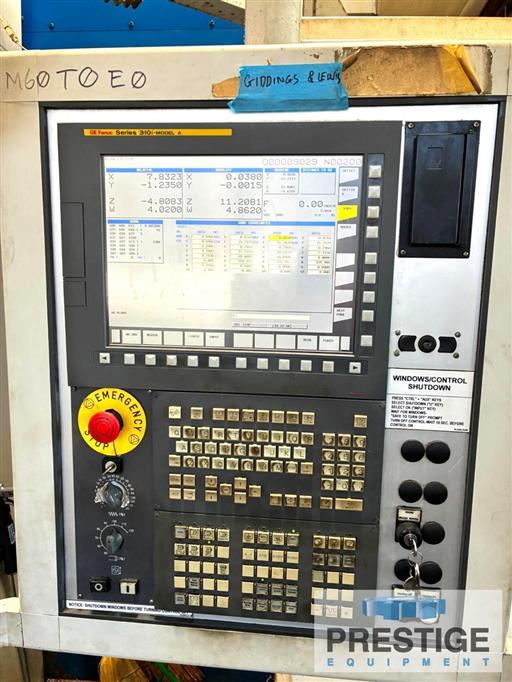

Fanuc 310i CNC Control
Software for CH Facing Heads & Programmable Boring Bars
60 Station Automatic Tool Changer
Coolant-Thru Spindle

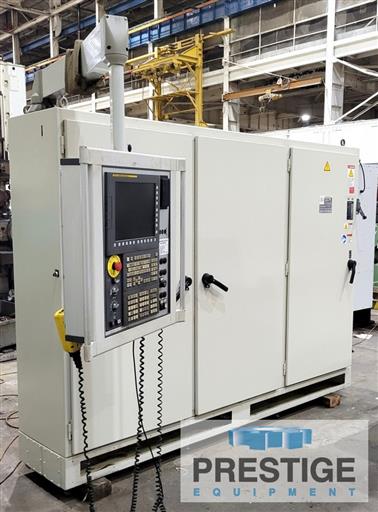

Remote Pendant
Manual Cam Lock Latch Coupler For Attachments

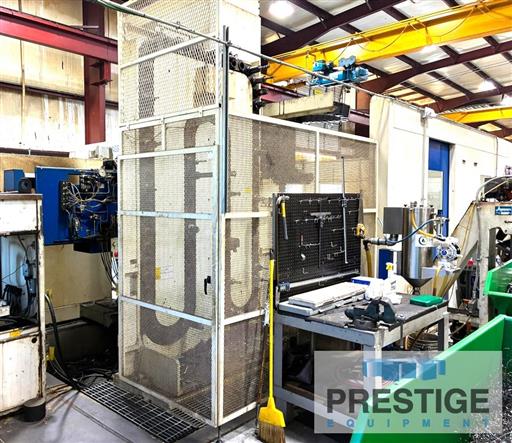

Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
37 KW / 55 KW Spindle Motor
