Giddings & Lewis RT1250 5.1" CNC Horizontal Boring Mill
Model:
RT1250
Age:
2008
Ref#:
43781
Prestige Equipment is the world's leading provider of Giddings & Lewis RT1250 5.1" CNC Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Product Specifications
FEATURES
Fanuc 310i CNC Control
60-Position Automatic Tool Changer
Built-In B-Axis Contouring Rotary Table
Thru-Spindle Coolant
Renishaw Part Probe System
SPECIFICATIONS:
Spindle Diameter
5.1"
Taper In Spindle
Cat 50
Vertical Head Travel, Y-Axis
82.7"
Vertical Head Travel, Above Table
78.7"
Table Cross Travel, X-Axis
98.42"
Saddle Travel, W-Axis
59.05"
Spindle Travel, Z-Axis
31.5"
Table Size
62.99" x 49.2"
Table Rotation, B-Axis
.001 Degrees
Table Rotation
6 RPM
Table Load Capacity
33,100 Lbs
Spindle Speeds
1-4000 RPM
Speed Ranges
2
Spindle Motor
40 HP / 60 HP
Rapid Traverse, X,Y,Z & W
985 IPM
Floor Space W x D
240" x 300"
Overall Height
197"
Approximate Weight
70,000 Lbs
Equipped With:

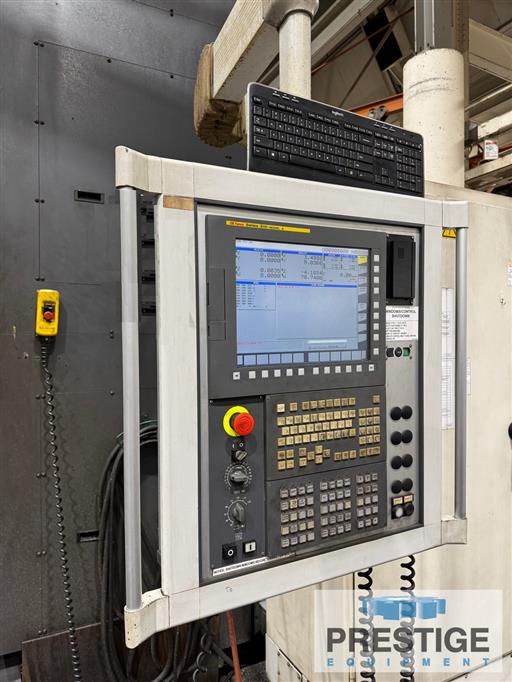

Fanuc 310i CNC Control w/ 15" LCD Monitor
Software for CH Facing Heads & Programmable Boring Bars
Rigid Tapping
Renishaw Part Probe System
60 Station Automatic Tool Changer
Coolant-Thru Spindle
Manual Cam Lock Latch Coupler For Attachments
Built In B-Axis T-Slotted Rotary Table
Additional Fixture Table w/ Big Kaiser Unilock Zero Point Clamping System
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
50 HP / 74 HP Spindle Motor
