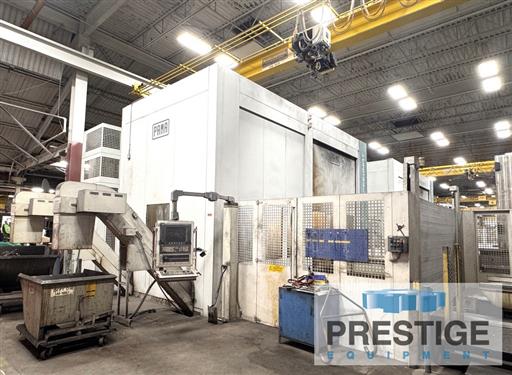

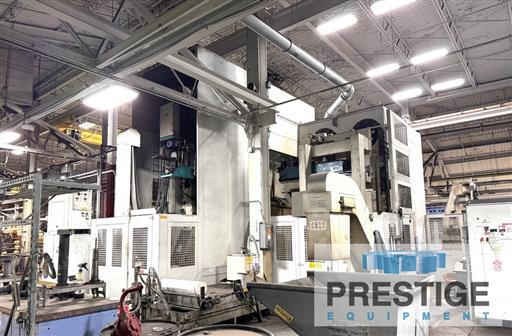

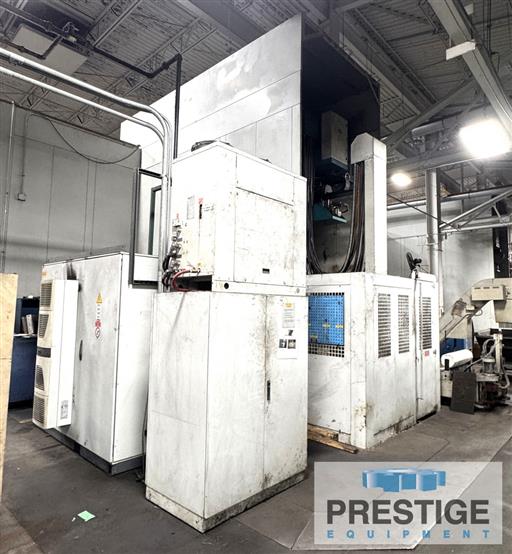

PAMA Speedmat 3/TR 16
Model:
3/TR 16
Age:
2008
Ref#:
44812
Prestige Equipment is the world's leading provider of PAMA Speedmat 3/TR 16 & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

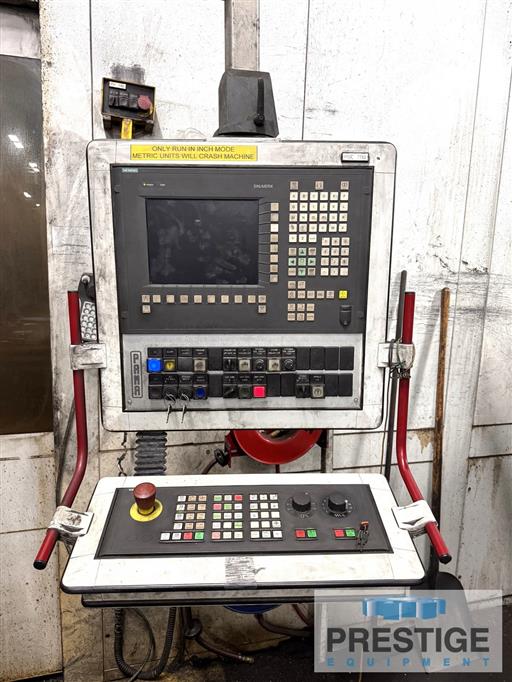

Siemens 840D Powerline CNC Control
✓

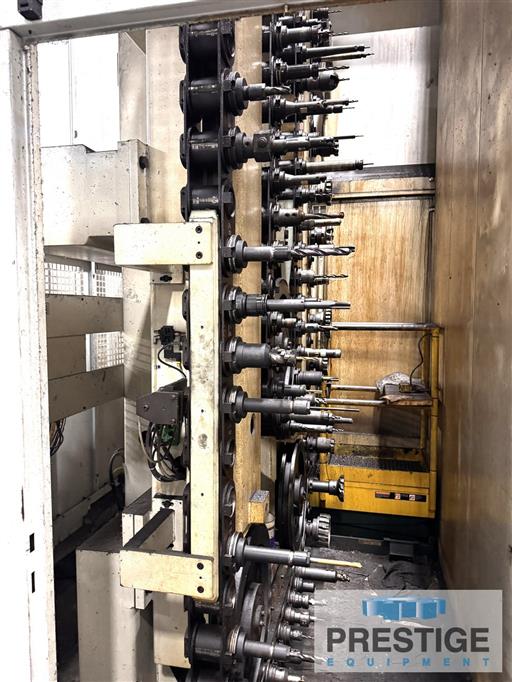

140 Station Automatic Tool Changer
✓

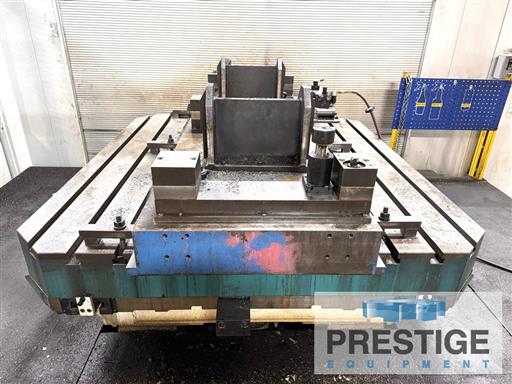

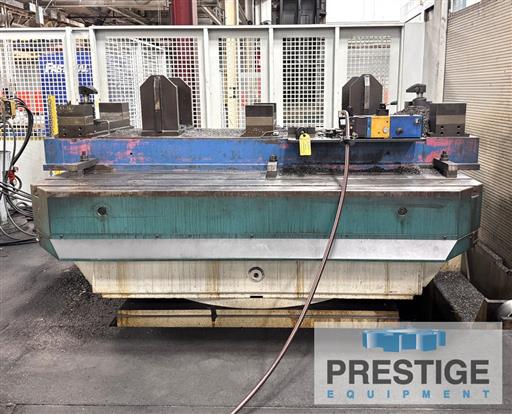

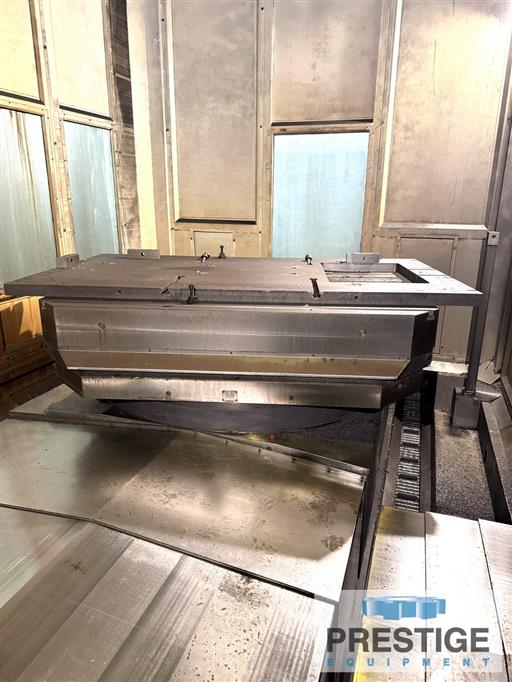

(2) 48" x 72" Pallets with Shuttle System
✓

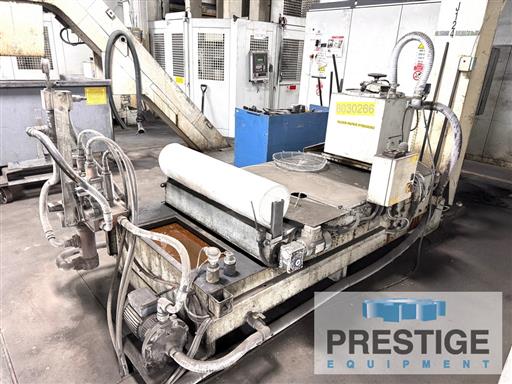

Through Spindle and Flood Coolant System
✓

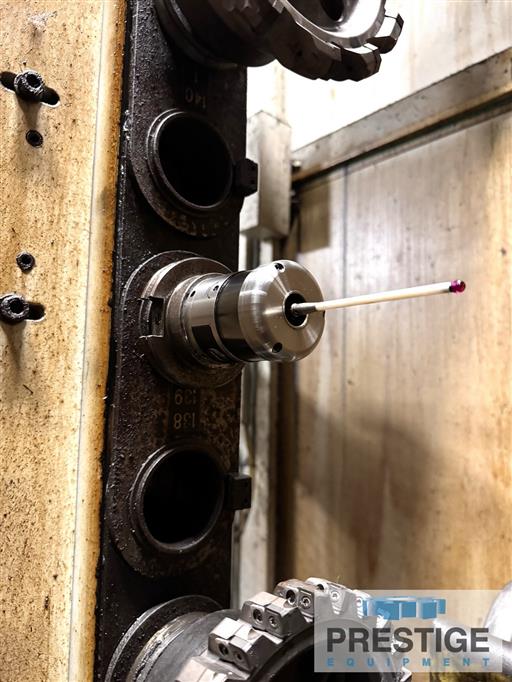

Renishaw Probe RMP-60
✓
Ball Screw and Independent Servo Motors
Product Specifications
SPECIFICATIONS:

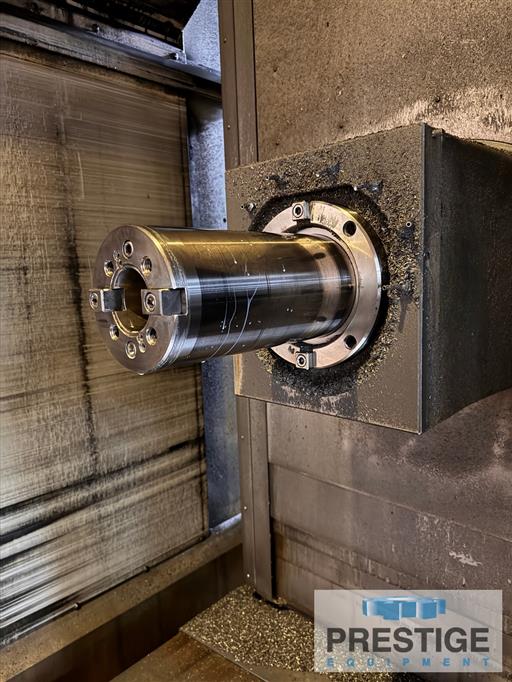

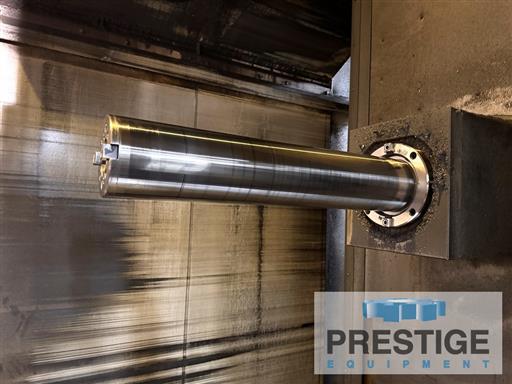

Spindle Diameter
6.3"
Vertical Travel Of Head, Y-Axis
118.11"
Cross Travel Of Table, X-Axis
137.79"
Saddle Travel, W-Axis
106.2"
Spindle Travel, Z-Axis
31.49"
Spindle Speeds, Max
3,500 RPM
Taper In Spindle
#50
Spindle Motor
61 HP (46 KW)
Table Size
70.86" x 78.76"
Table CapaCITY
26,400 LBS.
B-Axis, Table Rotation
.001 degrees
Machine Electrics
480/60/3
Equipped With:
Siemens 840D Powerline CNC Control
140-Station Automatic Tool Changer
(2) 70.86" x 78.78" Pallets with Shuttle System
Ball Screw and Independent Servo Motors
Through Spindle and Flood Coolant System
Renishaw Probe RMP-60

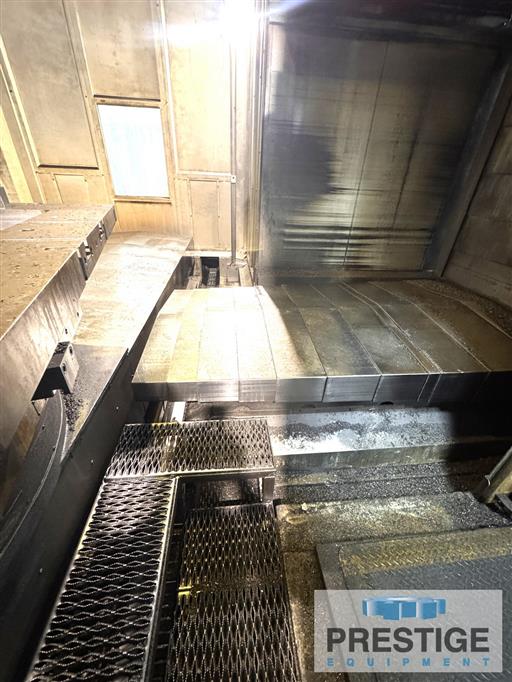

Steel Sliding Way Covers On X & W Axis
Chip Conveyor
NOTE:
(2) Machine Available w/ Dual Pallets
6-Pallet FMS System Available at Additional Cost
Cost is Per Machine
Inspect Under Power In Plant!
Features:
✓
Siemens 840D Powerline CNC Control
✓
140 Station Automatic Tool Changer
✓
(2) 48" x 72" Pallets with Shuttle System
✓
Through Spindle and Flood Coolant System
✓
Renishaw Probe RMP-60
✓
Ball Screw and Independent Servo Motors
