Scharmann Heavycut 1Z/TDV3 150 MM CNC Table Type Horizontal Boring Mill
Model:
Heavy Cut 5-AXIS
Age:
1995
Ref#:
17496
Prestige Equipment is the world's leading provider of Scharmann Heavycut 1Z/TDV3 150 MM CNC Table Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
165-Station Automatic Tool Changer
✓
3-Station Automatic Head Changer
✓
3-Pallet "B-Axis" Shuttle System
✓
Siemens 880M CNC Control
Product Specifications
CAPACITY:
Spindle Diameter
150 MM
Taper In Spindle
#50
Vertical Head Travel, Y
3000 MM
Table Cross Travel, X
3000 MM
Column Infeed Travel, W
2000 MM
Ram Travel, Z........................ 800 MM
800 MM
Spindle Travel, Z-1
700 MM
Ram Cross Section
325 MM x 325 MM
Facing Head Travel, U
150 MM
Right Angle Heads
5 Degrees
Rapids
9982 MM/MIN
Pallet Size (3)
1600 MM x 2300 MM
Spindle Speeds
12-2000 RPM
Pallet Capacity
11975 KG .
Equipped With:
Siemens 880M CNC Control
(3) 1600 MM x 2300 MM Pallets "B Axis" Shuttle System
165-Station Automatic Tool Changer

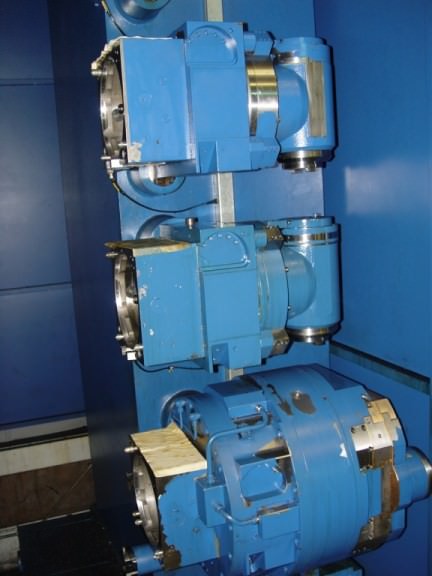

3-Station Automatic Head Changer
2-Right Angle Heads
1-Facing Head w/ 2 #50 Taper Offset Pockets
Thru Spindle Coolant, 435 PSI
Ball Screws With Independent Drives
Full Enclosure, Chip Conveyor & Coolant System
65 KW DC Spindle Drive
Features:
✓
165-Station Automatic Tool Changer
✓
3-Station Automatic Head Changer
✓
3-Pallet "B-Axis" Shuttle System
✓
Siemens 880M CNC Control
