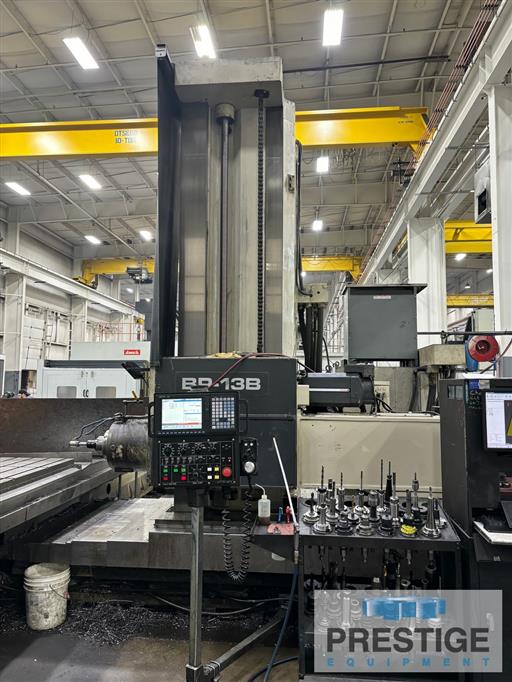

Prestige Equipment is the world's leading provider of Toshiba BP 13B B7 130 MM Plain Table CNC Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
Mitsubishi 700 Series CNC Control (Retrofit 2022)
✓
Large 1499 MM x 3988 MM Plain Table
✓
In-feeding Column
Product Specifications
SPECIFICATIONS:
Spindle Diameter
130 MM
Milling Spindle Diameter
225 MM
Spindle Taper
#50
Vertical Travel, Y-Axis
2304 MM
Table Cross Travel, X-Axis
4000 MM
Spindle Travel, Z-Axis
701 MM
Column Travel, W-Axis
1499 MM
Table Size
4000 MM x 1499 MM
Table Capacity
9979 KG
Spindle Speeds
0-2000 RPM
Floor Space
11405 MM x 5207 MM
Machine Height
4877 MM
Approx. Machine Weight
29483 KG .
Equipped With:
Mitsubishi 700 Series CNC Control (Retrofit 2022)
Ballscrews & Independant Servo Drives
Hardened & Ground Ways Box Ways
1 KW Spindle Drive
Features:
✓
Mitsubishi 700 Series CNC Control (Retrofit 2022)
✓
Large 1499 MM x 3988 MM Plain Table
✓
In-feeding Column
