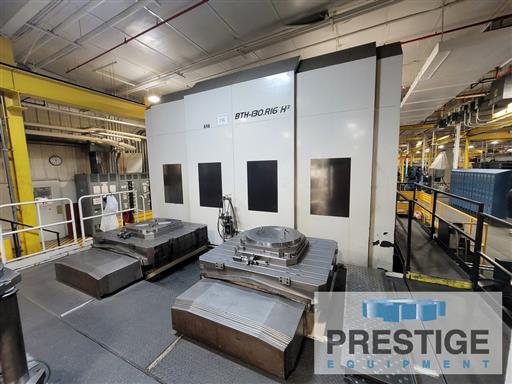

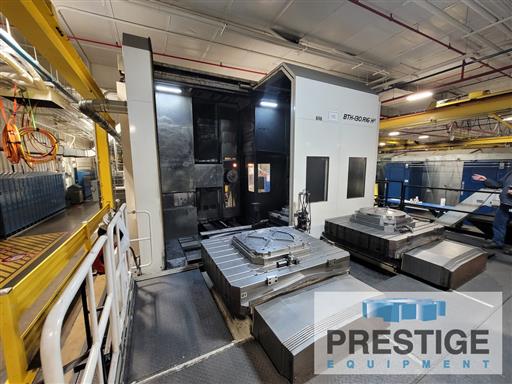

Toshiba BTH-130.R16 CNC Boring Mill w/Pallet Shuttle
Model:
BTH 130.R16
Age:
2009
Ref#:
43665
Prestige Equipment is the world's leading provider of Toshiba BTH-130.R16 CNC Boring Mill w/Pallet Shuttle & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

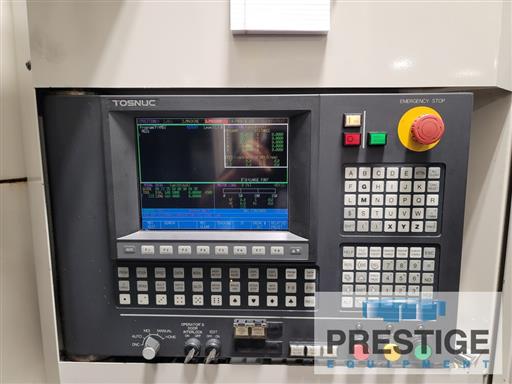

Tosnuc 999 4-Axis CNC Control
✓
90-Station Automatic Tool Changer
✓
Built-In Full B-Axis Rotary Table
✓
(2) 55" x 63" Pallets with Shuttle System
✓
Renishaw Probe
✓
Full Chip & Splash Enclosure
Product Specifications
SPECIFICATIONS:
Spindle Diameter
5.12"
Taper In Spindle
#50
Vertical Travel, Y-Axis
82.5"
Cross Travel, X-Axis
100"
Spindle Travel, Z-Axis
28"
Column Travel, W-Axis
60"
Table Size (Built In B-Axis)
55” x 63”
Table Indexing B-Axis
0.001 Degrees
Spindle Speeds (3-Ranges)
6-4000 RPM
Spindle Motor
30 HP / 40 HP
Rapid Traverse
393.70 IPM
Feeds
.04-141 IPM
Equipped With:
Tosnuc 999 4-Axis CNC Control
90-Station Automatic Tool Changer
Built-In Full B-Axis Rotary Table
(2) 55" x 63" Pallets with Shuttle System
Thru-Spindle Coolant
Full Chip & Splash Enclosure
Renishaw Probe
Chip Conveyor
Features:
✓
Tosnuc 999 4-Axis CNC Control
✓
90-Station Automatic Tool Changer
✓
Built-In Full B-Axis Rotary Table
✓
(2) 55" x 63" Pallets with Shuttle System
✓
Renishaw Probe
✓
Full Chip & Splash Enclosure
