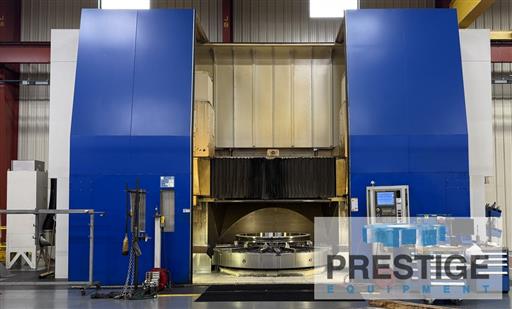

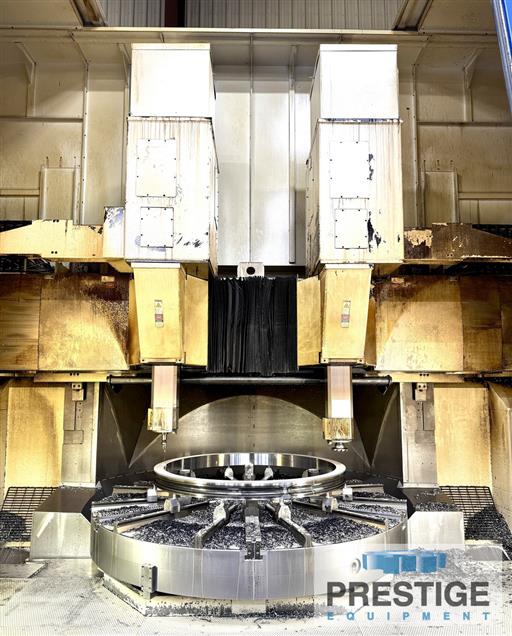

Giddings & Lewis VTC 3000 3048 MM CNC Vertical Turning Center
Model:
VTC3000
Age:
2009
Ref#:
44185
Prestige Equipment is the world's leading provider of Giddings & Lewis VTC 3000 3048 MM CNC Vertical Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

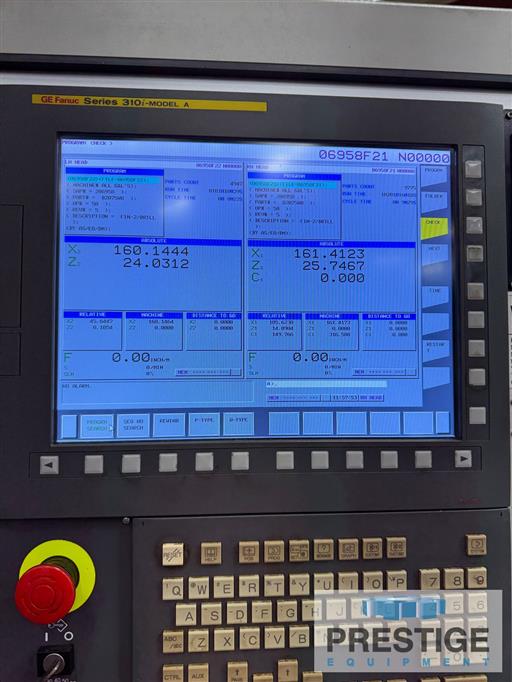

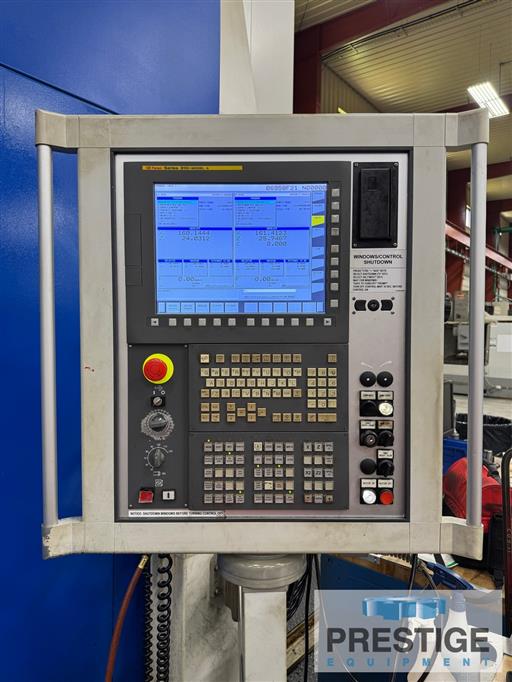

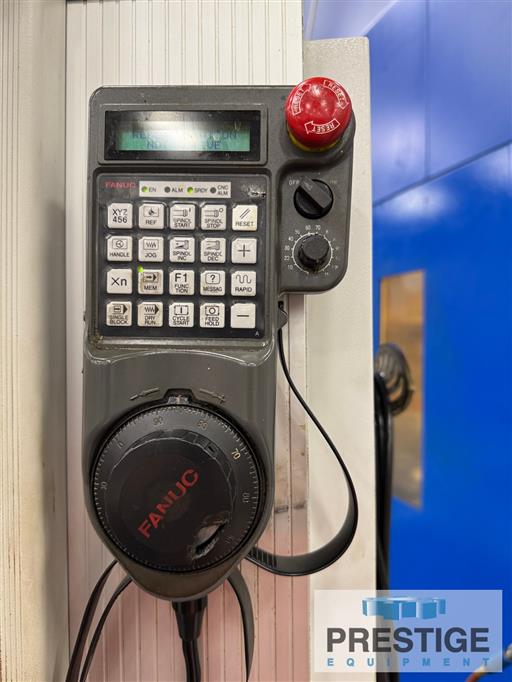

Fanuc 31i CNC Controls
✓

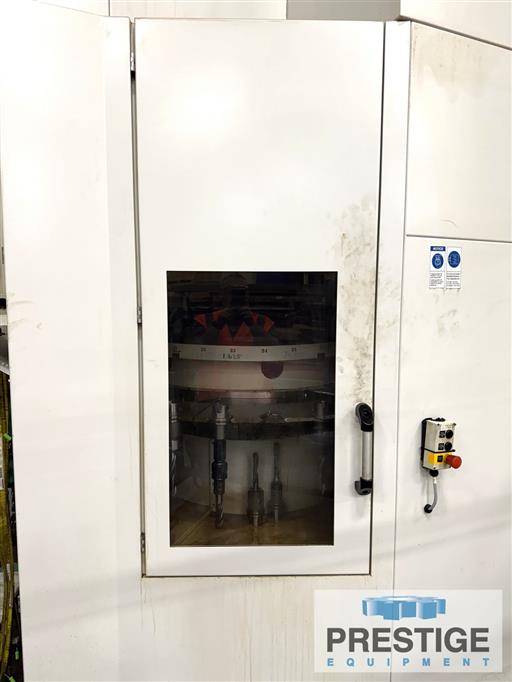

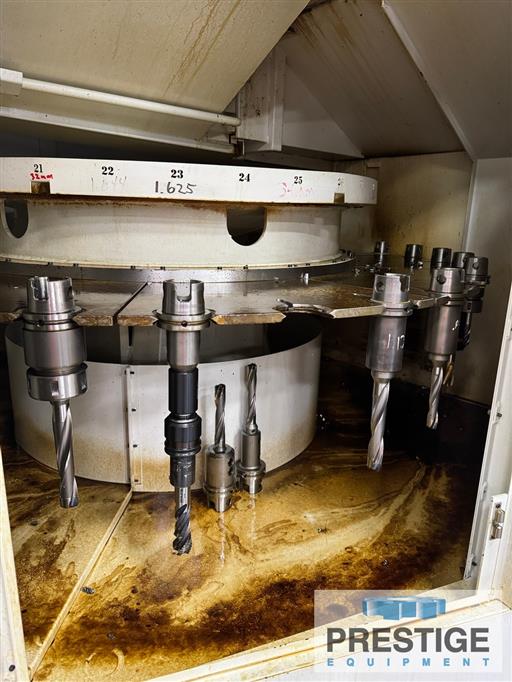

(2) 31-Station Automatic Tool Changer
✓

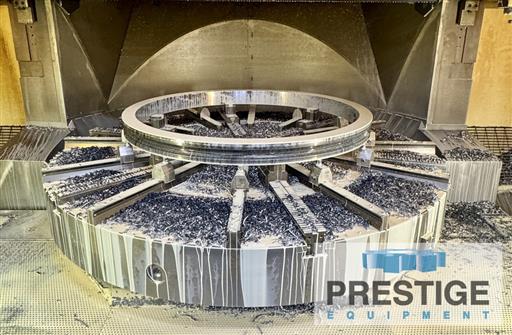

3000 MM Diameter C-Axis Table (Rohm 6-Jaw Chuck)
✓

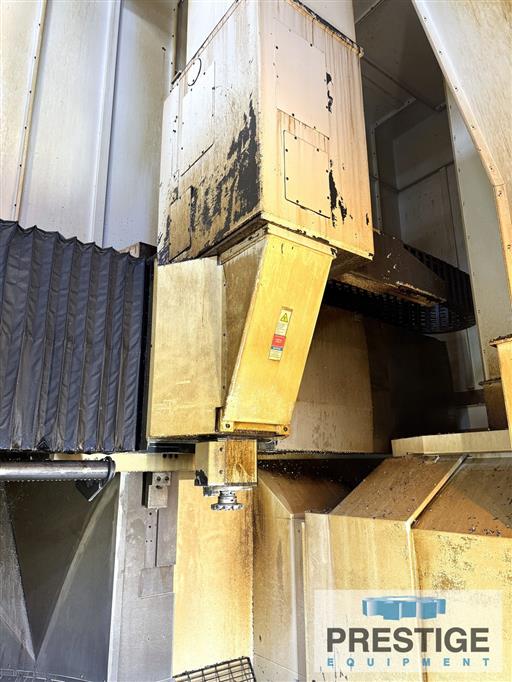

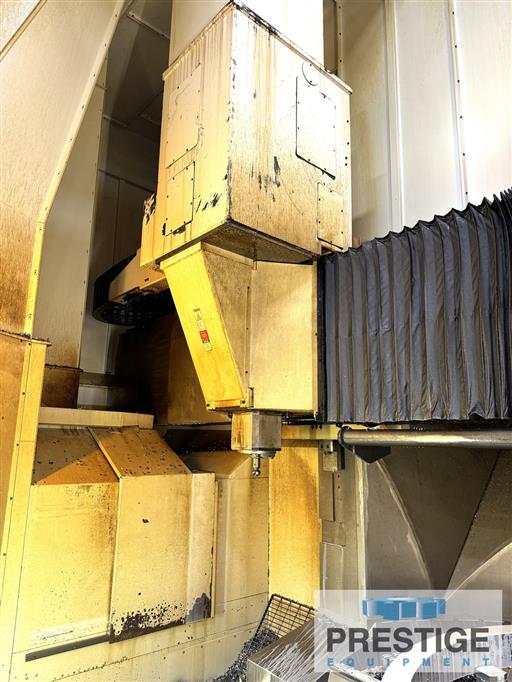

Live Milling Spindle in Both Rams
✓

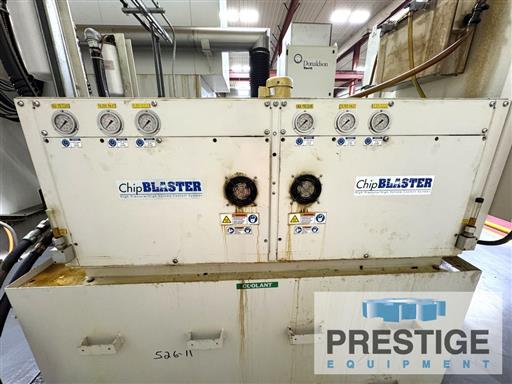

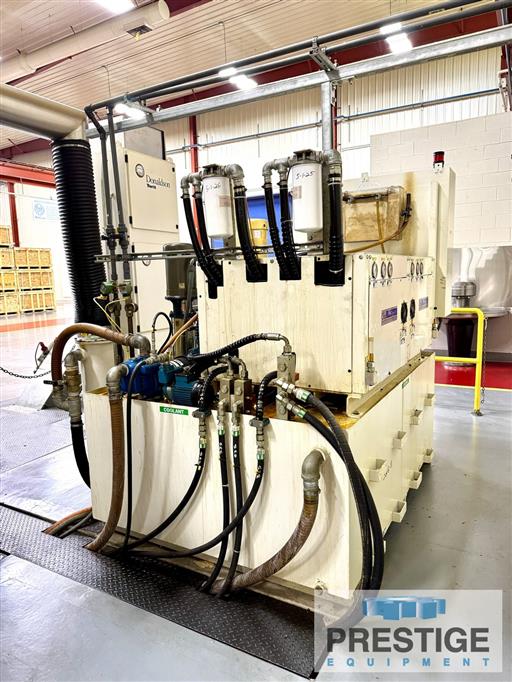

1,000 PSI Thru Spindle Coolant: Chip Blaster TCV50
✓
Full Chip and Splash Enclosure w/ Roof
✓

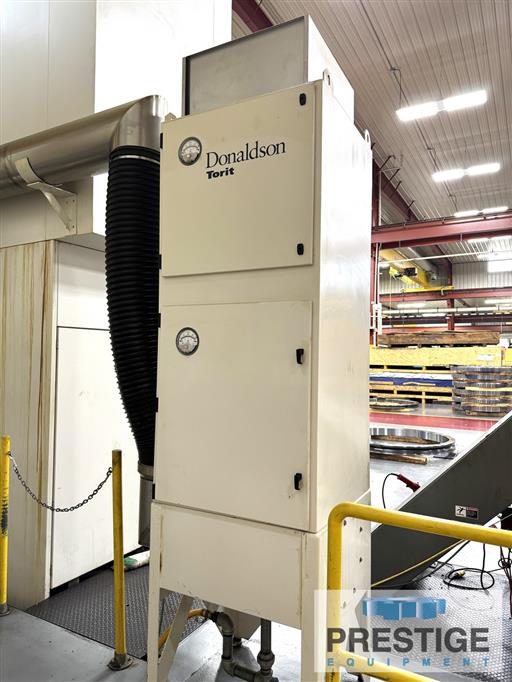

Mist Collector
✓
Chip Conveyor
Product Specifications
CAPACITY:
Table Diameter
3000 MM
Max. Swing / Max. Facing Capacity
3500 MM
Max Height Under Rail, Fixed
1232 MM
Ram Stroke, Z-Axis
750 MM
X-Axis Ram Travel, Right Side
2060 MM
X-Axis Ram Travels, Left Side
2060 MM
Distance Between Ram Centers, Min.
1200 MM
Ram Cross Section
250 MM x 250 MM
Ram, Turning Tool Taper
MAG Latch SL 250
Milling Spindle Taper, Modular
KM-80
Milling Spindle Speeds, Max
4,000 RPM
Milling Spindle Speed Ranges
2
Table Speeds,
1-120 RPM
Table Speed Ranges
2
Table Indexing, C-Axis
.001 degrees
Table, C-Axis
Contouring
Table Torque
111,116 Nm
Table Capacity
59874 KG .
Machine Footprint
14326 MM x 7315 MM
Machine Height
6706 MM
Machine Weight
72575 KG
Equipped With:
Fanuc 31i CNC Controls
(2) 31-Station Automatic Tool Changer
3000 MM Diameter C-Axis Table (Rohm 6-Jaw Chuck)
Live Milling Spindle in Both Rams
1,000 PSI Thru Spindle Coolant: Chip Blaster TCV50
Full Chip and Splash Enclosure w/ Roof
Mist Collector
Chip Conveyor
Standard Options:
Helical Interpolation
Stored Pitch Error Compensation
Rigid Tapping
High Speed Skip
Tool Retract & Recover
Spindle Orientation
Tool Geometry/ear Compensation
Constant Surface Speed Control
Many More Standard and Non Standard Options Included
NOTES:
Inspect Under Power in Midwest Plant!
Features:
✓
Fanuc 31i CNC Controls
✓
(2) 31-Station Automatic Tool Changer
✓
3000 MM Diameter C-Axis Table (Rohm 6-Jaw Chuck)
✓
Live Milling Spindle in Both Rams
✓
1,000 PSI Thru Spindle Coolant: Chip Blaster TCV50
✓
Full Chip and Splash Enclosure w/ Roof
✓
Mist Collector
✓
Chip Conveyor
