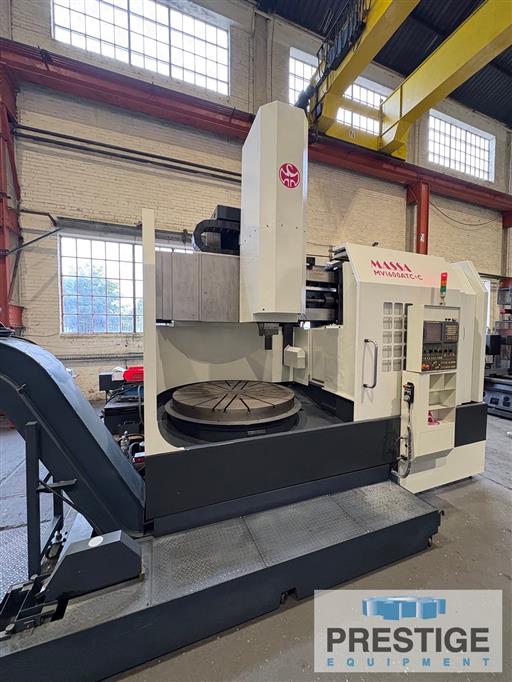

63" You Ji/Massa YV-1600ATC + C CNC Vertical Boring Mill w/ Live Milling
Model:
YV-1600-ATC+C
Age:
2008
Ref#:
45182
Prestige Equipment is the world's leading provider of 63" You Ji/Massa YV-1600ATC + C CNC Vertical Boring Mill w/ Live Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

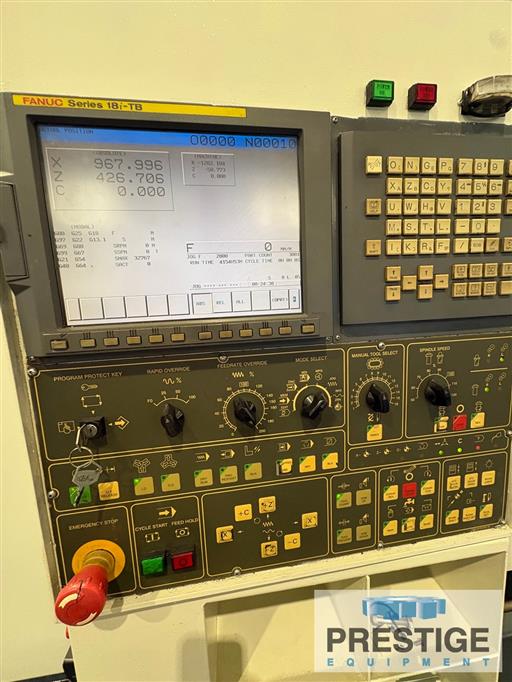

Fanuc 18-TB CNC Control
✓
Ram W/ 16 Station Automatic Tool Changer (8 Turning, 8 Live)
✓
Live Milling Spindle
✓
C-Axis Table
✓
Chip Conveyor
✓
Full Enclosure
Product Specifications
SPECIFICATIONS:
Table Diameter
62.99"
Max. Table Weight
17,600 Lbs.
Maximum Swing
78.74"
Maximum Turning Diameter
70.86"
Maximum Turning Height
47.24"
Table Speeds (2 Speed Gear Box)
2 To 250 RPM
Milling Spindle Taper
BT #50
Ram Vertical Travel Z Axis
35.43"
Ram Horizontal Travel
48.22"
Rail Travel
31.49"
Rapid Traverse (X-Axis)
472.44 IPM
Rapid Traverse (Z-Axis)
393.70 IPM
Main Motor
60 HP
Milling Spindle Horsepower
14.6 HP
Approximate Dimensions
218.5" x 204.7"
Machine Weight
56,980 Lbs.
Equipped With:
Fanuc 18-TB CNC Control
Ram W/ 16 Station Automatic Tool Changer (8 Turning, 8 Live)
Live Milling Spindle
C-Axis Table
Chip Conveyor
Full Enclosure
NOTE:
As part of its overhaul this machine has had complete new spindle bearings to the milling spindle,
new Heidenhain Rotary encoder to Table (C axis), all new cable carriers up top, complete new pneumatics to ATC,
all guards stripped, shot blasted and re-powdered coated plus much more.
Features:
✓
Fanuc 18-TB CNC Control
✓
Ram W/ 16 Station Automatic Tool Changer (8 Turning, 8 Live)
✓
Live Milling Spindle
✓
C-Axis Table
✓
Chip Conveyor
✓
Full Enclosure
