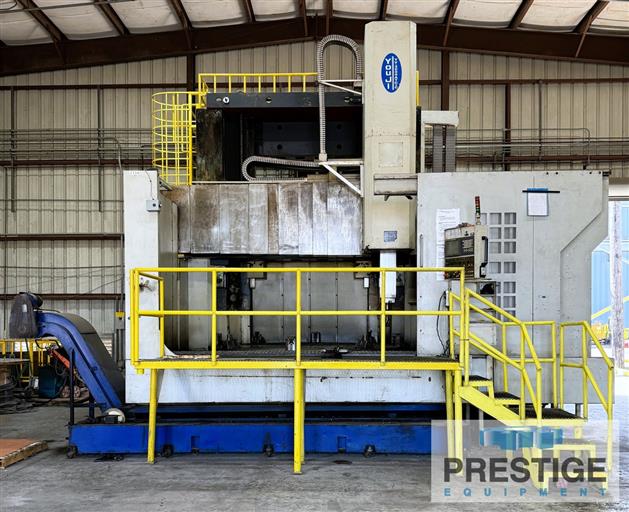

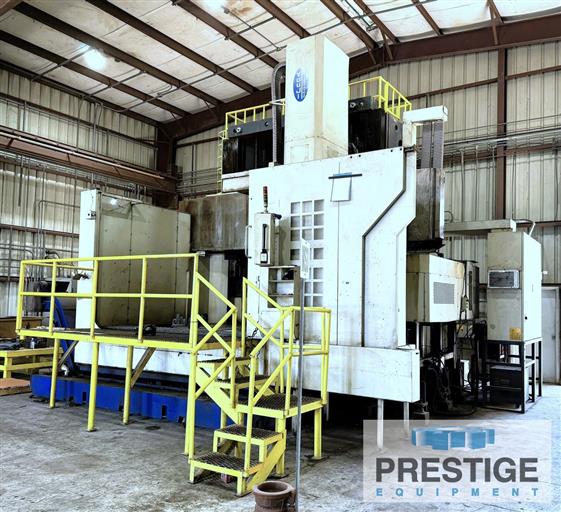

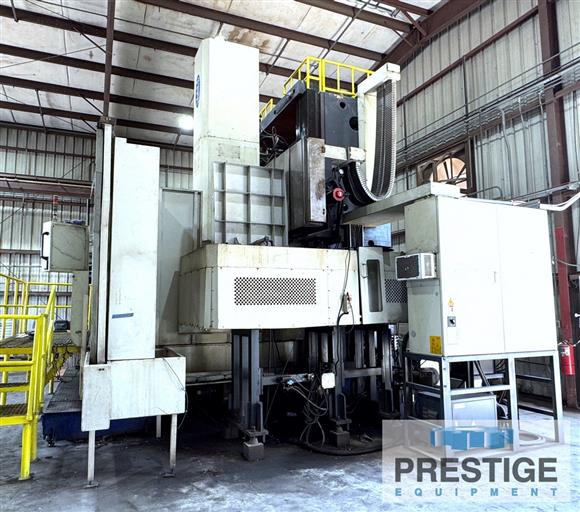

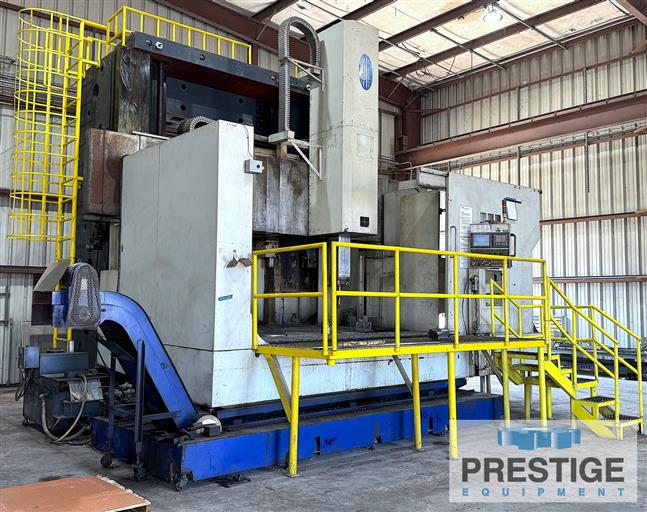

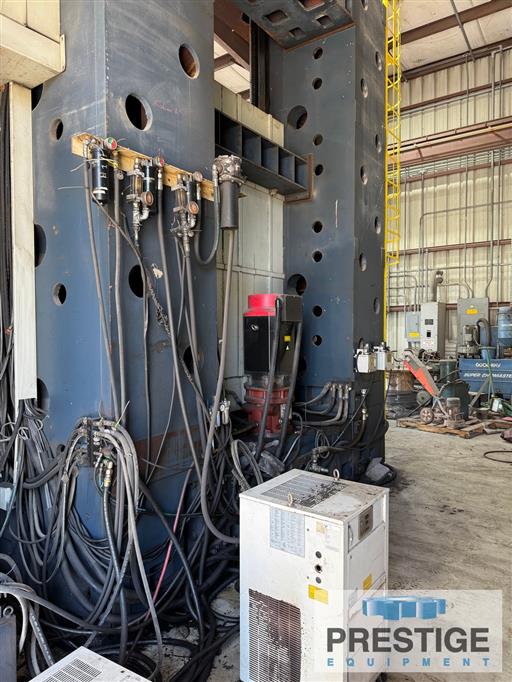

118" YOU JI 3000ATC+C Live Milling CNC Vertical Boring Mill
Model:
YV-3000 ATC+C
Age:
2008
Ref#:
44355
Prestige Equipment is the world's leading provider of 118" YOU JI 3000ATC+C Live Milling CNC Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Live Milling
✓
Ram with 32 Station ATC
✓
Fanuc 18iTB CNC Control
Product Specifications
CAPACITY:
Table Diameter
118.11"
Maximum Turning Diameter
133.8"
Maximum Swing
137.79"
Maximum Turning Height
90.55"
Maximum Table Weight Capacity
44,000 Lbs
Vertical Travel Of Ram, Z-Axis
59.05"
Horizontal Rail Head Travel, X-Axis
-59.05", +72.8"
Cross Rail Vertical Travel
47.24"
Table Speed, 2-Ranges
1-120 RPM
C-Axis Contouring
0.001 Degree
Live Spindle Speeds
1-2400 RPM
Live Spindle Speed Ranges
2 Programable
Cutting Feed Rate
0.039-78.74 RPM
Rapid Feed Rates (X/Z)
394 IPM
Main Table Motor
100 HP
Live Spindle Motor
20 HP
Equipped With:

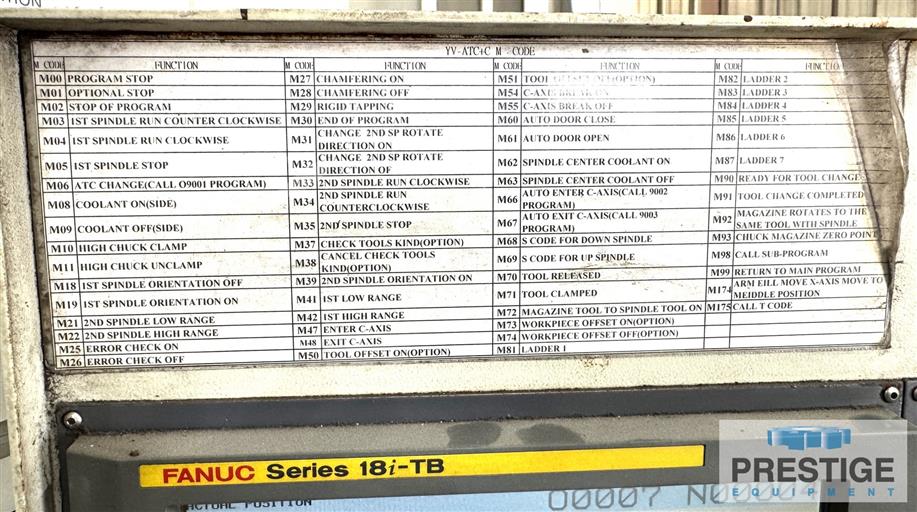

Fanuc 18iTB CNC Control

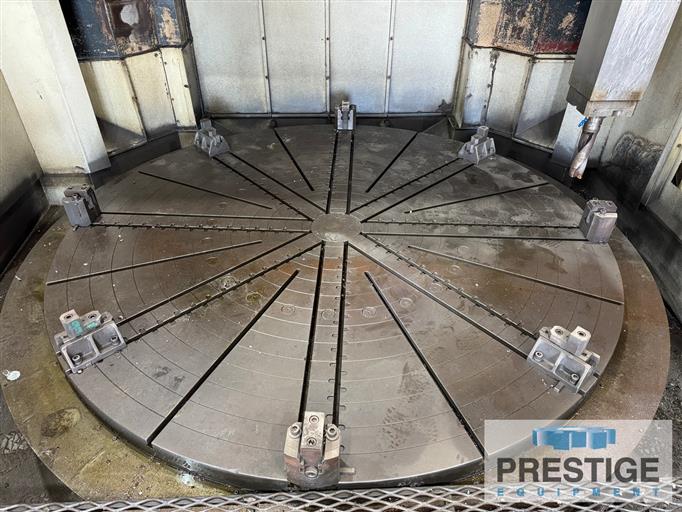

118.11" Dia. Face Plate Type Chuck w/ 4-Face Plate Jaws
C-Axis Table With Live Milling

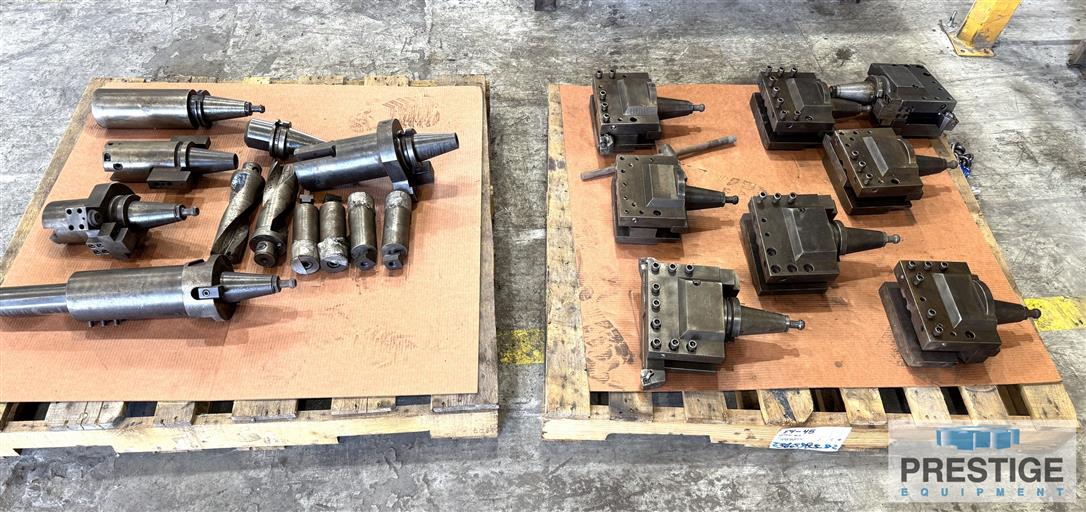

32-Position Automatic Tool Changer
ZF Dual Speed Gearbox for Table & Live Milling
Chip Conveyor
100 HP Table Motor
Features:
✓
Live Milling
✓
Ram with 32 Station ATC
✓
Fanuc 18iTB CNC Control
