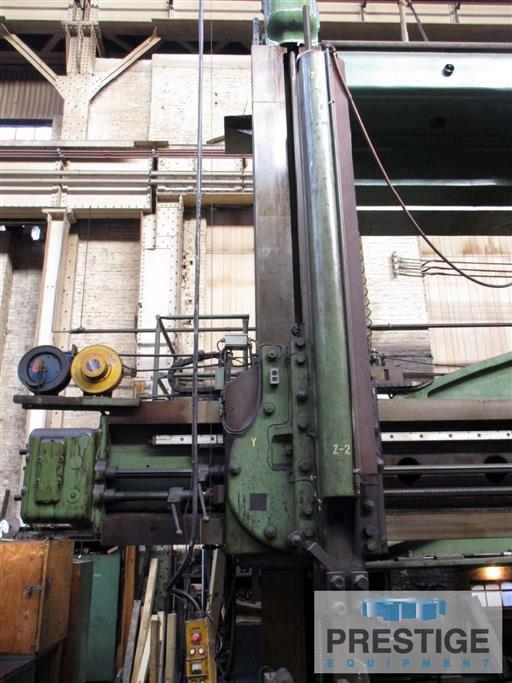

Prestige Equipment is the world's leading provider of 238" Sellers Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Aci-Rite 300Sc 4xT Digital Readout
✓
2 - Vertical Swiveling Rams
✓
Duplimatic E 360 Tracing Attachment
Product Specifications
SPECIFICATIONS:
Table Diameter
238"
Maximum Swing
244"
Maximum Height Under Tool Heads
148.5"
Maximum Height Under Cross Rail
150.5"
Ram Stroke
92.75"
Table Speeds
.097 - 11.6 RPM
Weight Capacity
95 Ton
Feed Rate
.010 - 1.68 IPR
Table Motor
125 HP
Equipped With:
2 - Vertical Swiveling Rams
Full Pendant Controls For Each Ram
238" T-Slotted Table w/4-Top Chuck Jaws
Duplimatic E 360 Tracing Attachment
Power Rail Adjustment
125 HP Table Drive DC
Features:
✓
Aci-Rite 300Sc 4xT Digital Readout
✓
2 - Vertical Swiveling Rams
✓
Duplimatic E 360 Tracing Attachment
