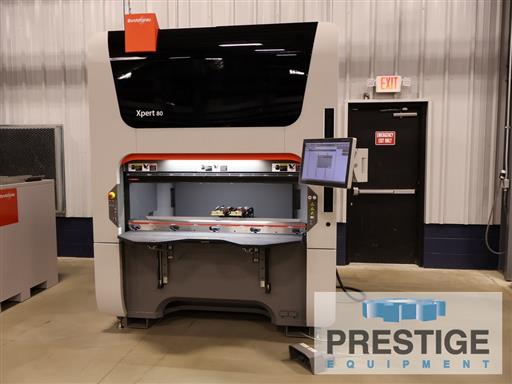

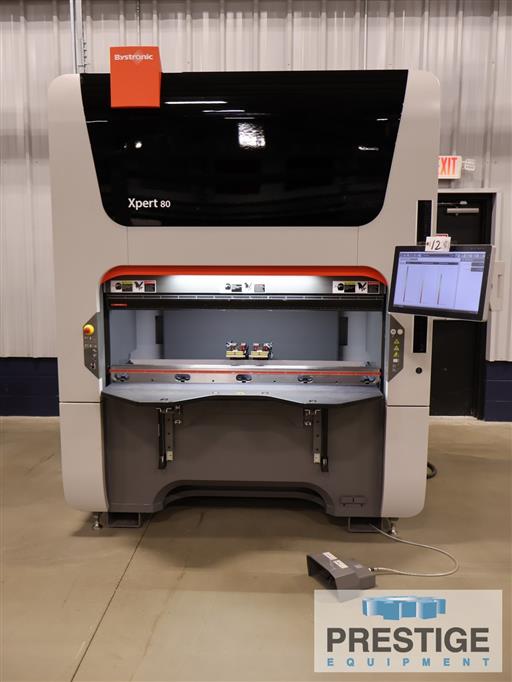

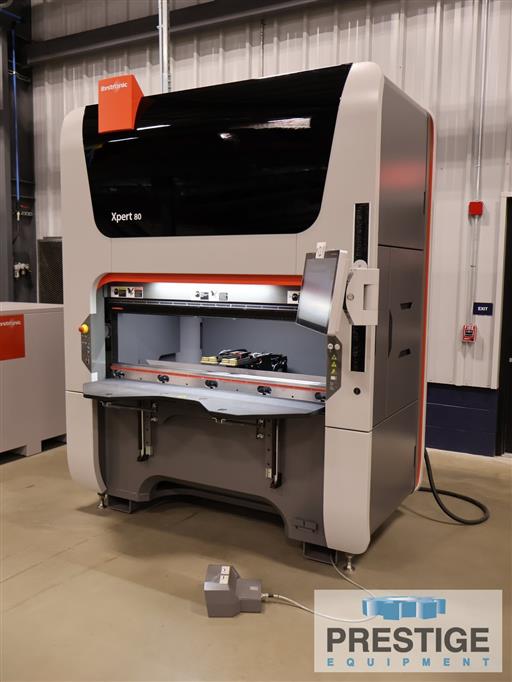

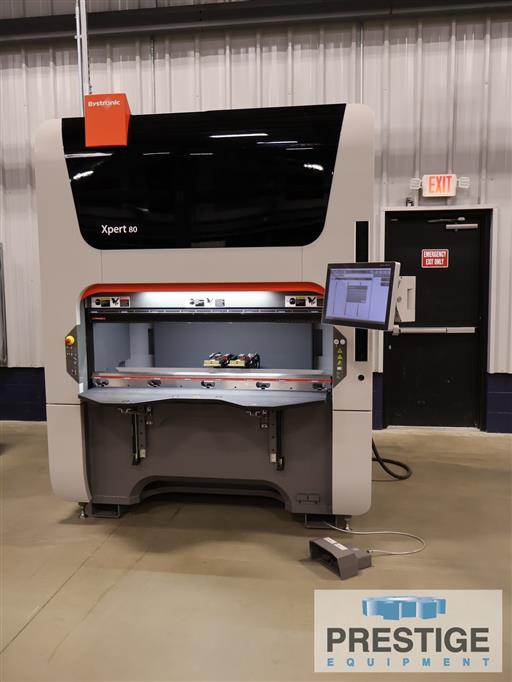

Bystronic Xpert 80/1530 88 Ton CNC Press Brake
Model:
Xpert 80/1530
Age:
2022
Ref#:
44115
Prestige Equipment is the world's leading provider of Bystronic Xpert 80/1530 88 Ton CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓

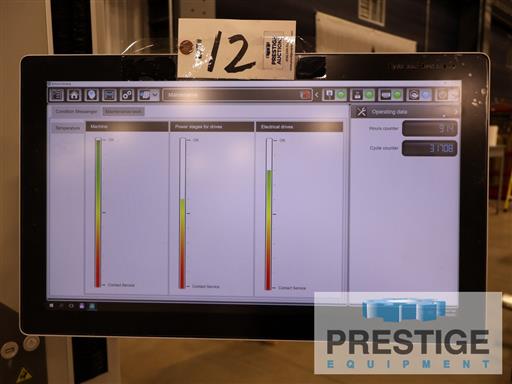

Bystronic ByVision 3D CNC Control with 22" LCD Screen
✓
OPC Interface Bending
✓
Automatic Tool Protection
✓
Programmable Ram Depth (Y1,Y2)
✓

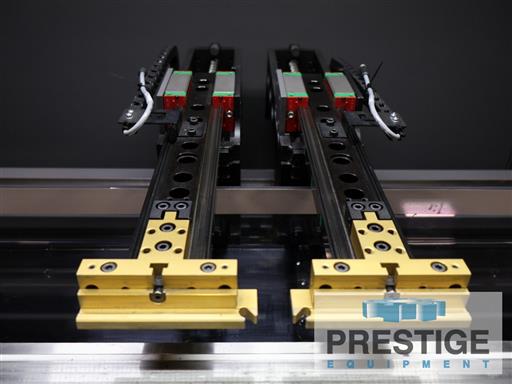

6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
✓
Optical Bend Guiding System with Upper Tool Clamping
✓
Optical Bend Guiding System Lower Tool Clamping

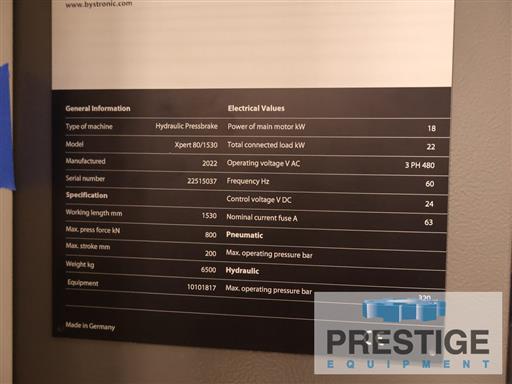

Product Specifications
CAPACITY:
Maximum Tonnage Capacity
80 Ton
Overall Working Length
........... 60.2"
Distance Between Housings
61.8"
Open Height
20.3"
Throat Depth
"
Stroke Length
7.39"
X-Axis Travel
11.8"
X-Axis Speed
3,543 IPM
R-Axis Travel
3.9"
R-Axis Speed
1,181 IPM
Z-Axis Travel
57.3"
Z-Axis Speed
4724 IPM
Maximum Y-Axis Approach Speed
591 IPM
Maximum Y-Axis Working Speed
59 IPM
Y-Axis Positioning Accuracy
0.00016"
Main Motor
20 HP
Approximate Dimensions
80" x 67" x 105"
Approximate Weight
14,330 Lbs.
Equipped With:
Bystronic ByVision 3D CNC Control with 22" LCD Screen
OPC Interface Bending
Material Curve Generator
Dynamic Drive System (DDS) with Energy Saver
Automatic Tool Protection
Programmable Ram Depth (Y1,Y2)
6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
Ergo LED Illumination Pack
Ergo Arm Support
Ergo Tool/Bend Equipment Cabinets/Shelves Integrated on Each Side of Machine Housing
Optical Bend Guiding System with Upper Tool Clamping
Optical Bend Guiding System Lower Tool Clamping
HOURS:
NOTE:
Inspect in Plant Under Power
Auction Message:
To be sold at the Fossil Industries Online Auction June 17th, 2025
View The Auction
Features:
✓
Bystronic ByVision 3D CNC Control with 22" LCD Screen
✓
OPC Interface Bending
✓
Automatic Tool Protection
✓
Programmable Ram Depth (Y1,Y2)
✓
6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
✓
Optical Bend Guiding System with Upper Tool Clamping
✓
Optical Bend Guiding System Lower Tool Clamping
