Bystronic Xpert Pro 320/4300 357 Ton x 3.96 M 8-Axis CNC Press Brake
Model:
Xpert Pro 320/4300 Extended
Age:
2022
Ref#:
44116
Prestige Equipment is the world's leading provider of Bystronic Xpert Pro 320/4300 357 Ton x 3.96 M 8-Axis CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓

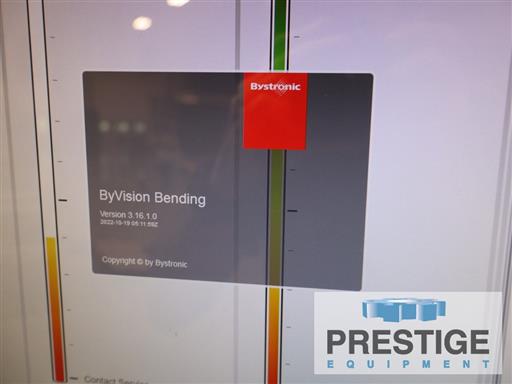

Bystronic Byvision CNC Control w/ 559 MM Full HD Display and Touch
✓
6-Axis CNC Back Gauge (X1,X2,R1,R2,Z1,Z2)
✓

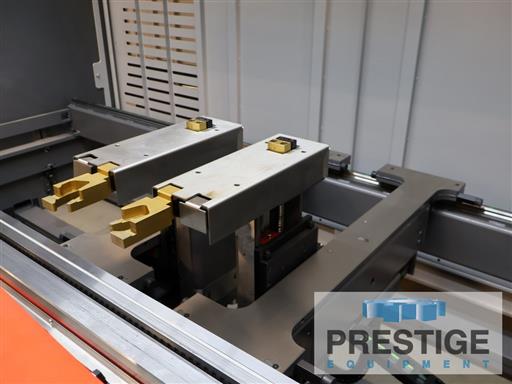

Upper Tool Clamping Type RA-A Pro
✓
Hydraulic Lower Tool Clamping
✓

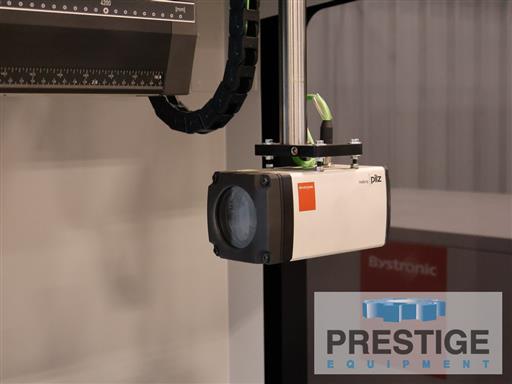

Fast Bend Safety System with Automatic Height Adjustment
✓
Optical Bend Guiding System Upper Tool Clamping
✓
Laser Angle Measuring System
✓
Performance Edition Speed Equipment
✓

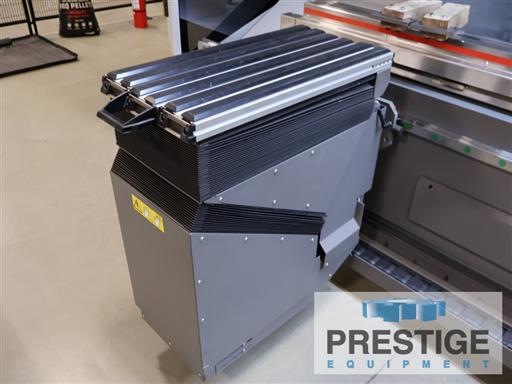

Dynamic Sheet Support

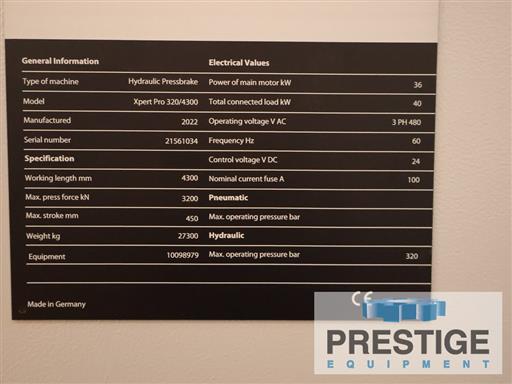

Product Specifications
CAPACITY:
Maximum Tonnage Capacity
352 Ton
Overall Length Of Bed & Ram
4300 MM
Distance Between Housings
3752 MM
Open Height
838 MM
Stroke
450 MM
Throat Depth
401 MM
Maximum Back Gauge Range
1052 MM
X-Axis Travel
602 MM
X-Axis Speed
39014 MM/MIN
R-Axis Travel
251 MM
R-Axis Speed
12014 MM/MIN
Z-Axis Travel
2896 MM
Z-Axis Speed
71999 MM/MIN
Main Motor, 480 V/3/60
36 KW
Approximate Dimensions
5260 MM x 1999 MM x 3749 MM
Approximate Weight
27300 KG .
Equipped With:
Bystronic Byvision CNC Control w/ 559 MM Full HD Display and Touch
6-Axis CNC Back Gauge (X1,X2,R1,R2,Z1,Z2)
Upper Tool Clamping Type RA-A Pro
Hydraulic Lower Tool Clamping
Fast Bend Safety System with Automatic Height Adjustment
LED High Performance of the Working Area
Optical Bend Guiding System Upper Tool Clamping
Laser Angle Measuring System
Performance Edition Speed Equipment
Dynamic Sheet Support
Heat Exchanger
Oil Cooling Unit

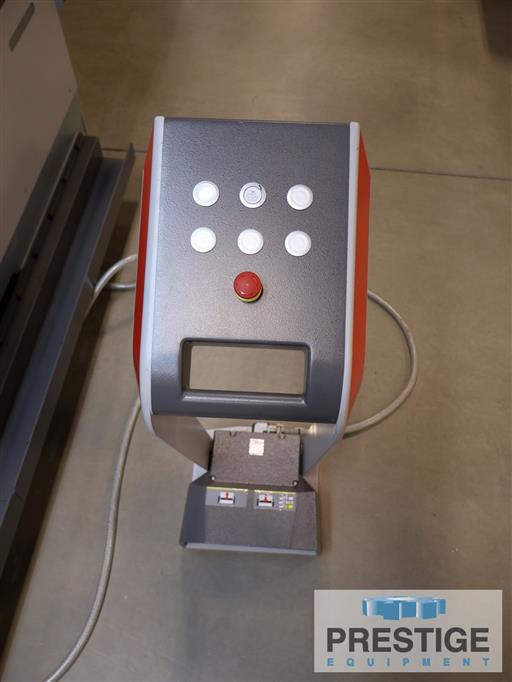

Pedestal with Electric Footswitch

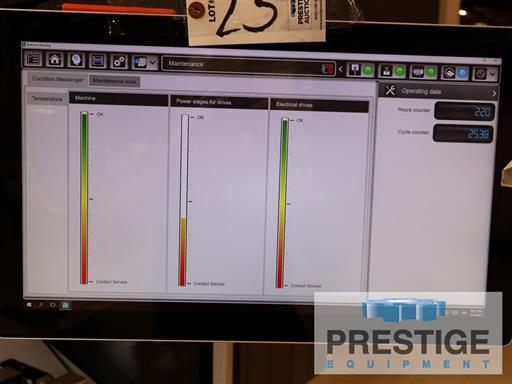

HOURS:
220, Like New
NOTE:
Inspect in Plant Under Power
Auction Message:
To be sold at the Fossil Industries Online Auction June 17th, 2025
View The Auction
Features:
✓
Bystronic Byvision CNC Control w/ 559 MM Full HD Display and Touch
✓
6-Axis CNC Back Gauge (X1,X2,R1,R2,Z1,Z2)
✓
Upper Tool Clamping Type RA-A Pro
✓
Hydraulic Lower Tool Clamping
✓
Fast Bend Safety System with Automatic Height Adjustment
✓
Optical Bend Guiding System Upper Tool Clamping
✓
Laser Angle Measuring System
✓
Performance Edition Speed Equipment
✓
Dynamic Sheet Support
