Uni Tech 2610H Sinker EDM w/ Dual Rams
Model:
2610H Dual Ram
Age:
2019
Ref#:
44607
Prestige Equipment is the world's leading provider of Uni Tech 2610H Sinker EDM w/ Dual Rams & machine tools & fabricating equipment. Take a look at our wide selection of new and used Ram / Sinker Type CNC EDM for sale.
Product Specifications
Features:
✓
Dual Unitech U100C CNC Controls
✓
Dual Remote Handwheel Control
✓
Dual Rams
✓
Rotational C axis head
✓

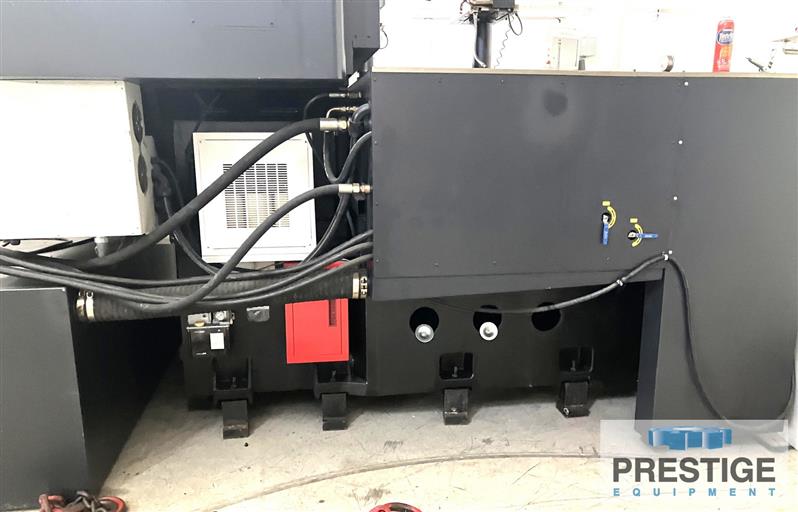

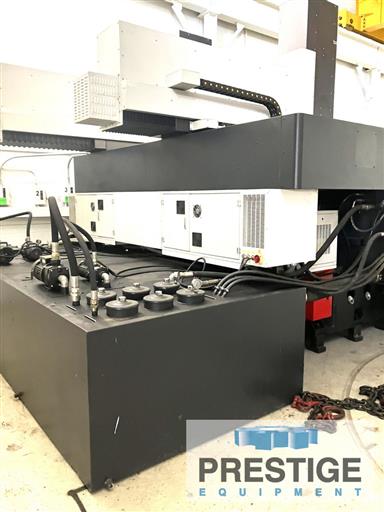

Dielectric Tanks, Pumps, Filters
✓

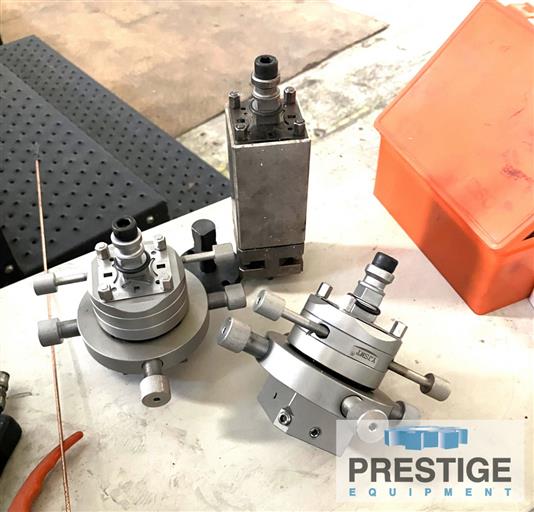

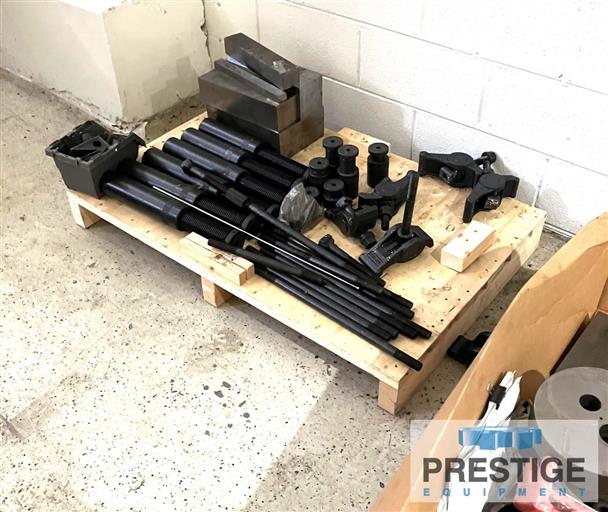

Tooling
Product Specifications
SPECIFICATION:
Work Table Dimension
110.23" x 51.18"
Work Tank Dimension
137.80" x 66.93" x 31.49"
X1 & X2 Stroke Length
70.87"
Y-axis Stroke Length
39.37"
Z-axis Stroke Length
23.62"
Distance between chuck & table
53.15"
Capacity of Tank
1,320 Gallons
Max. Electrode Weight
881.85 lbs.
Max. Workpiece Weight
33,069 lbs.
Max. Height
151.97"
Machine Electrics
220V 3 Phase 60 Hz 10KVA
Machine Net Weight
39,683 lbs.
Equipped With:
Dual Unitech U100C CNC Controls
Dual Remote Handwheel Control
Dual Rams
Rotational C axis head
Dielectric Tanks, Pumps, Filters
Tooling
Features:
✓
Dual Unitech U100C CNC Controls
✓
Dual Remote Handwheel Control
✓
Dual Rams
✓
Rotational C axis head
✓
Dielectric Tanks, Pumps, Filters
✓
Tooling
