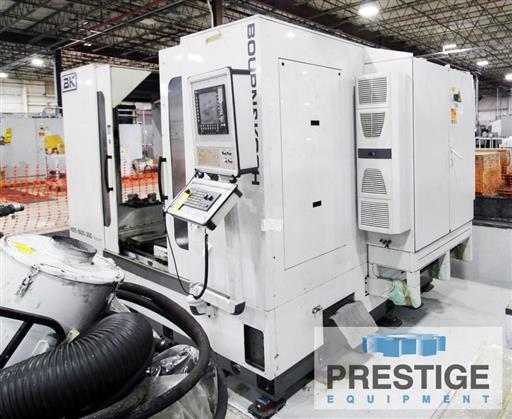

Bourn & Koch HDS1600-300 CNC Herringbone Gear Shaper
Model:
HDS1600-300
Age:
2012
Ref#:
43475
Prestige Equipment is the world's leading provider of Bourn & Koch HDS1600-300 CNC Herringbone Gear Shaper & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Gear Shapers for sale.
Product Specifications
Features:
✓
Siemens 9-Axis CNC Control
✓
Inch/Metric Operation
✓
Chip Conveyor
✓
CNC Crowning and Taper For External Gears
✓
Mist Collector
Product Specifications
CAPACITY:
Nominal Pitch Diameter, External
62.99"
Maximum Face Width, w/ Both Heads
23.62"
Maximum Face Width, Single Face
11.81"
Maximum Diametral Pitch, Spur
2 DP
Maximum Diametral Pitch, Helical
2 DP
Minimum Gear Pitch
8 DP
Maximum Helix Angle
40 Degrees
Worktable Diameter
44.09"
Worktable Bore
9.975"
Work Spindle Speeds
1-25 RPM
X-Axis Travel
34"
Z-Axis Travel
13"
Cutter Spindle Stroking Range
12-150 SPM
Cutter Spindle Diameter
4.72"
Cutter Pitch Diameter, Max
8.26"
Cutter Pitch Diameter, Min
5.9"
Cutter Fit, Max
3.54"
Cutter Fit, Min
2.755"
Minimum Center Distance
4.0"
Overall Dimensions
191" L x 144" W x 132" H
Machine Weight
120,000 Lbs.
Equipped With:
Siemens 9-Axis CNC Control
Inch/Metric Operation
CNC Crowning and Taper For External Gears
Lubrication System
Coolant System
Full Enclosure
Mist Collector
Features:
✓
Siemens 9-Axis CNC Control
✓
Inch/Metric Operation
✓
Chip Conveyor
✓
CNC Crowning and Taper For External Gears
✓
Mist Collector
