Giddings & Lewis 72" High Column CNC Vertical Boring Mill
Model:
Series 514
Age:
1998
Ref#:
30175
Prestige Equipment is the world's leading provider of Giddings & Lewis 72" High Column CNC Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
High Column Option 96" Under Cross Rail
✓
Ram W/ 12 Station Automatic Tool Changer
✓
72" 4-Jaw Independent Manual Chuck
✓
G & L 8000 CNC Control
Product Specifications
Serial Number
514-0046-98
SPECIFICATIONS:
Table Diameter
72"
Maximum Turning Diameter
84"
Maximum Height Under Cross Rail
96"
Ram Vertical Travel, X-Axis
62"
Vertical Travel of Cross Rail
54"
Ram Travel, Left of Center
54.5"
Ram Travel, Right of Center
48.5"
Ram Cross Section
7.875"
Table Speeds, Inf. Variable
2 Ranges
Table Speeds, High Range
9 to 200 RPM
Table Speeds, Low Range
2-50 RPM
Rapid Traverse, Rail Head X & Z Axis
400 IPM
Feed Rates, Variable X & Z Axes
.01 to 150 IPM
Rail Elevating Rate
30 IPM
Equipped With:

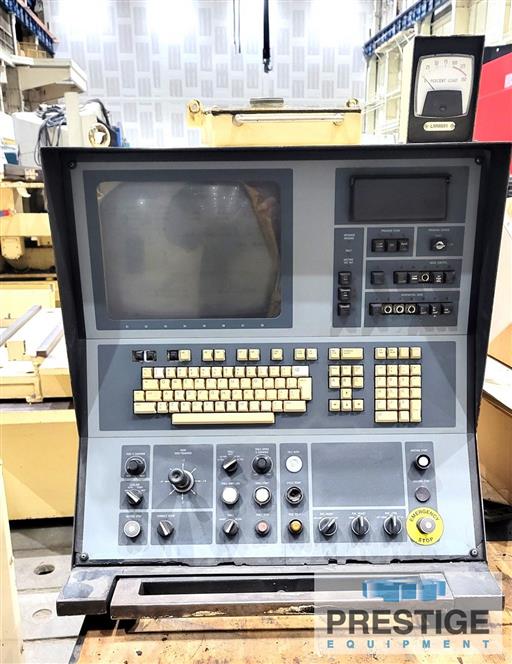

Giddings & Lewis 8000 CNC Control
12-Station Automatic Tool Changer
72" 4-Jaw Independent Manual Chuck
Power Draw Bar Ram w/#60 ANSI B5.50 Taper
Elevating Cross Rail
Extended Column Height
Flood Coolant System
Adjustable Cross Rail With Power Elevation and Clamping
Hardened Ways on Cross Rail
Independent AC Electric Servo Feed Drives
3" Diameter Ball Screws
Inductosyn Scale Feedback
Programmable Rail Height Adjustment
Automatic Rail Leveling
Numeriprobe In Process Gauging
Numeridapt Adaptive Control
Tool Tip Probing
Chip Conveyor with Elevator
75 HP Main Motor
NOTE:
Inspect In Our Philadelphia PA Warehouse
Also Available:
2-Pallet Shuttle System w/ additional 72" 4-Jaw Chuck
Features:
✓
High Column Option 96" Under Cross Rail
✓
Ram W/ 12 Station Automatic Tool Changer
✓
72" 4-Jaw Independent Manual Chuck
✓
G & L 8000 CNC Control
