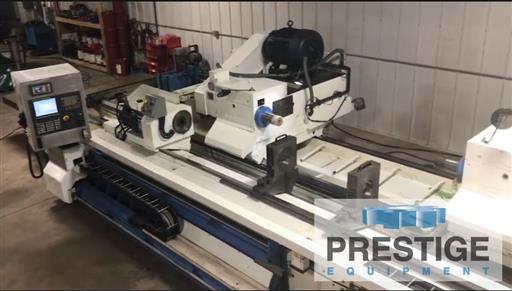

NAXOS 24.6" x 191" CNC MULTI-AXIS CYLINDRICAL GRINDER
Model:
MULTI-AXIS
Age:
2013
Ref#:
32552
Prestige Equipment is the world's leading provider of NAXOS 24.6" x 191" CNC MULTI-AXIS CYLINDRICAL GRINDER & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Cylindrical Grinders for sale.
Product Specifications
Features:
✓
Fanuc Oitd Latest control with graphics for both spindles
✓
Communication ports, USB/ RS232/PCMI
✓
MPG (manual pulse generator)
✓
Digital load meters for both grinding spindles
✓
SBS Balancing system in process for both grinding wheel heads
✓
Fanuc servo motors for each axis
✓
Ballscrews each axis
✓
Fagor scales for each axis with positive air pressure
✓
Yaskawa work head servo motor
✓
New electrical cabinet all new components and wiring to all machine motors and accessories
✓
New spindle motors for each grinding head
✓
Coolant tank with paper filtration system
✓
Balancing stand with arbor
✓
(4) four wheel hubs
✓
(2) pillow blocks
✓
Several workhead drive units
✓
Lifting bracket for removal of grinding wheel
✓
Attachment for rough grinding of wheels
✓
Attachment for special dressing applications
✓
Hydraulic unit for each head
✓
Way lubrication system
✓
Air assist for tailstock body travel
✓
Tailstock with taper adjustment, power quill feed, tailstock operator station with forward/reverse and e-stop for quill
✓
Automatic diamond dresser probe (compensate for wear in diamond)
✓
Automatic wheel probe (to read and compensate for width, diameter, taper of wheel)
✓
Automatic dresser for straight wheel
✓
Automatic taper wheel grinding wheel
Product Specifications
CAPACITY:
Max swing
24.78"
Max distance
191"
Max travel for z axis (table)
198"
Max grinding distance for main wheel
178"
Infeed travel, X axis
28.38"
Max. travel for z axis second spindle . #2 107"
Grinding Wheel Motors, 2
60hp (Drives limited to 40hp)
Apprx. weight between centers
Tailstock quill diameter
Tailstock stock body
Tailstock body
Tailstock quill taper
Approx. floor space, L x D
Approx. weight
66,000 lbs
Electrical requirement
Equipped With:
Fanuc Oitd Latest control with graphics for both spindles
Communication ports, USB/ RS232/PCMI
MPG (manual pulse generator)
Digital load meters for both grinding spindles
SBS Balancing system in process for both grinding wheel heads
Fanuc servo motors for each axis
Ballscrews each axis
Fagor scales for each axis with positive air pressure
Yaskawa work head servo motor
New electrical cabinet all new components and wiring to all machine motors and accessories
New spindle motors for each grinding head
Coolant tank with paper filtration system
Balancing stand with arbor
(4) four wheel hubs
(2) pillow blocks
Several workhead drive units
Lifting bracket for removal of grinding wheel
Attachment for rough grinding of wheels
Attachment for special dressing applications
Hydraulic unit for each head
Way lubrication system
Air assist for tailstock body travel
Tailstock with taper adjustment, power quill feed, tailstock operator station with forward/reverse and e-stop for quill
Automatic diamond dresser probe (compensate for wear in diamond)
Automatic wheel probe (to read and compensate for width, diameter, taper of wheel )
Automatic dresser for straight wheel
Automatic taper wheel grinding wheel
Note:
This machine was completely remanufactured to new specifications in 2013 and installed in 2014. It was stripped down to the bare casting, table/base/wheel heads/work head and tailstock and the second z axis ways were fit and rescrapped. New electrical cabinet with all new wiring to the machine and new all components, hydraulic lines, air lines and new cable carriers were added. New Marathon 60HP motors for both grinding wheel heads. (The drives in the cabinet are set for 40 Hp)The spindle drives in the cabinet are Yakawa built in the USA along with the workhead drive servo motor. All new ballscrews and nuts with support brackets for stabilizing the screw under operation. The machine has a new balancing system which monitors both spindle grinding heads constantly during operation and automatically makes corrections if needed.
Apprx. cutting time 2,980 hours
Features:
✓
Fanuc Oitd Latest control with graphics for both spindles
✓
Communication ports, USB/ RS232/PCMI
✓
MPG (manual pulse generator)
✓
Digital load meters for both grinding spindles
✓
SBS Balancing system in process for both grinding wheel heads
✓
Fanuc servo motors for each axis
✓
Ballscrews each axis
✓
Fagor scales for each axis with positive air pressure
✓
Yaskawa work head servo motor
✓
New electrical cabinet all new components and wiring to all machine motors and accessories
✓
New spindle motors for each grinding head
✓
Coolant tank with paper filtration system
✓
Balancing stand with arbor
✓
(4) four wheel hubs
✓
(2) pillow blocks
✓
Several workhead drive units
✓
Lifting bracket for removal of grinding wheel
✓
Attachment for rough grinding of wheels
✓
Attachment for special dressing applications
✓
Hydraulic unit for each head
✓
Way lubrication system
✓
Air assist for tailstock body travel
✓
Tailstock with taper adjustment, power quill feed, tailstock operator station with forward/reverse and e-stop for quill
✓
Automatic diamond dresser probe (compensate for wear in diamond)
✓
Automatic wheel probe (to read and compensate for width, diameter, taper of wheel)
✓
Automatic dresser for straight wheel
✓
Automatic taper wheel grinding wheel
