Haas ST30 CNC Turning Center
Model:
ST-30
Age:
2017
Ref#:
44679
Prestige Equipment is the world's leading provider of Haas ST30 CNC Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓
Haas CNC Control
✓

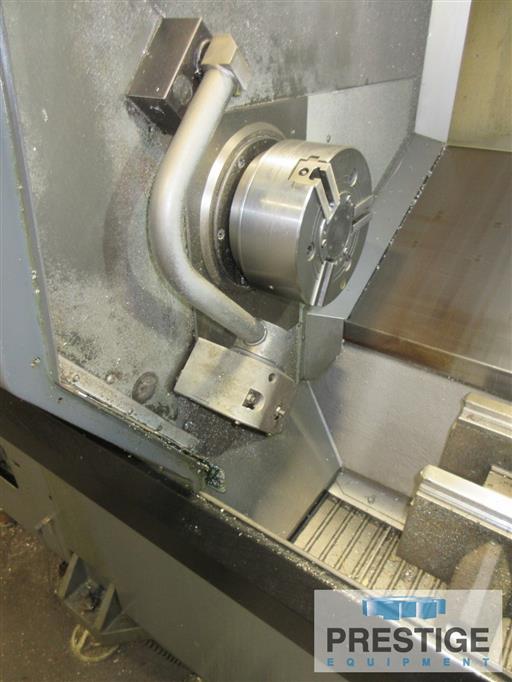

254 MM Chuck
✓

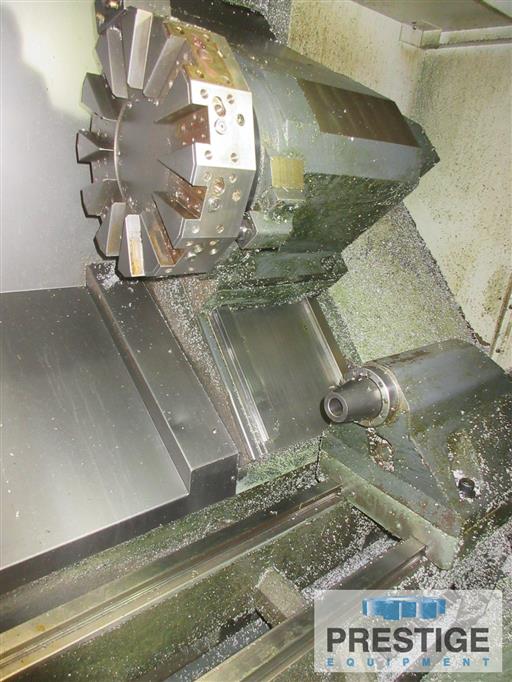

12-Position Auto Indexing Turret
✓
Tool Setter
✓
Tailstock
✓

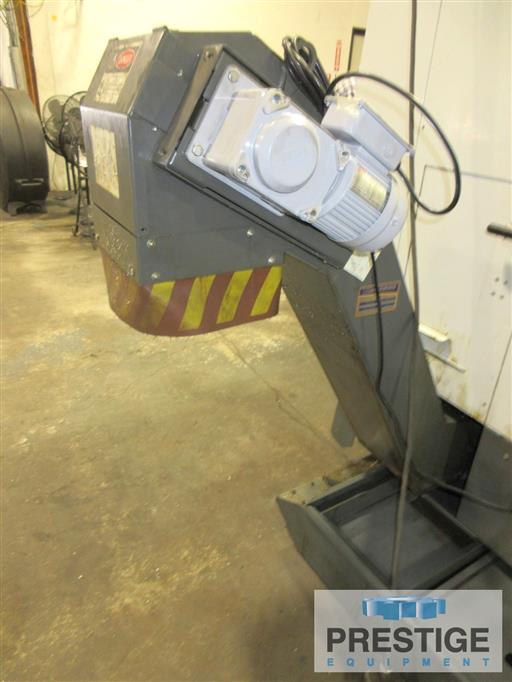

Chip Conveyor
Product Specifications
CAPACITIES:
Maximum Part Swing
533 MM
Maximum Cutting Length
826 MM
Distance Between Centers
826 MM
Bar Capacity
76 MM
X-Axis Travel
239 MM
Z-Axis Travel
826 MM
Rapids, X & Z Axes
24003 MM/MIN
Spindle Speed, Maximum
3400 RPM
Spindle Bore Diameter
86 MM
Spindle Nose
A2-6
Spindle Drive Motor
22 KW
Equipped With:
Haas CNC Control
254 MM 3-Jaw Chuck
12-Position Auto Indexing Turret
Tool Setter
Tailstock
Chip Conveyor
LOCATION:
Under Power In Our Philadelphia Warehouse
Features:
✓
Haas CNC Control
✓
254 MM Chuck
✓
12-Position Auto Indexing Turret
✓
Tool Setter
✓
Tailstock
✓
Chip Conveyor
