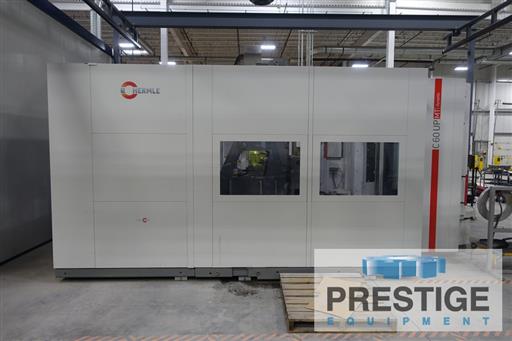

Hermle C60U MT Dynamic 5-Axis CNC Milling & Turning Center with Pallet System
Model:
C60 UP MT Dynamic
Age:
2015
Ref#:
32763
Prestige Equipment is the world's leading provider of Hermle C60U MT Dynamic 5-Axis CNC Milling & Turning Center with Pallet System & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Siemens 840D sl 5-Axis CNC Control
✓
47.24" Full B-Axis Tilting & Contouring Rotary Table
✓
High Pressure Thru Spindle Coolant System
✓
4-Station Integrated Pallet Loading System (PW 3000)
Product Specifications
SPECIFICATION:
X-Axis Travel
47.24"
Y-Axis Travel
51.18"
Z-Axis Travel
35.43"
A-Axis, Table Tilt
+130/-130 Degree
B-axis, Table Rotation
.001 Degrees
Table Diameter
47.24"
Table Speeds, Max
400 RPM
Table Capacity
5,500 Lbs.
Table Motor
75 HP
Milling Spindle Speed, Max
18,000 RPM
Milling Spindle Motor
46 HP
Milling Spindle Taper
HSK-T63
Automatic Tool Changer
70-Station
Rapid Traverses
1980 IPM
Equipped With:
Siemens 840D sl 5-Axis CNC Control
47.24" Full 5-Axis Tilting & Contouring Rotary Table
Renishaw Spindle Probe
Blum Tool Probe
Full Enclosure
70-Station Automatic Tool Changer
4-Position Integrated Pallet Loading System (PW 3000)
High Pressure Thru Spindle Coolant System: 80 Bar/1000 PSI
Kinematic Opt Software
Paper Filtration System
Camfil Mist Filter System
Chip Conveyor
Features:
✓
Siemens 840D sl 5-Axis CNC Control
✓
47.24" Full B-Axis Tilting & Contouring Rotary Table
✓
High Pressure Thru Spindle Coolant System
✓
4-Station Integrated Pallet Loading System (PW 3000)
