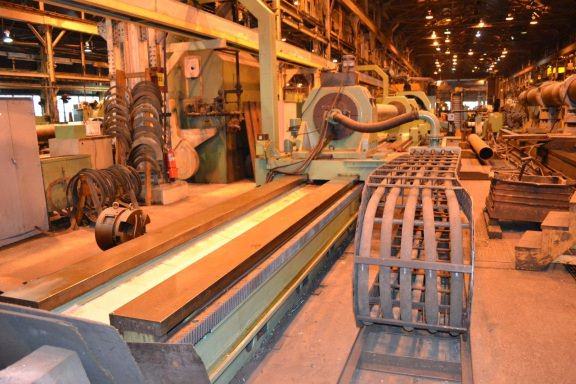

Prestige Equipment is the world's leading provider of Wohlenberg VDF PB4-1600 63" x 396" High Performance CNC Boring Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Boring Lathes for sale.
Product Specifications
Features:
✓
Giddings & Lewis 8000 CNC Control, Retrofitted 2000
✓

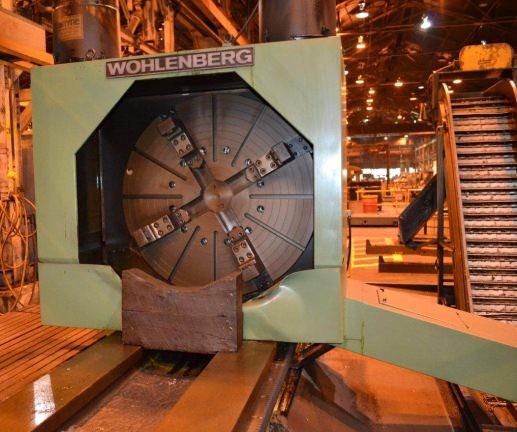

55.12" Diameter Face Plate Chuck with Jaws
✓
16.92" Diameter Boring Bar
✓
Boring Heads (2)
✓
W-Axis Positioning
✓
X-Axis Taper
✓
Feed Pressure Measuring Devise
✓
Hardened & Ground Ways
✓
Coolant System with Polo Paper Filtration
✓

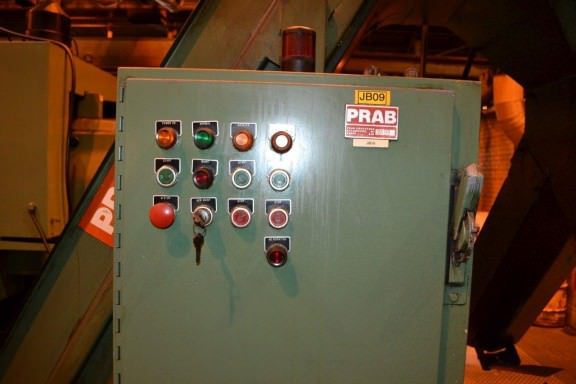

Prab Chip Conveyor System
Product Specifications
CAPACITY:
Maximum Swing Over Bedways
62.99"
Boring Diameter Solid Boring
12.4"
Trepanning
2" to 25"
Counter Boring With Pilot Pre-Bore
+ 25"
Maximum Boring Depth, Z-Axis
396"
Length of Bed
1,176"
Width of Bed
39.37"
Machine Weight
180,000 Lbs
WORK HEADSTOCK:
Speeds, Infinitely Variable
1.8-355 RPM
Speed Ranges
4
Main Spindle Diameter Front Bearing
11.81"
Main Spindle Bore
6.4"
Maximum Torque, 31 rpm at 180 HP
39,900 FT/Lbs
Maximum Workpiece Weight (1) Rest
88,000 Lbs
Maximum Workpiece Weight (2) Rests
110,000 Lbs
Maximum Workpiece Weight (3) Rests
140,000 Lbs
Main Motor
160 HP
Electrics
460V 3-Ph 60 Cycle
Approximate Floor Space (L x W)
1260" x 102"
GUIDE CARRIAGE:
Feed Range
0-120 IPM
Rapid Traverse
120 IPM
Maximum Feed Pressure
22,500 Lbs
BORING SLIDE:
Feed Range
0-120 IPM
Rapid Traverse
120 IPM
Maximum Feed Pressure
22,500 Lbs
Equipped With:
55.12" Diameter Face Plate Chuck with Jaws
Giddings & Lewis 8000 CNC Control Installed 2000
16.92" Diameter Boring Bar
Boring Heads (2)
W-Axis Positioning
X-Axis Taper
Feed Pressure Measuring Devise
Hardened & Ground Ways
Coolant System with Polo Paper Filtration
Prab Chip Conveyor System
FEATURES:
Main Spindle Mounted in Precision Double Cylinder Roller Bearings
All Shafts Mounted in Anti-Friction Bearings.
Gear Mechanism Controlled via Hydraulic Gear Shifting.
Flat Way Bed Construction With 2-Vertically Arranged Helical Racks for Feed Transmission.
Guideways Hardened & Ground Approximately 500 HB.
NOTE:
Inspect In Plant
Features:
✓
Giddings & Lewis 8000 CNC Control, Retrofitted 2000
✓
55.12" Diameter Face Plate Chuck with Jaws
✓
16.92" Diameter Boring Bar
✓
Boring Heads (2)
✓
W-Axis Positioning
✓
X-Axis Taper
✓
Feed Pressure Measuring Devise
✓
Hardened & Ground Ways
✓
Coolant System with Polo Paper Filtration
✓
Prab Chip Conveyor System
