DMG Mori CTX Gamma 2000, 27.6" x 78" 9-Axis CNC Lathe
Model:
CTX Gamma 2000 TC
Age:
2012
Ref#:
31829
Prestige Equipment is the world's leading provider of DMG Mori CTX Gamma 2000, 27.6" x 78" 9-Axis CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
✓

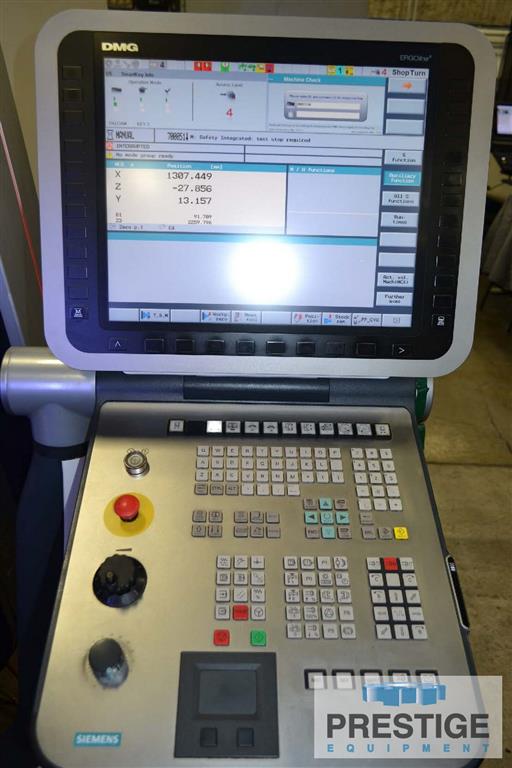

Siemens 840D CNC Control
✓
9-Axis Capability
✓
Main & Counter Spindles
✓
Programmable Steady Rest
✓
36 Station ATC
✓
Tooling
Product Specifications
CAPACITY:
Maximum Workpiece Diameter
27.6"
Maximum Workpiece Length
78.74"
Maximum Bar Capacity
4.1"
X1 Travel
25.59"
Y1 Travel
+/-7.87"
Z1 Travel
80.70"
Z2 Travel
75.19"
Z3 Travel
75.19"
B-Axis
+/- 0.001 Degrees
MAIN SPINDLE:
Chuck Size
16"
Maximum Speed
2,500 RPM
Motor Output (30 minute rating)
70 HP
SECOND SPINDLE:
Chuck Size
13"
Maximum Speed
4,000 RPM
Motor Output (30 minute rating)
61 HP
MILLING SPINDLE:
B-Axis Travel
240 Degrees
Tool Magazine
36 ATC
Tooling
Captco C6
Maximum Speed
8,000 RPM
Motor Output
43 HP
Approximate Dimensions
299" x 166" x 100"
Approximate Weight
52,910
Equipped With:
Siemens 840D CNC Control
9-Axis Capability
Main & Counter Spindles
Programmable Steady Rest
High Pressure Coolant System
Factory Coolant Chiller
Dual CTS 300 PSI & 1000 PSI Pumps
Balanced Pressure Clamping for Main and Sub-Spindles
SMW Autoblok Fully Programmable Steady Rest
Flushing of Chucks, Steady Rest, Way Covers
Chiller System, Cooling of the Milling/Turning Spindle and Counter Spindles
Sub Spindle as Tailstock Option with Programmable Movement and Force
36 Station ATC
Automatic Cabin Doors
Chip Conveyor
Tooling
NOTE:
Machine in Plant Under Power. Was used for 5-Axis Machining of Prototype Parts
Features:
✓
Siemens 840D CNC Control
✓
9-Axis Capability
✓
Main & Counter Spindles
✓
Programmable Steady Rest
✓
36 Station ATC
✓
Tooling
