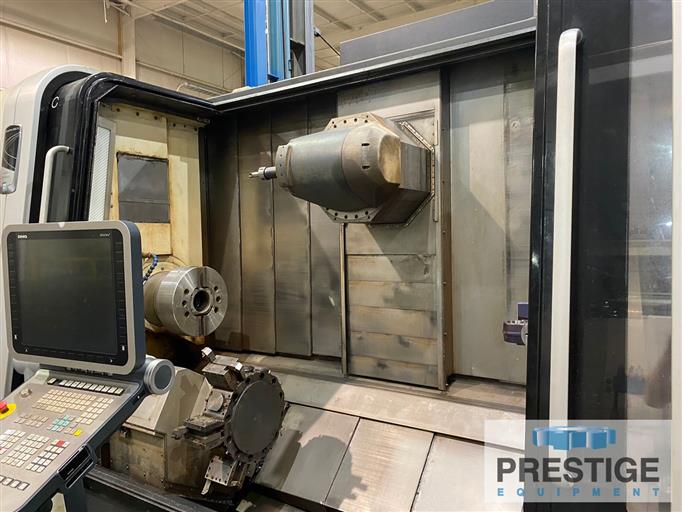

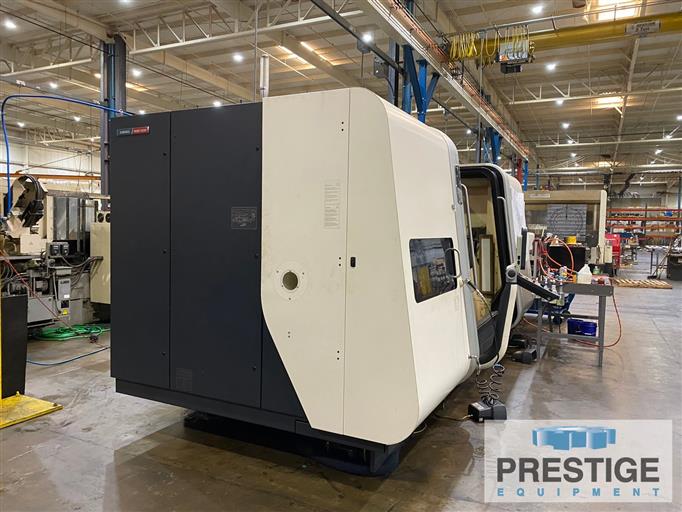

DMG Mori CTX Gamma 2000 TC CNC Mill Turn
Model:
CTX Gamma 2000
Age:
2012
Ref#:
32247
Prestige Equipment is the world's leading provider of DMG Mori CTX Gamma 2000 TC CNC Mill Turn & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
✓

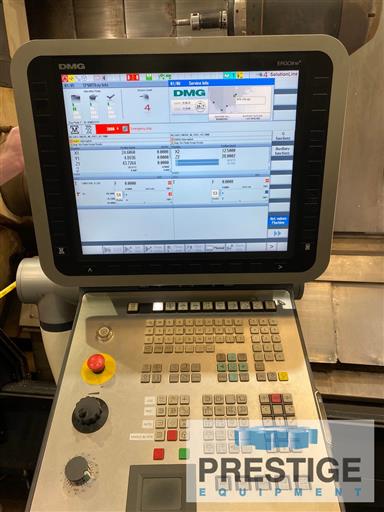

Siemens 840D CNC Control
✓
Main & Counter Spindles
✓
15" Chuck on Main Spindle
✓
18" Chuck on Counter Spindle
✓

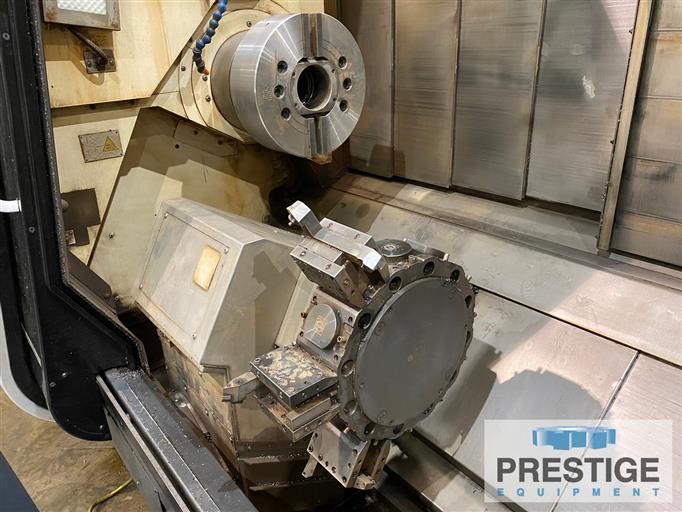

Lower Turret
✓
36 Station Automatic Tool Changer
✓
Tooling
Product Specifications
CAPACITY:
Maximum Workpiece Diameter
27.6"
Maximum Workpiece Length
78.74"
Maximum Bar Capacity
4.1"
X1 Travel
25.59"
Y1 Travel
+/-7.87"
Z1 Travel
80.70"
Z2 Travel
75.19"
Z3 Travel
75.19"
B-Axis
+/- 0.001 Degrees

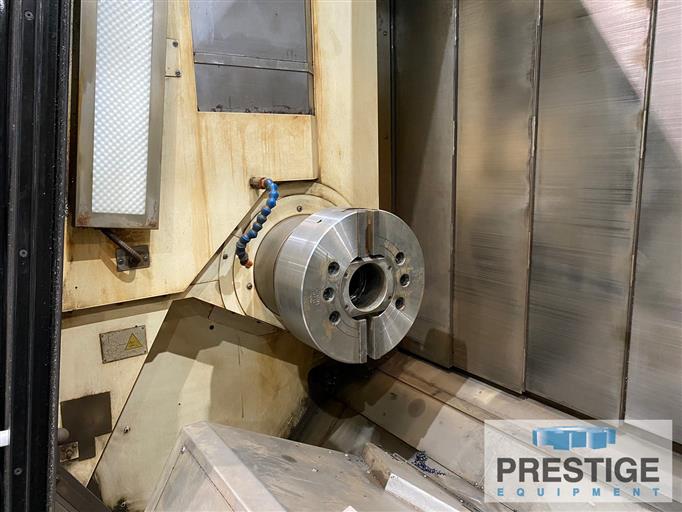

MAIN SPINDLE:
Chuck Size
20"
Maximum Speed
2,500 RPM
Motor Output (30 minute rating)
70 HP

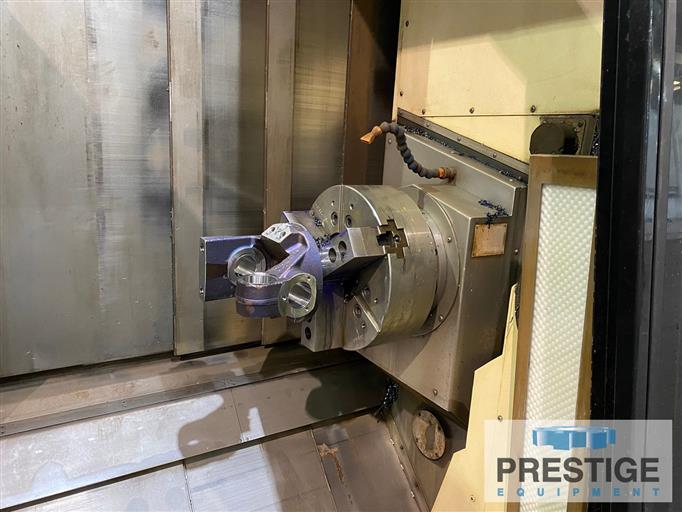

SECOND SPINDLE:
Chuck Size
13"
Maximum Speed
4,000 RPM
Motor Output (30 minute rating)
61 HP

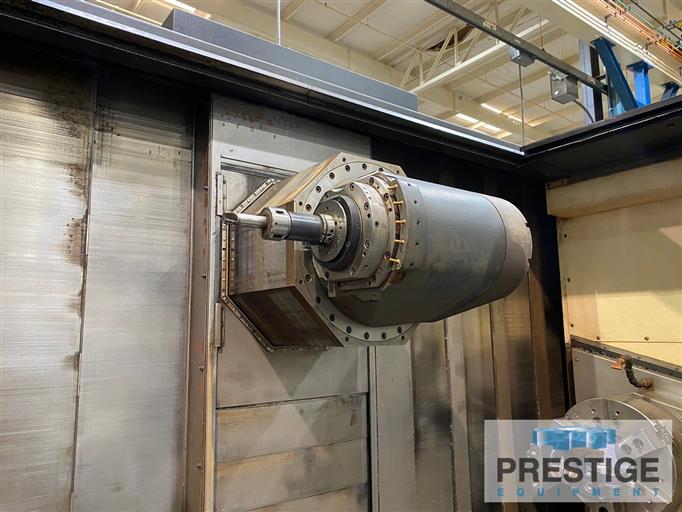

MILLING SPINDLE:
B-Axis Travel
240 Degrees
Tool Magazine
36 ATC
Tooling
HSK63
Maximum Speed
8,000 RPM
Motor Output
43 HP
Approximate Dimensions
299" x 166" x 100"
Approximate Weight
52,910
Equipped With:
Siemens 840D CNC Control
Main & Counter Spindles
15" Chuck on Main Spindle
18" Chuck on Counter Spindle
Lower Turret

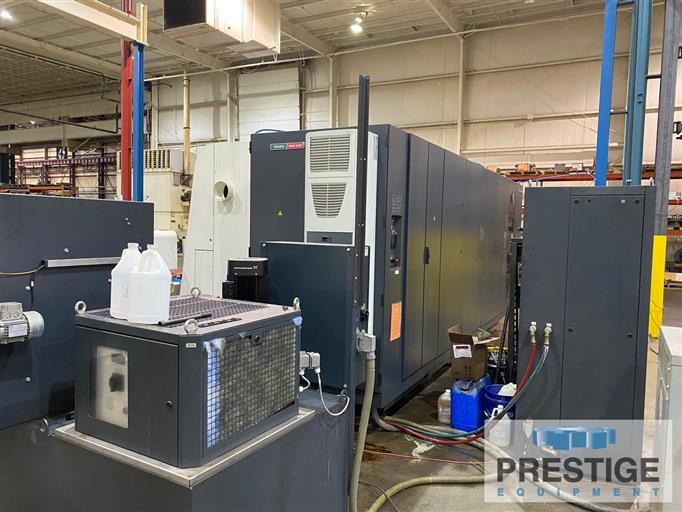

High Pressure Coolant System
Factory Coolant Chiller
Dual CTS 300 PSI & 1000 PSI Pumps
Balanced Pressure Clamping for Main and Sub-Spindles
Flushing of Chucks, Steady Rest, Way Covers
Chiller System, Cooling of the Milling/Turning Spindle and Counter Spindles
Sub Spindle as Tailstock Option with Programmable Movement and Force
36 Station Automatic Tool Changer
Automatic Cabin Doors

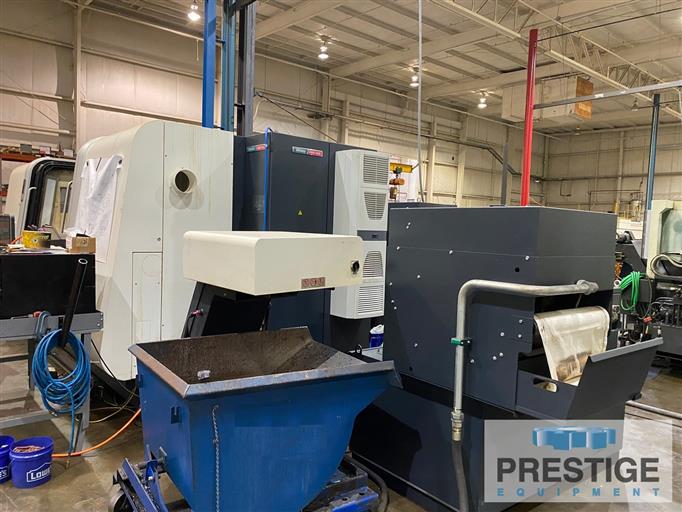

Chip Conveyor
Tooling
NOTE:
Machine in Plant Under Power. Was used for 5-Axis Machining of Prototype Parts
Features:
✓
Siemens 840D CNC Control
✓
Main & Counter Spindles
✓
15" Chuck on Main Spindle
✓
18" Chuck on Counter Spindle
✓
Lower Turret
✓
36 Station Automatic Tool Changer
✓
Tooling
