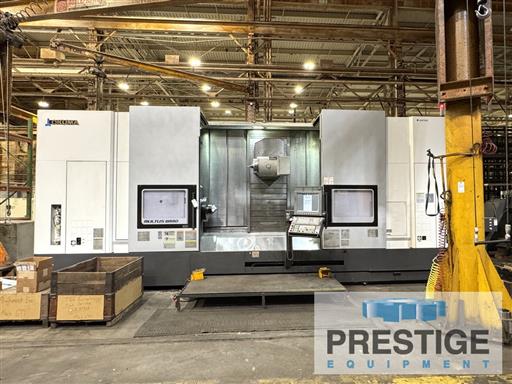

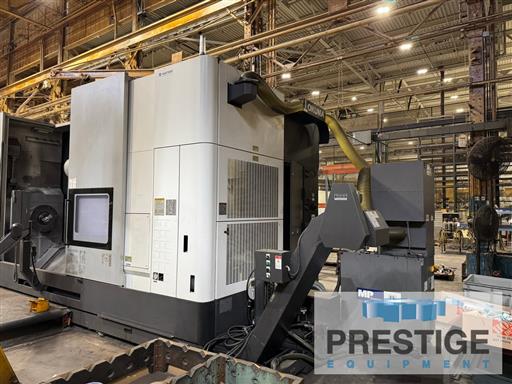

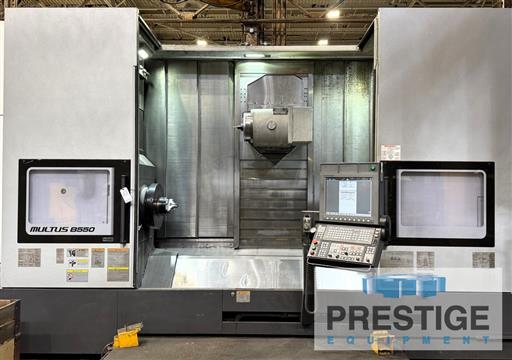

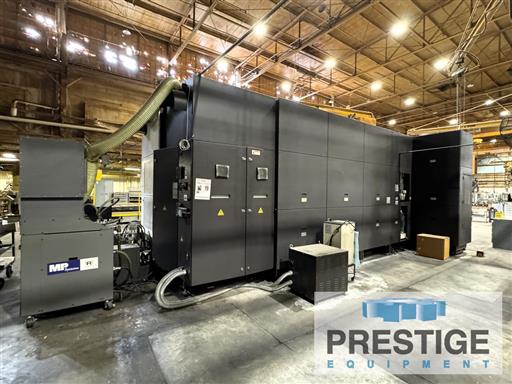

Okuma Multus B550W/2000 5-Axis CNC Turning & Milling Center
Model:
Multus B550W
Age:
2017
Ref#:
43780
Prestige Equipment is the world's leading provider of Okuma Multus B550W/2000 5-Axis CNC Turning & Milling Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
✓

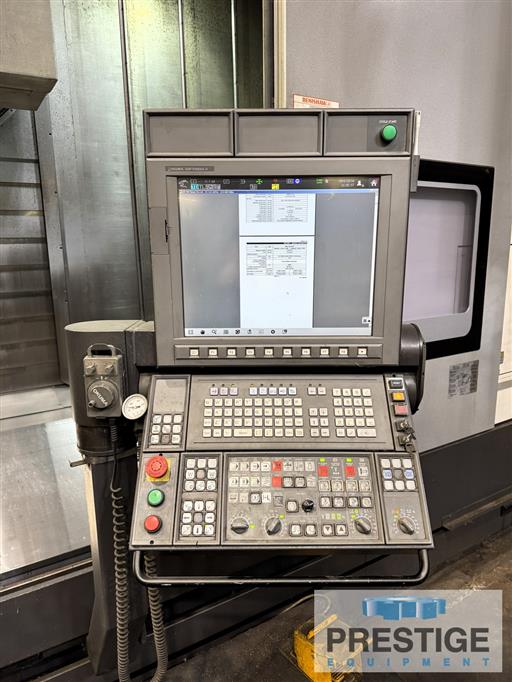

OSP-P3000 SA-H CNC Control
✓

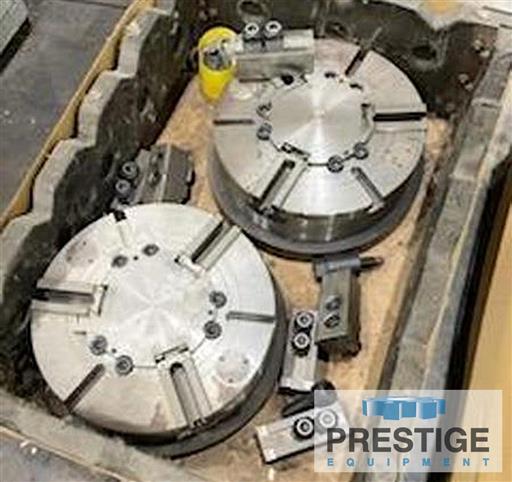

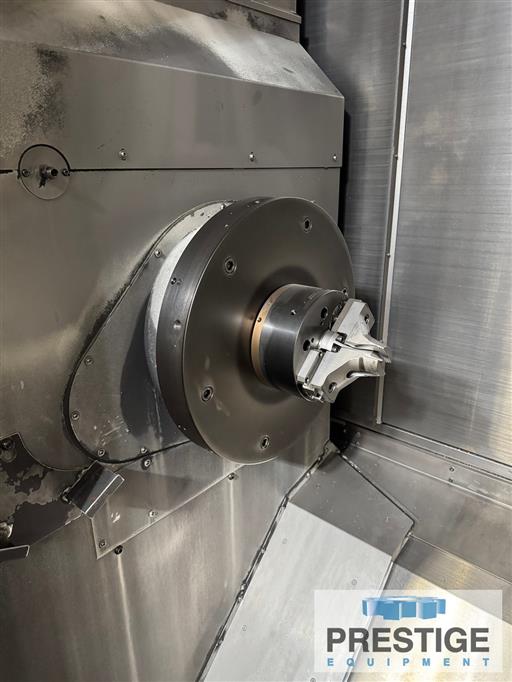

(2) 18" 3-Jaw Chucks
✓
Main Spindle
✓

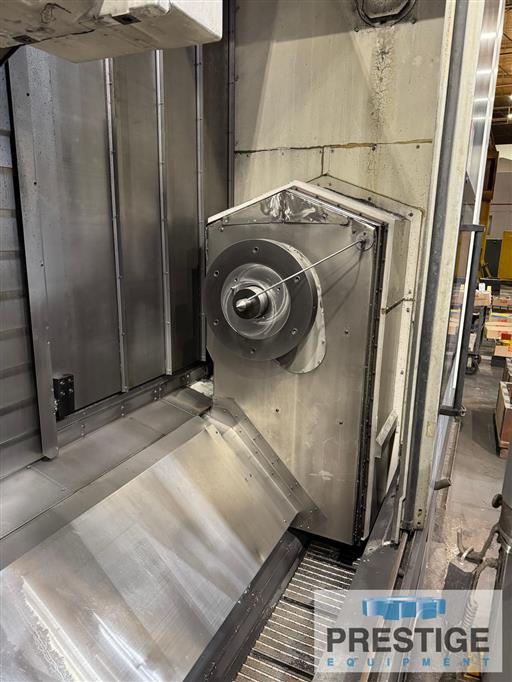

Opposing Spindle
✓

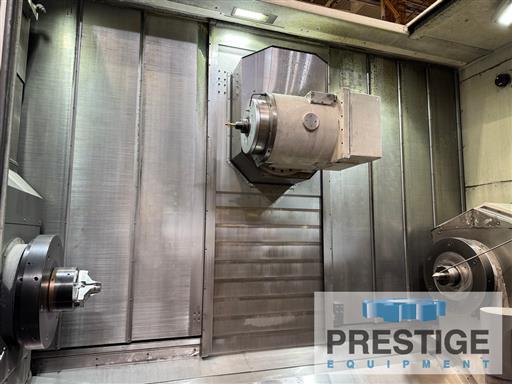

B-Axis Milling Spindle
✓
C-Axis & Y-Axis
✓

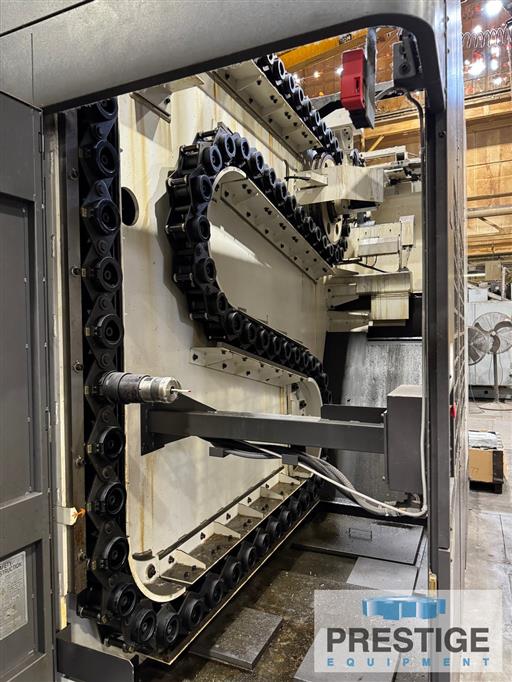

80-Position Automatic Tool Changer
✓

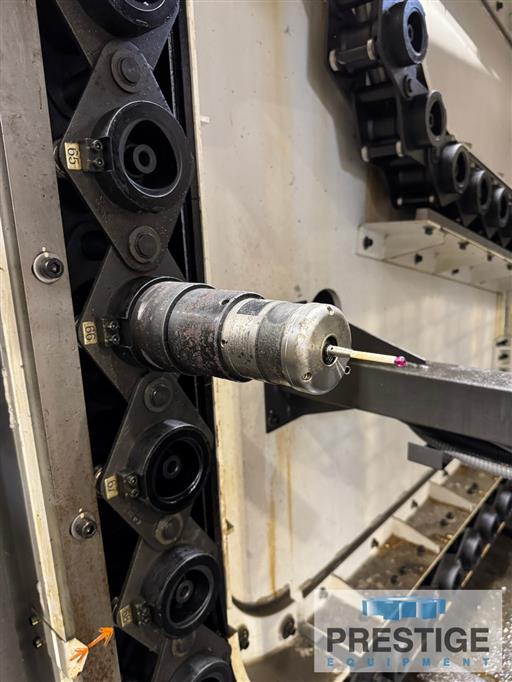

Renishaw Probe RMP 60
✓
Tool Setter
✓

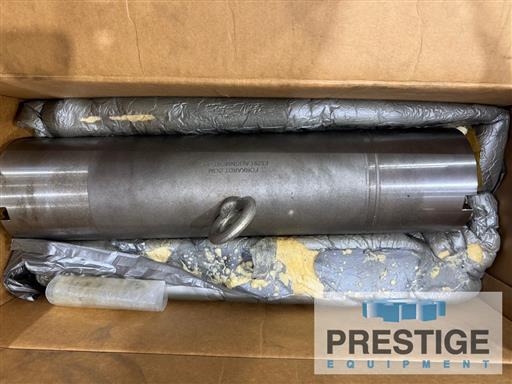

Forkardt Alignment Bar
✓

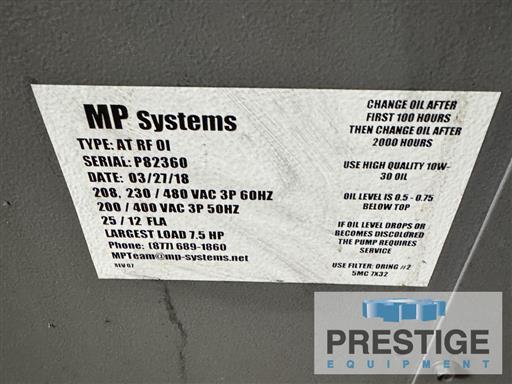

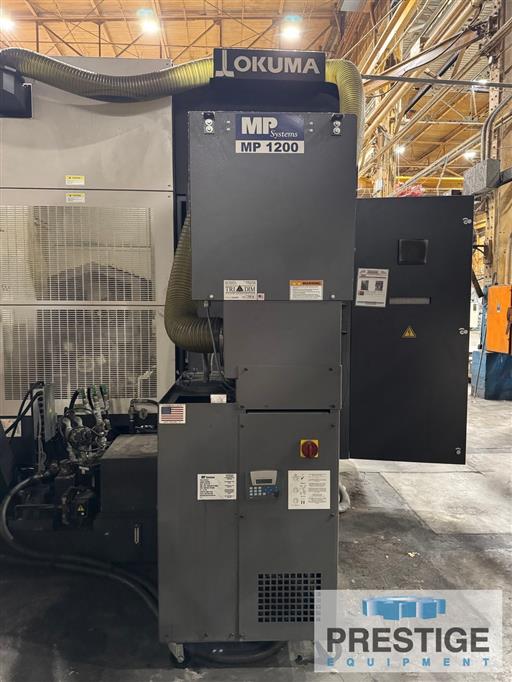

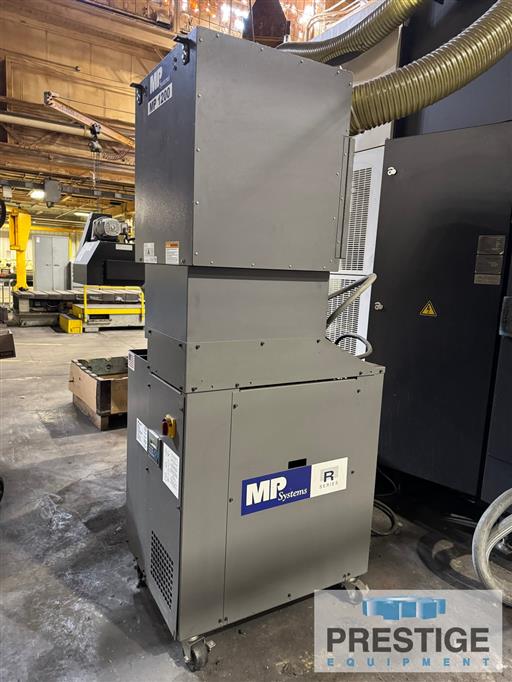

MP Systems High Pressure Coolant
✓

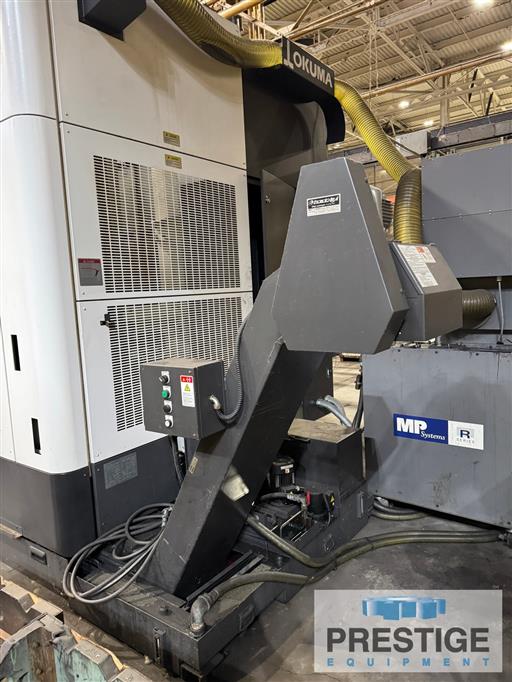

Chip Conveyor
Product Specifications

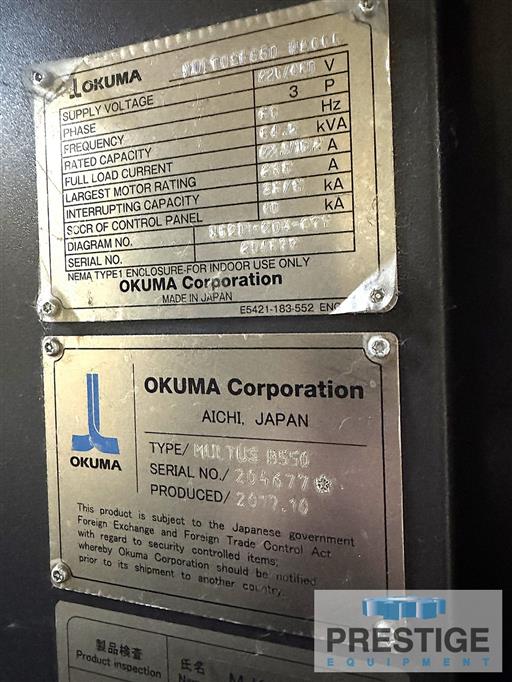

Serial Number
204677
SPECIFICATIONS:
Swing Over Bed
32.68"
Max. Turning Diameter
32.68"
Distance Between Spindles.............. 92.44"
92.44"
Max. Work Weight, Main Spindle
660 Lbs.
Max. Work Weight Between Centers
3300 Lbs.
X-Axis Travel
36.42"
Z-Axis Travel
87.2"
Y-Axis Travel (-10.24"/+10.24")
20.47"
W-Axis Travel
82.68"
C-Axis Rotation
.001 Degrees
MAIN SPINDLE:
Main Spindle Speed
30-3000 RPM,
Main Spindle Motor
40 HP/50 HP
Main Spindle Nose
A2-11
OPPOSING SPINDLE:
Opposing Spindle Speed
30-3000 RPM,
Opposing Spindle Motor
40 HP/50 HP

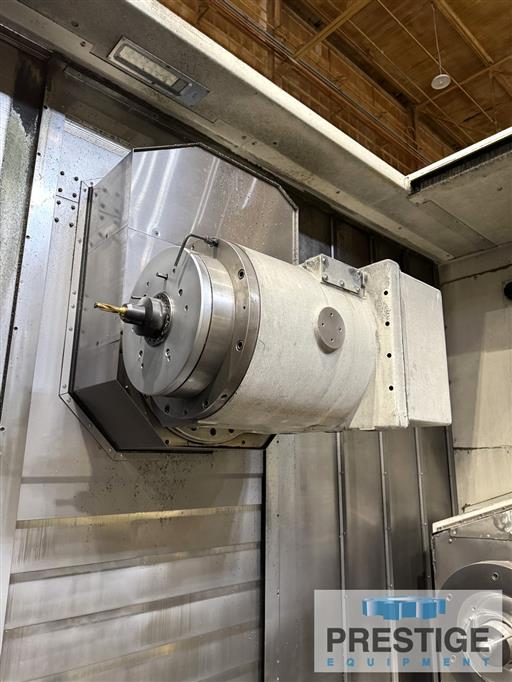

B-AXIS MILLING SPINDLE:
B-Axis Swivel Range
-30/+210 Degree
B-Axis Indexing
.001 Degrees
Rotary Tool Speed Range
40-10,000 RPM
Milling Spindle Taper
Capto C8
Rotary Tool Spindle Motor
30 HP Continuous
Milling Spindle Motor
40 HP 30 Minutes
Milling Spindle Motor
50 HP 3 Minutes
RAPIDS:
Rapids, XYZ Axes
1574 IPM
Rapids, C-Axis
100 RPM
DIMENSIONS & WEIGHT:
Machine Floor Space
295.2" x 128.7"
Machine Height
130.2"
Approx. Weight
64,900 lbs.
Equipped With:
Okuma OSP P3000 SA-H 5-Axis CNC Control
Main Spindle & Opposing Spindle
C & Y Axis & Milling Spindle
(2)18" 3-Jaw Chucks & Collets Holders
80-Position Automatic Tool Changer
Capto C8 Tooling
Renishaw Probe RMP 60
Tool Setter
Forkardt Alignment Bar
MP Systems High Pressure Coolant
Chip Conveyor
LOCATION:
Under Power In Midwest Plant
Features:
✓
OSP-P3000 SA-H CNC Control
✓
(2) 18" 3-Jaw Chucks
✓
Main Spindle
✓
Opposing Spindle
✓
B-Axis Milling Spindle
✓
C-Axis & Y-Axis
✓
80-Position Automatic Tool Changer
✓
Renishaw Probe RMP 60
✓
Tool Setter
✓
Forkardt Alignment Bar
✓
MP Systems High Pressure Coolant
✓
Chip Conveyor
