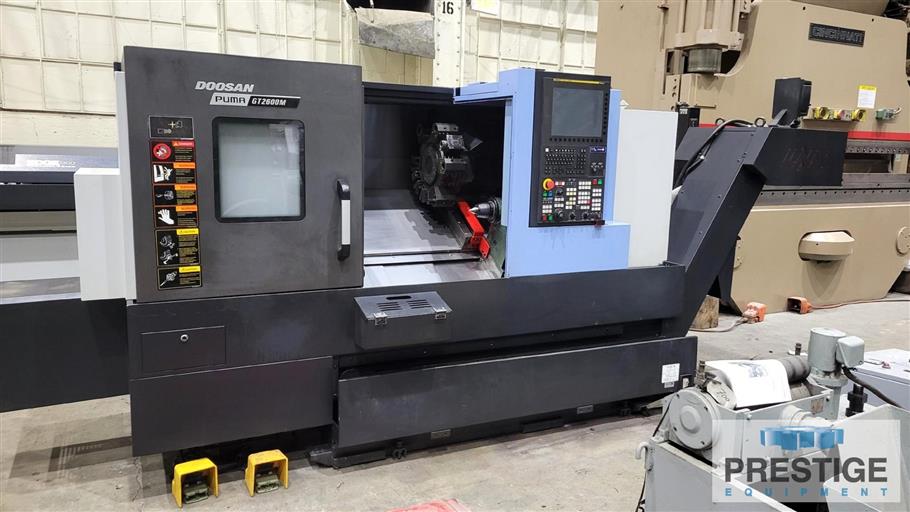

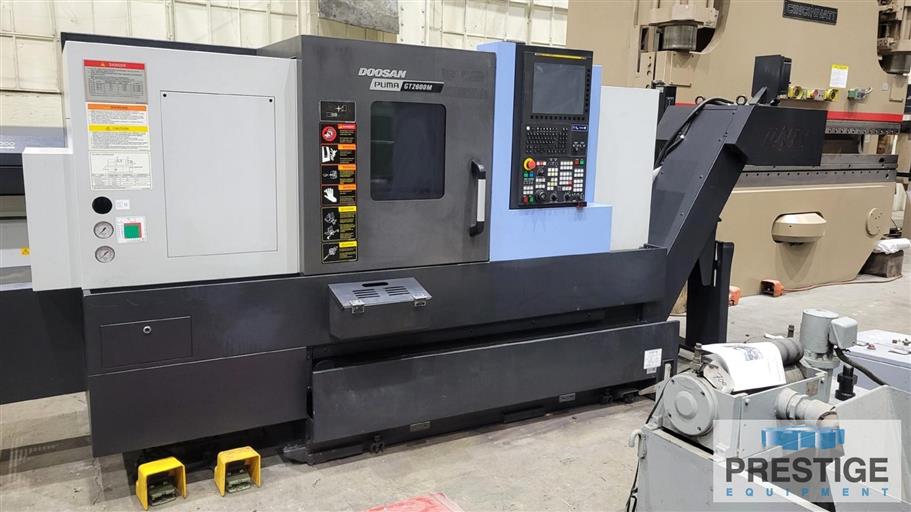

Doosan Puma GT2600M CNC Turning Center
Model:
Puma GT 2600M
Age:
2022
Ref#:
44386
Prestige Equipment is the world's leading provider of Doosan Puma GT2600M CNC Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓

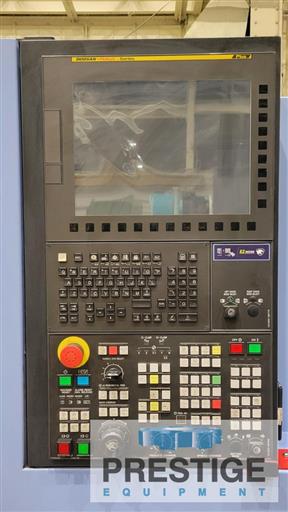

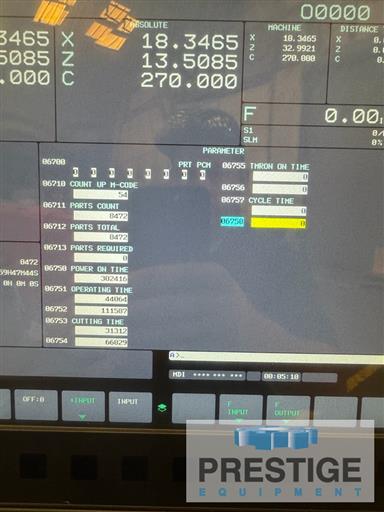

Doosan Fanuc Series i CNC Control
✓

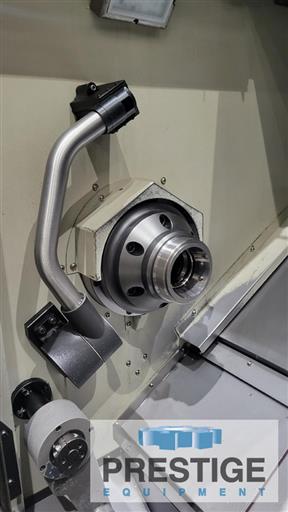

Royal Collet Chuck
✓

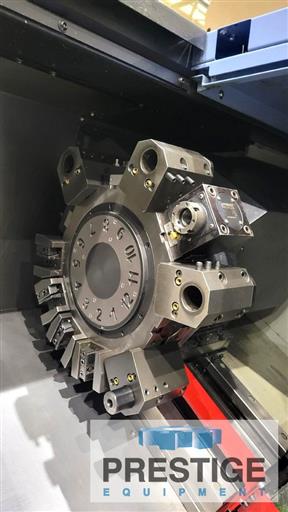

12-Station Turret
✓

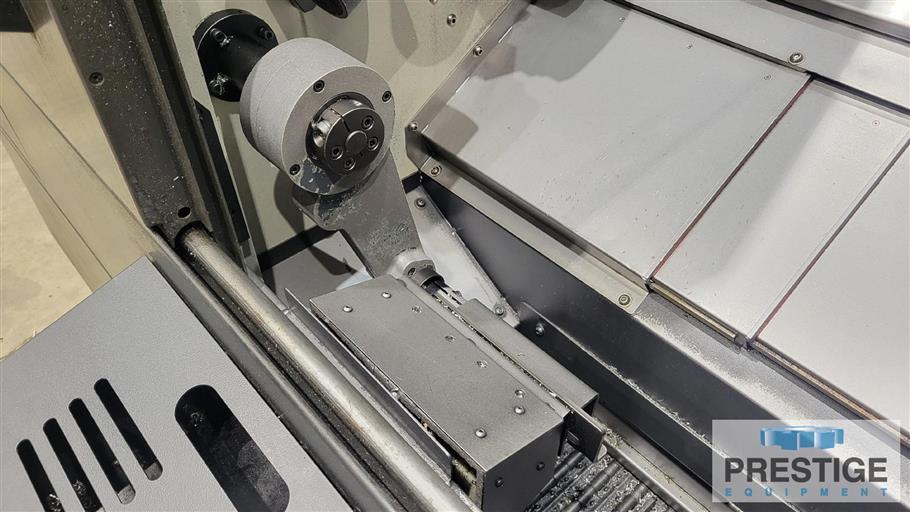

Tool Presetter
✓
Live Milling
✓
C-Axis
✓

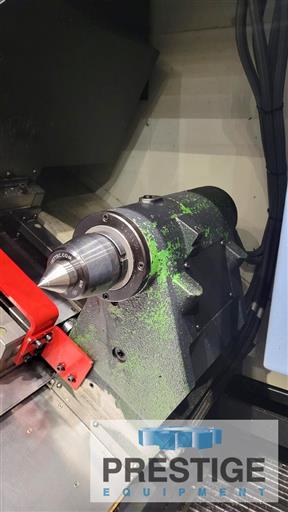

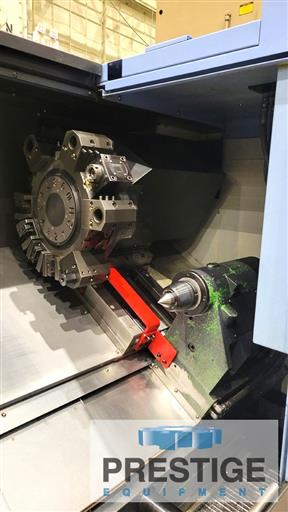

Tailstock
✓

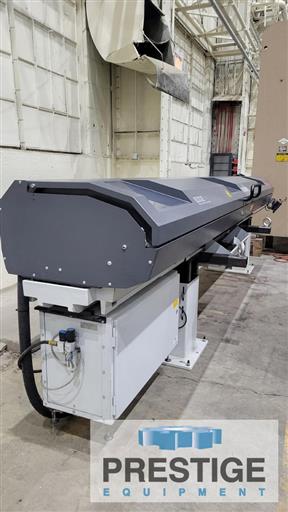

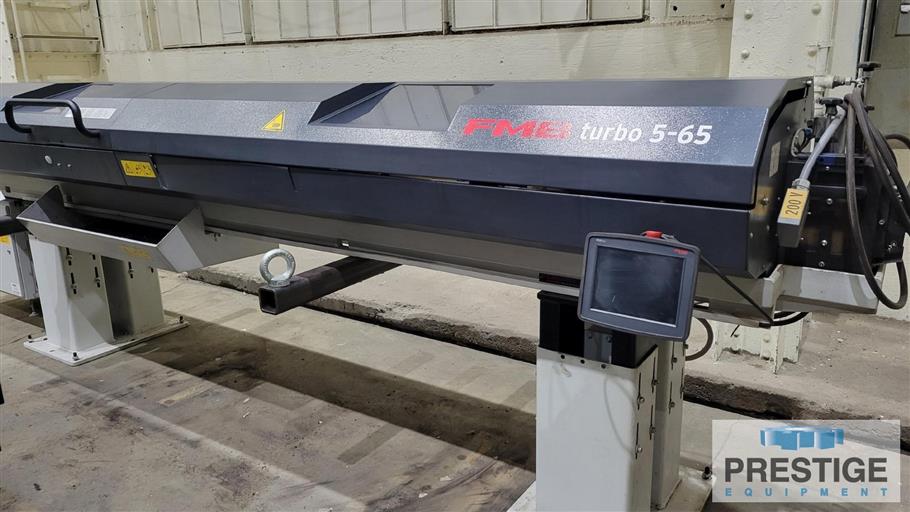

FMB Turbo 5-65 Bar Feeder
✓

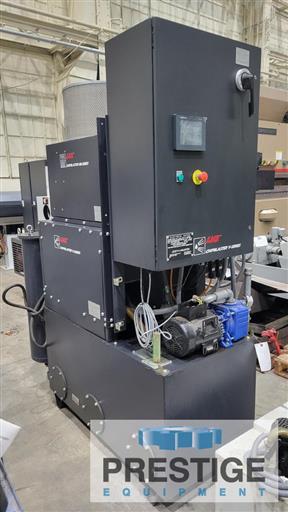

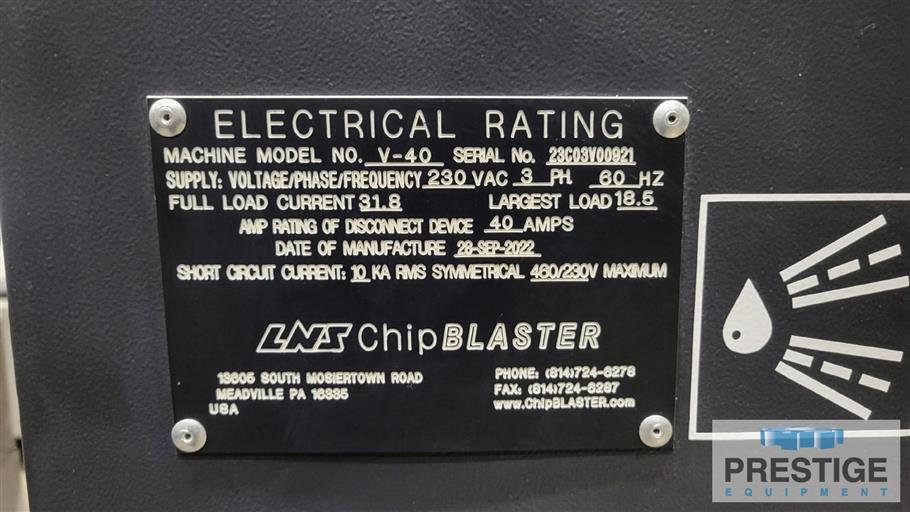

LNS Chipblaster V-Series
✓
LNS Chip Conveyor
✓
Mist Collector
Product Specifications
SPECIFICATION:
Swing Over Bed
24.8"
Swing Over Saddle
18.11"
Maximum Turning Diameter
16.14"
Maximum Turning Length
24.01"
Bar Working Diameter
3.18"
X-Axis Travel
11.22"
Z-Axis Travel
26.77"
Spindle Speeds
3,500 RPM
Live Milling Speeds
5,000 RPM
Spindle Nose
ASA AS#8
Spindle Thru Hole
3.58"
C-Axis Indexing
0.001 Deg.
X-Axis Rapid Traverse
1181 IPM
Z-Axis Rapid Traverse
1181 IPM
Spindle Motor
24.8 HP
Quill Diameter
3.93"
Quill Taper
#5 MT
Quill Travel
3.93"
Approximate Machine Dimensions
180" x 73" x 73"
Approximate Machine Weight
9,750 Lbs.
Equipped With:
Doosan Fanuc Series i CNC Control
Royal Collet Chuck
12-Station Turret
Tool Presetter
Live Milling
C-Axis
Tailstock
Parts Catcher
FMB Turbo 5-65 Bar Feeder
LNS Chipblaster V-Series
LNS Chip Conveyor
Mist Collector
Features:
✓
Doosan Fanuc Series i CNC Control
✓
Royal Collet Chuck
✓
12-Station Turret
✓
Tool Presetter
✓
Live Milling
✓
C-Axis
✓
Tailstock
✓
FMB Turbo 5-65 Bar Feeder
✓
LNS Chipblaster V-Series
✓
LNS Chip Conveyor
✓
Mist Collector
