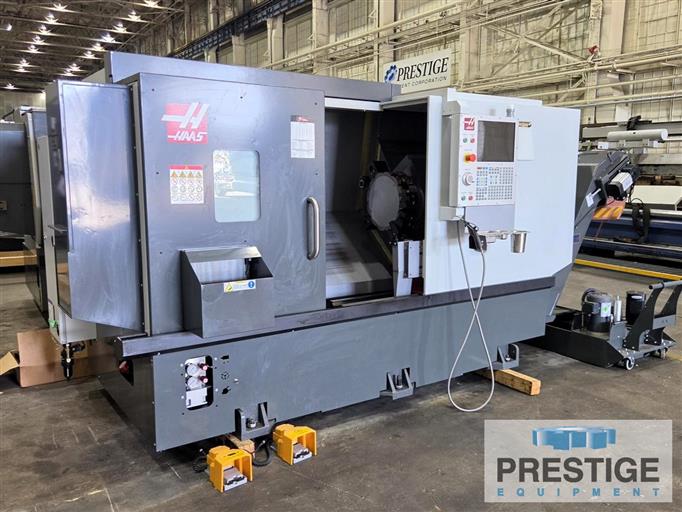

Haas ST-30Y CNC Turning Center with Live Milling
Model:
ST-30Y
Age:
2021
Ref#:
44917
Prestige Equipment is the world's leading provider of Haas ST-30Y CNC Turning Center with Live Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
✓
Haas NextGen CNC Control
✓
X,Y,Z,C-Axes & Live Milling
✓
10" 3-Jaw Chuck
✓

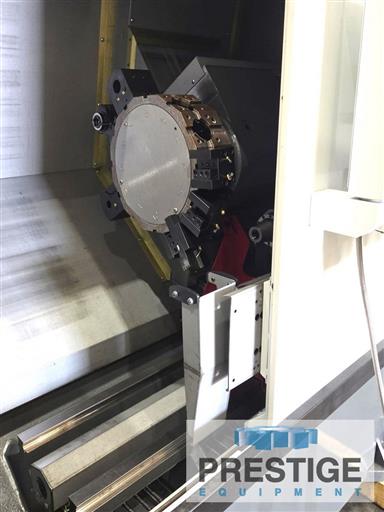

12-Station BMT65 Turret
✓
6000 RPM Live Tooling
✓
Tool Eye
✓
Part Catcher
✓
Programmable Tailstock
✓
High Pressure Coolant
✓
Chip Conveyor
Product Specifications
CAPACITIES:
Chuck Size
10"
Max Part Swing
21"
Max Cutting Dia. With BMT65 Turret
13.75"
Max Cutting Length
32.5"
Bar Capacity
3.0"
Max. Distance Between Centers
32.5"
TRAVELS:
X-Axis
9.40"
Y-Axis
± 2.0"
Z-Axis
32.50"
FEEDRATES:
Rapids, X/Y Axes
472 IPM
Rapids, Z-Axis
945 IPM
Max Thrust, X-Axis
4100 LBF
Max Thrust, Y-Axis
2300 LBF
Max Thrust, Z-Axis
5100 LBF
SPINDLE:
Spindle Nose
A2-6
Spindle Motor
30 HP
Spindle Speed
3400 RPM
Max Torque
300 ft-lbf @ 500 RPM
Spindle Bore
3.5"
C-AXIS:
Max Rating
5 HP
Max Speed
60 RPM
Positioning
(±)0.01 Degree
Brake Diameter
13.9"
Brake Holding Torque
250 FT-LBF
Control Type
Interpolated Motion & Positioning
TURRET:
Turret Type
12-Station BTM-65
Boring Bar Rear Clearance
4.0"
Live Tooling Max. Speed
4000 RPM
Tooling
BTM 65
TOOLING INCLUDED:
1- Radial Live Tool Holder
1- Axial Live Tool Holder
1- Axial Live Tool Holder
Static Tool Holder
DIMS & WEIGHT:
Domestic Pallet
171" x 90" x 98"
Approx. Weight
11,340 Lbs.
Equipped With:

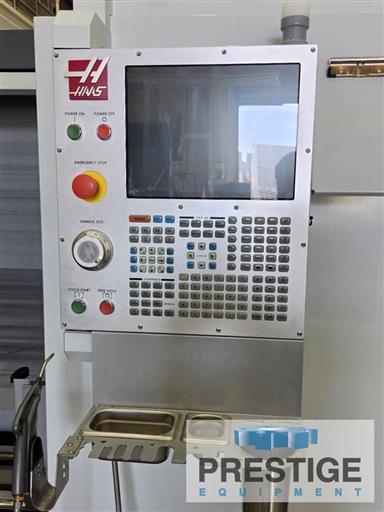

Haas NextGen CNC Control with WIFI Connection

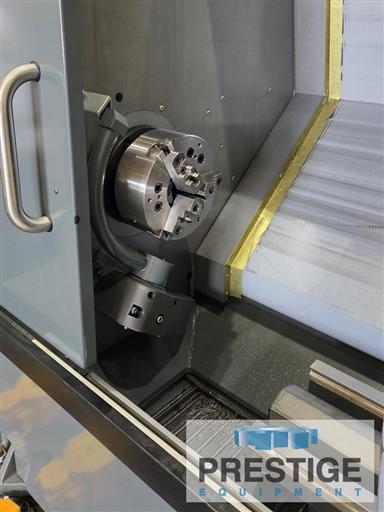

10” 3 Jaw Chuck
12-Station BMT65 Turret with 6000 RPM Live Tooling Speed Upgrade
Tool Eye
Parts Catcher
Programmable Tailstock

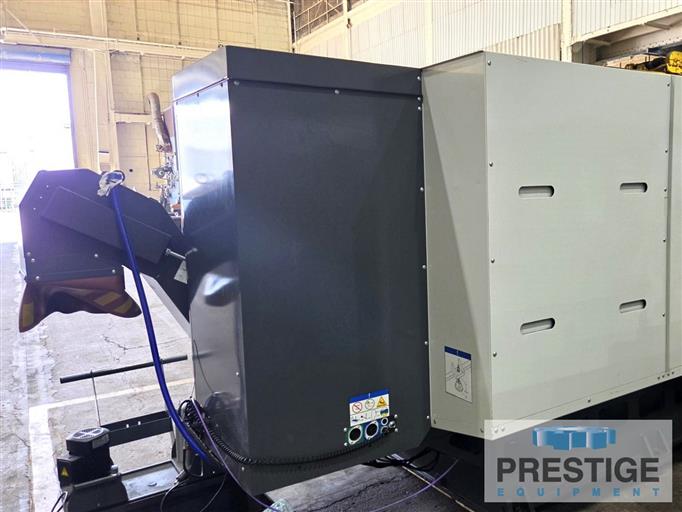

Belt Type Chip Conveyor
Chip Tray Filter Kit
300 PSI High Pressure Coolant
Early Power Failure Detection Module
User Definable Macros
Rigid Tapping
Spindle Orientation
Visual Programming System
Coolant System
High Intensity Lighting
LOCATION:
Under Power in Philadelphia, PA
Features:
✓
Haas NextGen CNC Control
✓
X,Y,Z,C-Axes & Live Milling
✓
10" 3-Jaw Chuck
✓
12-Station BMT65 Turret
✓
6000 RPM Live Tooling
✓
Tool Eye
✓
Part Catcher
✓
Programmable Tailstock
✓
High Pressure Coolant
✓
Chip Conveyor
