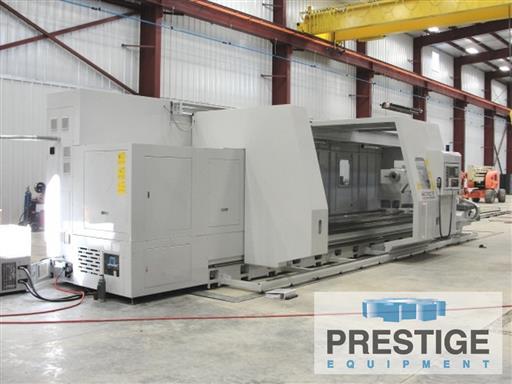

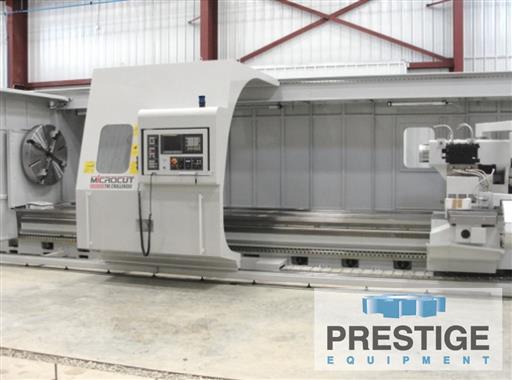

Microcut 51.18" x 472.44" CNC Lathe
Model:
BNC 5000 x 12M
Age:
2025
Ref#:
43425
Prestige Equipment is the world's leading provider of Microcut 51.18" x 472.44" CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓
Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i
✓
Four Wide Guide Ways in One Piece for Heavy Loading
✓
Motorized Tailstock
✓
4-Position HP-350 Hydraulic Turret
✓
Linear Scales for Z Axis
✓
1.96"-15.7" Steady Rest
✓
17.96"-23.62" Steady Rest
✓
Full Length Chip Conveyor
Product Specifications
SPECIFICATIONS:
Swing Over Bed
51.18"
Swing Over Cross Slide
38.58"
Overall Bed Width
51.18"
Maximum Turning Length
472.44"
Max. Work Piece Weight w/ Tailstock
22,000 Lbs
Spindle Speeds
1-735 RPM
Spindle Hole Diameter
6.02"
Spindle Nose Mount
A2-11
X-Axis Travel
25.59"
Z-Axis Travel
472.44"
Main Motor
80 HP/100 HP
Quill Diameter
9.44"
Quill Stroke
9.05"
Quill Taper
#6 MT
X/Z Rapid Traverse
393.70 IPM
Overall Dimensions
647" x 134" x 106"
Machine Weight
99,500 Lbs.
Equipped With:
Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i
Four Wide Guide Ways in One Piece for Heavy Loading
Automatic Speed Changer
Chuck Sliding Guard with Interlock Device
Motorized Tailstock
Travelling Front Single Door Interlocked with carriage
4-Position HP-350 Hydraulic Turret
Coolant System
Lubrication System
Low Voltage Circuit System
Linear Scales for Z Axis
1.96"-15.7" Steady Rest
17.96"-23.62" Steady Rest
Full Length Chip Conveyor
NOTE:
Full 1-Year Parts on Machine
Full 2-Year Parts on CNC Control
**8 Month Lead Time from Order **
Features:
✓
Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i
✓
Four Wide Guide Ways in One Piece for Heavy Loading
✓
Motorized Tailstock
✓
4-Position HP-350 Hydraulic Turret
✓
Linear Scales for Z Axis
✓
1.96"-15.7" Steady Rest
✓
17.96"-23.62" Steady Rest
✓
Full Length Chip Conveyor
