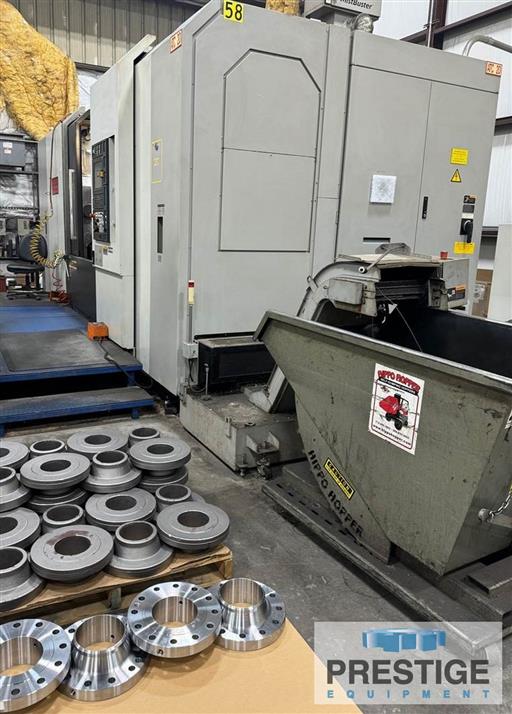

Mori Seiki NT-5400 CNC Turning/Milling Center
Model:
NT5400/1800SZ
Age:
2007
Ref#:
44104
Prestige Equipment is the world's leading provider of Mori Seiki NT-5400 CNC Turning/Milling Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓
MORI MSX-711 III CNC Control
✓

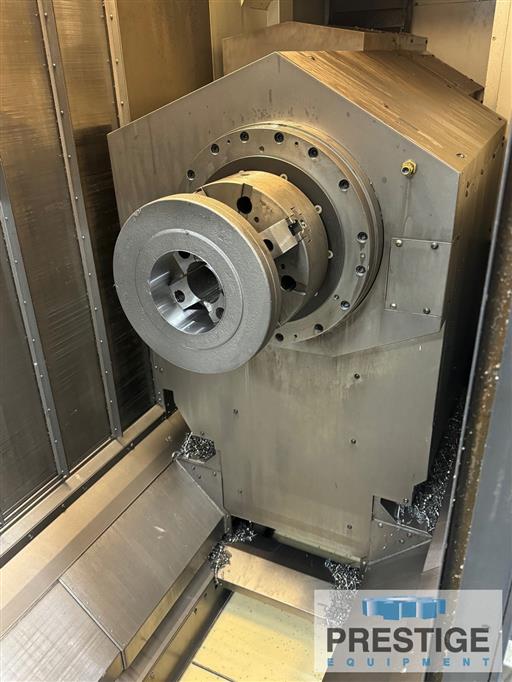

18" 3-Jaw Chuck on Main Spindle
✓

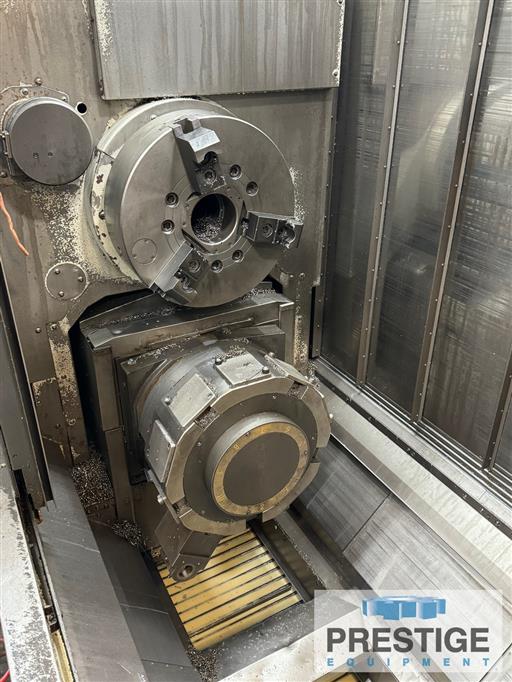

15.74" 4-Jaw on Sub Spindle
✓
10-Station Lower Turret with Milling
✓
High Pressure Thru Spindle Coolant
✓
B-Axis Milling Spindle
✓
80-Position Automatic Tool Changer
✓
Chip Conveyor
Product Specifications
SPECIFICATIONS:
Maximum Workpiece Swing
36.2"
Maximum Swing Over Cross Slide
36.2"
Maximum Machining Length
75.6"
Main Spindle Speed
2400 RPM
Main Spindle Bore
4.7"
Main Spindle Nose
A2-11
Main Motor
50 HP/40 HP
Sub-Spindle Speed
2400 RPM
Sub-Spindle Bore
4.7"
Sub-Spindle Motor
50 HP/40 HP
X-Axis Travel
40.9"
Y-Axis Travel
+/-10"
Z-Axis Travel
76.4"
Main Milling Spindle
8,000 RPM
Main Milling Spindle Motor
40 HP/30 HP
Spindle Taper
C8
C-Axis Indexing Main Spindle
.001 Deg.
C-Axis Indexing Sub-Spindle
.001 Deg.
B-Axis
230 Deg.
Approximate Machine Weight
74,800 Lbs.
Equipped With:
MORI MSX-711 III CNC Control
18" 3-Jaw Chuck on Main Spindle
15.74" 4-Jaw on Sub Spindle
10-Station Lower Turret with Milling
High Pressure Thru Spindle Coolant
B-Axis Milling Spindle
80-Position Automatic Tool Changer
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
✓
MORI MSX-711 III CNC Control
✓
18" 3-Jaw Chuck on Main Spindle
✓
15.74" 4-Jaw on Sub Spindle
✓
10-Station Lower Turret with Milling
✓
High Pressure Thru Spindle Coolant
✓
B-Axis Milling Spindle
✓
80-Position Automatic Tool Changer
✓
Chip Conveyor
