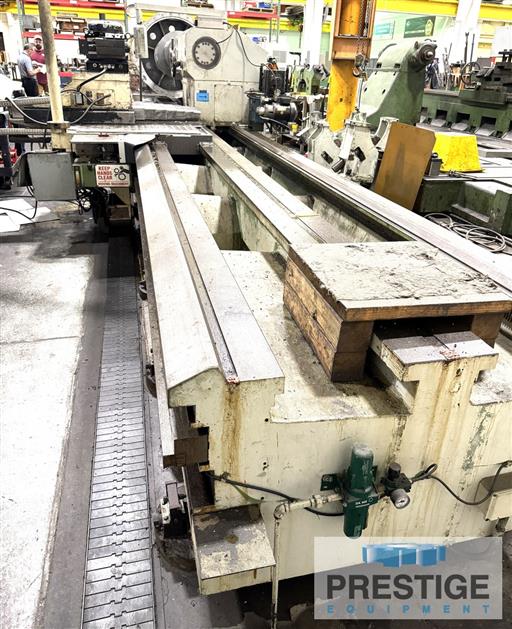

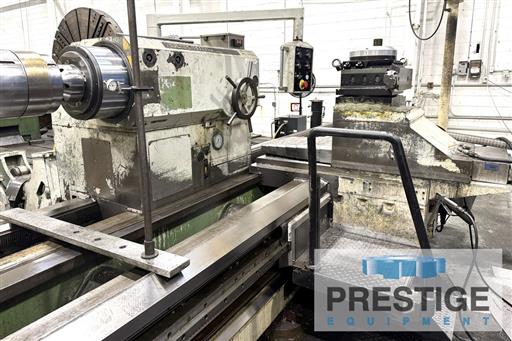

Gurutzpe 52" x 372" CNC Flatbed Lathe w/Fanuc Control
Model:
B1800/3 CNC
Age:
2010 ®
Ref#:
44268
Prestige Equipment is the world's leading provider of Gurutzpe 52" x 372" CNC Flatbed Lathe w/Fanuc Control & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓

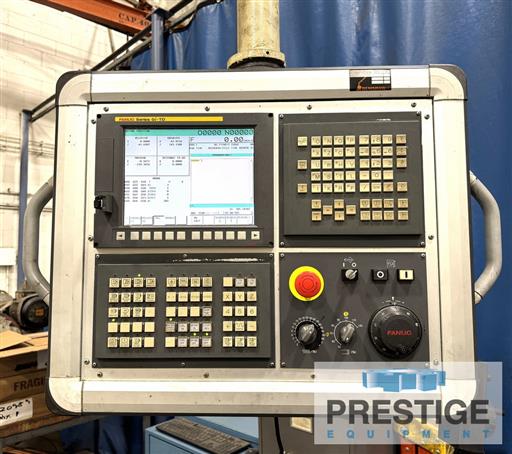

FANUC Oi-TD CNC Control (Retrofit 2010)
✓
Full Length Scale on Z-Axis
✓
36" Cushman 4-Jaw Independent Steel Chuck
✓

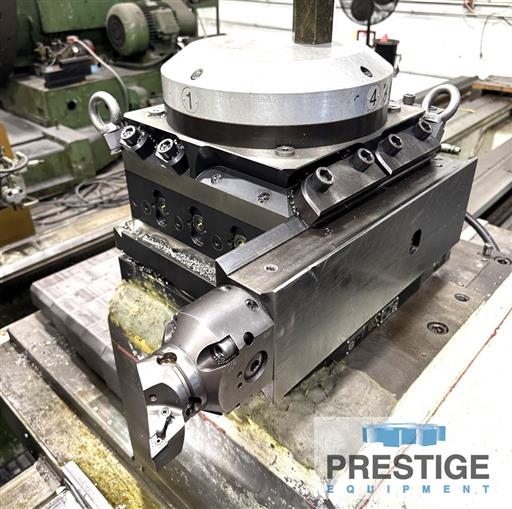

Sauter Heavy Duty 4-Position Turret
✓
3-Way Bed Design
✓
Carriage Passes Tailstock and Steady Rests
✓

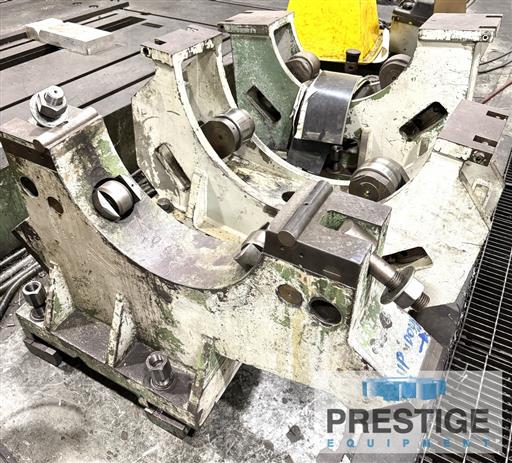

(3) Roller Type Steady Rest
✓
Henning Chip Conveyor (New 2019)
Product Specifications
Serial Number
7674-1.8
SPECIFICATIONS:
Swing Over Bed
52"
Swing Over Carriage
41"
Distance Between Centers
372"
Spindle Speeds
1-300 RPM
Spindle Bore Diameter
4.33"
Spindle Drive Motor
110 HP / 81 KW
Tailstock Quill Diameter
10.23"
Tailstock Quill Travel
7.87"
Weight Between Centers, Unsupported
48,400 lbs.
Weight Between Centers, 1-Steady Rest . 57,300 lbs.
Weight Between Centers, 2-Steady Rest . 70,500 lbs.
Equipped With:
FANUC Oi-TD CNC Control (Retrofit 2010)
Full Length Scale on Z-Axis
36" Cushman 4-Jaw Independent Steel Chuck
Sauter Heavy Duty 4-Position Turret
3-Way Bed Design
Carriage Passes Tailstock and Steady Rests
(3) Roller Type Steady Rest
Heavy Duty Meehanite Casting
Hardened Bedways

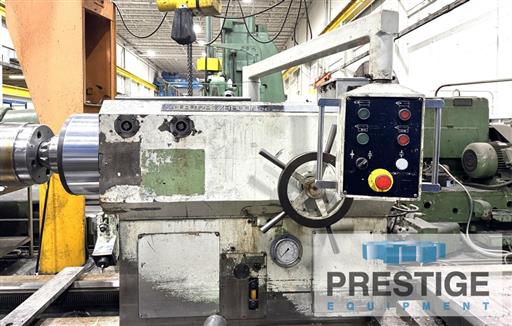

Hydraulic Tailstock
Henning Chip Conveyor (New 2019)
Note:
Utilized for CNC Precision Turning of large Shafts and Turbo Rotors
Features:
✓
FANUC Oi-TD CNC Control (Retrofit 2010)
✓
Full Length Scale on Z-Axis
✓
36" Cushman 4-Jaw Independent Steel Chuck
✓
Sauter Heavy Duty 4-Position Turret
✓
3-Way Bed Design
✓
Carriage Passes Tailstock and Steady Rests
✓
(3) Roller Type Steady Rest
✓
Henning Chip Conveyor (New 2019)
