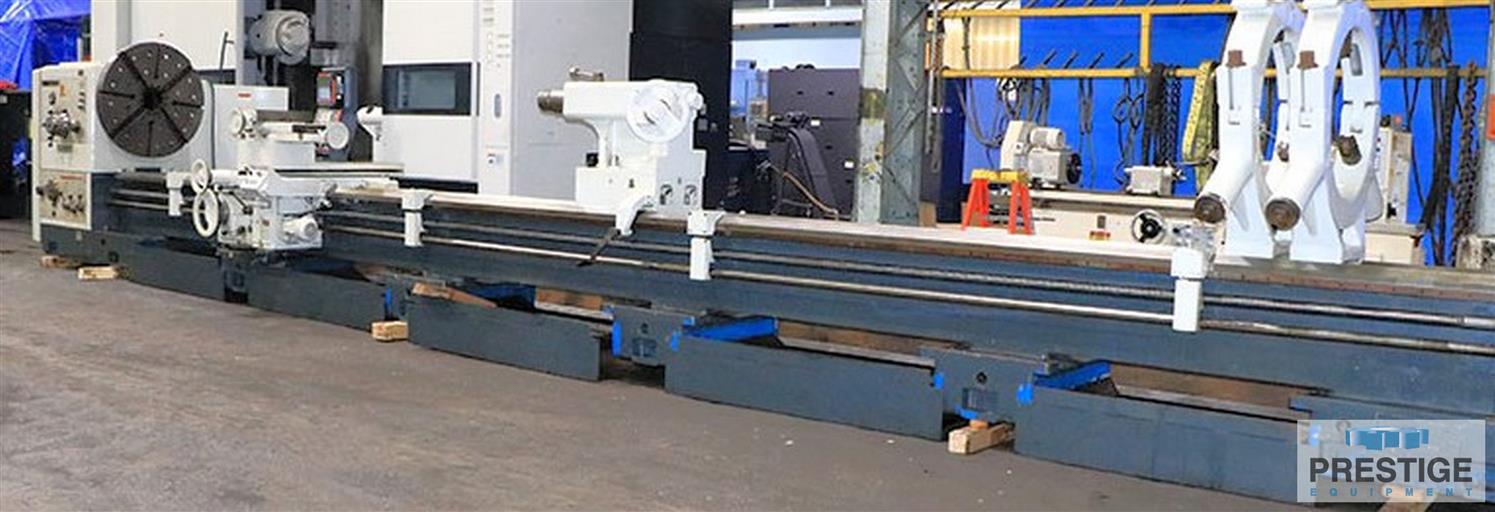

1295 MM x 9144 MM Summit 50R Manual Lathe
Model:
50R
Age:
N/A
Ref#:
44343
Prestige Equipment is the world's leading provider of 1295 MM x 9144 MM Summit 50R Manual Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓
(2)660 MM CAPACITY ROLLER TYPE STEADY RESTS
✓
POWER COMPOUND
✓
POWER RAPID TRAVERSE
Product Specifications
SPECIFICATION:
SWING OVER BED WAYS
1300 MM
SWING IN REMOVABLE GAP
1558 MM
SWING OVER CROSS SLIDE
900 MM
DISTANCE BETWEEN CENTERS
9144 MM
HOLE THRU SPINDLE
155 MM
WIDTH OF BED
600 MM
SPINDLE NOSE
A2-11
SPINDLE SPEED RANGE (16)
6 - 500 RPM
LONGITUDINAL FEED RANGE (60)
.0014 - .360 IPR
CROSS FEED RANGE (60)
.0008 - .180 IPR
INCH THREADING RANGE
.5 - 84 TPI
METRIC THREADING RANGE
.52 - 56 mm
TAILSTOCK SPINDLE DIAMETER
156 MM
TAILSTOCK SPINDLE TRAVEL
400 MM
TAILSTOCK SPINDLE TAPER
#6MT
APPROXIMATE FLOOR SPACE
12090 MM L x 1600 MM W x 2362 MM H
APPROX WEIGHT
17463 KG
Equipped With:

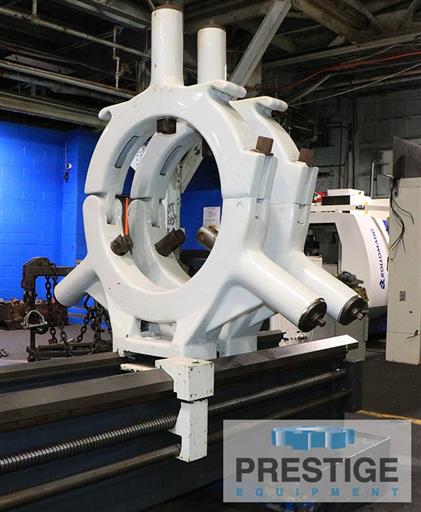

(2)660 MM CAPACITY ROLLER TYPE STEADY RESTS
POWER COMPOUND
POWER RAPID TRAVERSE
LIVE CENTER

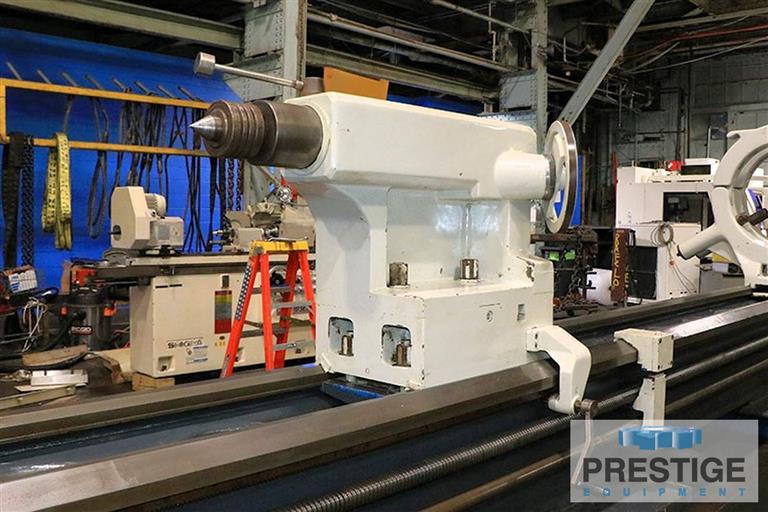

TAILSTOCK
THREAD DIAL INDICATOR
COOLANT SYSTEM
REMOVEABLE CHIP PANS
30 HORSE POWER MAIN MOTOR
Features:
✓
(2)660 MM CAPACITY ROLLER TYPE STEADY RESTS
✓
POWER COMPOUND
✓
POWER RAPID TRAVERSE
