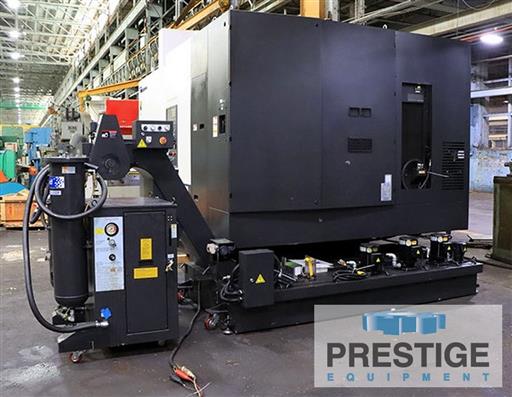

Hyundai Wia HS 5000i CNC Horizontal Machining Center
Model:
HS 5000i
Age:
2015
Ref#:
44736
Prestige Equipment is the world's leading provider of Hyundai Wia HS 5000i CNC Horizontal Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Horizontal Machining Centers (HMC) for sale.
Product Specifications
Features:
✓
FANUC SERIES 32i MODEL B CNC CONTROL
✓
80-POSITION AUTOMATIC TOOL CHANGER
✓
RENISHAW LASER TOOL SETTER
✓
COOLANT THROUGH SPINDLE
✓
HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI
✓
CHIP CONVEYOR
Product Specifications
SPECIFICATIONS:
TRAVELS & FEEDS:
X-AXIS TRAVEL
33.5”
Y-AXIS TRAVEL
27.6”
Z-AXIS TRAVEL
29.5”
DISTANCE COLUMN TO SPINDLE CENTER
2?-29.5?
DISTANCE TABLE SURFACE TO SPINDLE
5.9?~35.4?
RAPID TRAVERSE RATE (X/Y/Z)
1,969/1,969/1,969 IPM
CUTTING FEED RATE
393 IPM
PALLETS:
PALLET SIZE
19.7? × 19.7? / 500mm
NUMBER OF PALLETS
2
MAXIMUM LOAD CAPACITY
1,102 LBS
MAXIMUM WORKING SIZE
30.7? × 38.6?H
MIN. INDEXING ANGLE
0.001°
SPINDLE:
SPINDLE TAPER
CAT #40 BIG PLUS
SPINDLE SPEED
12,000 RPM
SPINDLE MOTOR OUTPUT
33.5/30 HP
SPINDLE TORQUE (MAX./CONT.)
123.1/70.1) LBF-FT
SPINDLE DRIVING METHOD
BUILT-IN
TOOL CHANGER:
NUMBER OF TOOLS:
MAX. TOOL DIA, ADJACENT FULL/EMPTY
3?/5.5?
MAX. TOOL LENGTH
17.7?
MAX. TOOL WEIGHT
17.6 LBS
TOOL CHANGE TIME
T-T SEC 1.1 / C-C SEC 3.8
FLOOR SPACE (MACHINE ONLY)
109? × 192? x 110.8”
APPROXIMATE WEIGHT
33,069 LBS
Equipped With:
FANUC SERIES 32i MODEL B CNC CONTROL
- EXPANDED MEMORY, HIGH SPEED HRV3 FUNCTION, 64 TOOL OFFSETS
- AI CONTOUR CONTROL, HELICAL INTERPOLATION, THREAD CUT/SYNCHO FEED
- RIGID TAPPING, COORIDINATE SYSTEM ROTATION, CUSTOM-B & EXECUTOR MACROS
- SIMULTANEOUES CONTROLLED AXES EXPANSION, BACKGROUND EDIT
80-POSITION AUTOMATIC TOOL CHANGER
RENISHAW LASER TOOL SETTER
COOLANT THROUGH SPINDLE

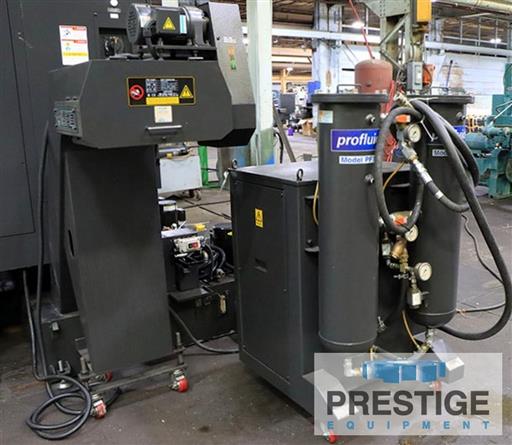

HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI
CHIP CONVEYOR
Features:
✓
FANUC SERIES 32i MODEL B CNC CONTROL
✓
80-POSITION AUTOMATIC TOOL CHANGER
✓
RENISHAW LASER TOOL SETTER
✓
COOLANT THROUGH SPINDLE
✓
HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI
✓
CHIP CONVEYOR
