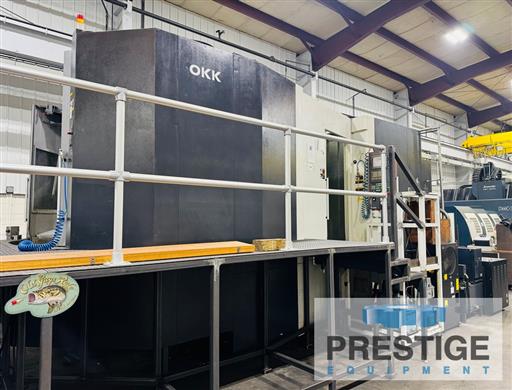

OKK HM-1250S CNC 4-Axis Horizontal Machining Center
Model:
HM-1250S
Age:
2007
Ref#:
43881
Prestige Equipment is the world's leading provider of OKK HM-1250S CNC 4-Axis Horizontal Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Horizontal Machining Centers (HMC) for sale.
Product Specifications
Features:
✓
Fanuc 310iS-A 4-Axis CNC Control
✓
(2) 49.21" x 49.21" Pallets
✓
60-Position Automatic Tool Changer
✓
Full B-Axis Contouring
✓
Through Spindle Coolant
✓
Probe
✓
Chip Conveyor
Product Specifications
CAPACITY:
X-Axis Travel
66.93"
Y-Axis Travel
55.12"
Z-Axis Travel
48.82"
Maximum Work-piece
77.56" x 59.84"
Number Of Pallets
2
Pallet Size
49.21" x 49.21"
Pallet Indexing
0.001 Degree
Weight Capacity
6600 Lbs.
Spindle Center to Table Top
2.76"-57.87"
Spindle Nose to Table Center
14.17"-62.99"
Spindle Speeds
8,000 RPM
Spindle Taper
#50 CAT
Spindle Motor
40 HP
Tool Changer
60 ATC
Maximum Tool Diameter
4.53" / 10.63"
Maximum Tool Length
23.62"
Maximum Tool Weight
55 lbs
Rapid Traverse, (X,Y & Z)
1889 IPM
Machine Weight
72,000 lbs
CNC CONTROL OPTIONS:
Fanuc 310iS-A 4-Axis CNC, Graphic Display, 10.4" Color TFT
USB Port, PC/MCIA Interface
Program Restart
Stored Pitch Error Compensation
Spindle Orientation
Inch/Metric Conversion
Canned Cycles
Automatic Corner Override
48 Pairs of Additional Work Coordinate System
Cutter Compensation C
Tool Offset Memory C
Background Editing
Macro Executor
Custom Macro B
PMC Function
Stored Stroke Check 2, 3
HQ Control
Helical Interpolation
512 KB Program Memory
Programmable Mirror Image
120 Registered Programs
200 Sets of Tool Offsets
128 Pairs of Tool Life Management
Digital Servo Function
Controllable Axes Expansion
Second Reference Point Return
Equipped With:
(2) 49.21" x 49.21" Pallets
Full B-Axis Pallet Contouring/Rotation
60-Position Automatic Tool Changer
Through Spindle Coolant (1000 psi)
Blum Laser Auto Tool Length Measurement
Tool Breakage Detection
Rigid Tapping
Renishaw Touch Probe
Manual Pulse Generator
Dual Chip Augers
Hakusan Chip Conveyor (Left Rear Exit)
Spindle Chiller Unit
Multi-Tap Transformer
Three Color Tower Light
B-Axis Linear Scales
Dual Position Feedback
LOCATION:
Under Power In Midwest Plant
Features:
✓
Fanuc 310iS-A 4-Axis CNC Control
✓
(2) 49.21" x 49.21" Pallets
✓
60-Position Automatic Tool Changer
✓
Full B-Axis Contouring
✓
Through Spindle Coolant
✓
Probe
✓
Chip Conveyor
