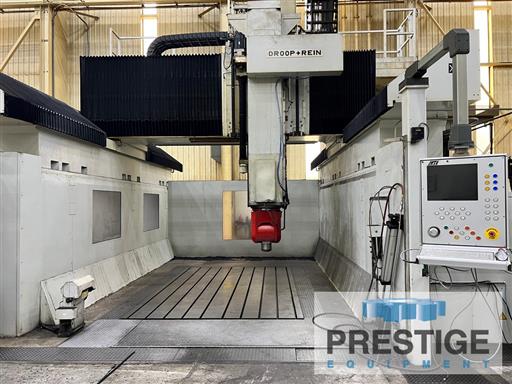

Droop & Rein FOGS 3245 H 5-Axis CNC High Speed Gantry Mill
Model:
FOGS 3245 H
Age:
1999
Ref#:
32807
Prestige Equipment is the world's leading provider of Droop & Rein FOGS 3245 H 5-Axis CNC High Speed Gantry Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
MTI 3D Geometry CNC Control (Retrofit 2012)
✓

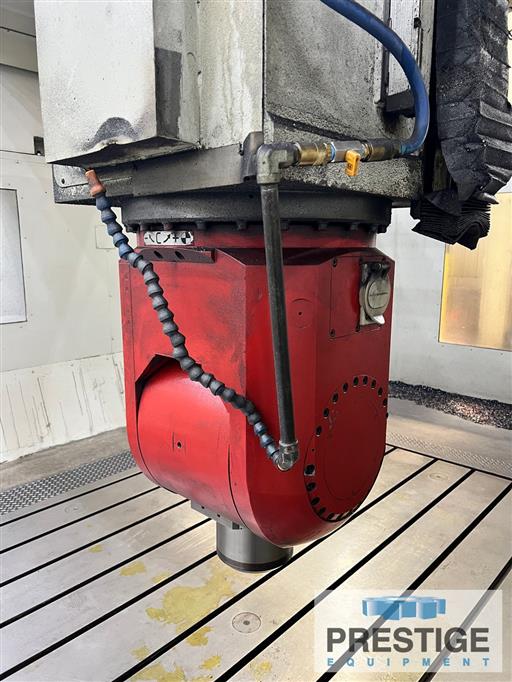

10,000 RPM Spindle Head Attachment (HSK 100)
✓
16,000 RPM Spindle Head Attachment (HSK 63)
✓
30-Station Automatic Tool Changer
Product Specifications
CAPACITY:
Table Dimensions
2502 MM x 4000 MM
Distance Between Columns
2997 MM
X-Axis Travel
4496 MM
Y-Axis Travel
2500 MM
Z-Axis Travel
1200 MM
Table Weight Capacity
19958 KG
Equipped With:
MTI 3D Geometry CNC Control (Retrofit 2012)
10,000 RPM Spindle Head Attachment (HSK 100)
16,000 RPM Spindle Head Attachment (HSK 63)
30-Station Automatic Tool Changer (10 - HSK100/20 - HSK63)
2-Station Automatic Attachment Changer
Hydraulic Unit
Oil Circulation Unit
Full Chip Enclosure
NOTE:
Inspect in Plant Under Power
Features:
✓
MTI 3D Geometry CNC Control (Retrofit 2012)
✓
10,000 RPM Spindle Head Attachment (HSK 100)
✓
16,000 RPM Spindle Head Attachment (HSK 63)
✓
30-Station Automatic Tool Changer
