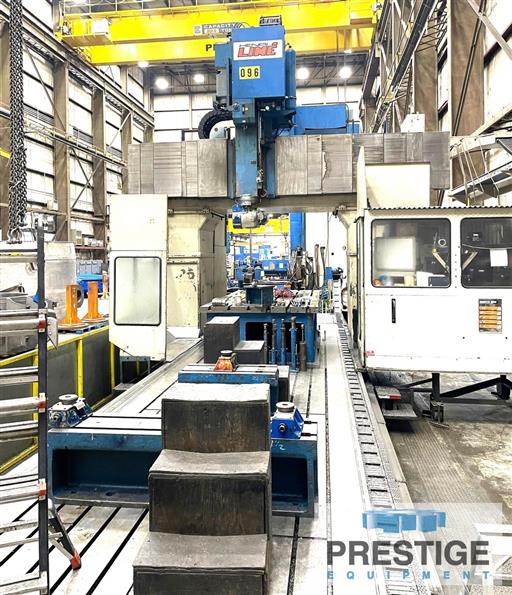

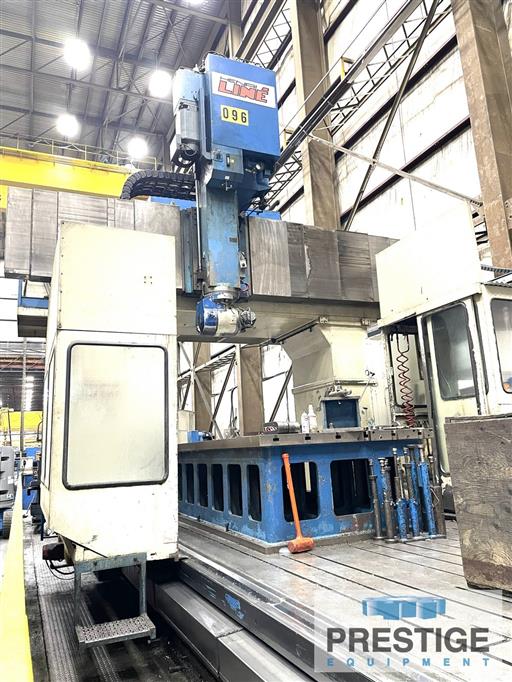

Henri Line Gicamill 29 LS/3 CNC Gantry Mill
Model:
Gicamill 29 LS/3
Age:
1997
Ref#:
44205
Prestige Equipment is the world's leading provider of Henri Line Gicamill 29 LS/3 CNC Gantry Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓

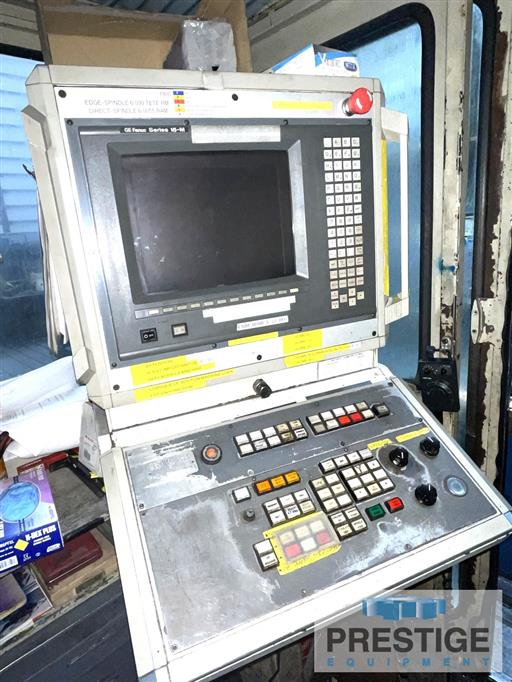

Fanuc 15M-B CNC Control
✓
Traveling Gantry Design
✓

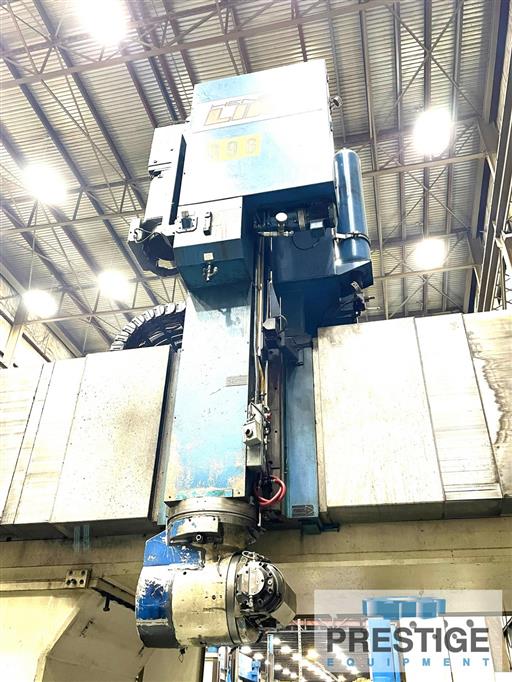

2-Axis Head
✓
Fixed Rail
✓
15977 MM x 2489 MM T-Slotted Table
Product Specifications
CAPACITY:
Gantry Travel, X-Axis
13995 MM
Head Travel, Y-Axis
3429 MM
Ram Stroke, Z-Axis
1245 MM
Height Under Rail w/ Riser
1745 MM
Height Under Rail w/out Riser
2652 MM
Spindle Speeds, 2-Ranges
10-3000 RPM
Spindle Motor
37 KW (37 KW)
Spindle Taper
CAT 50
Table Size, T-Slotted
15977 MM x 2489 MM
Distance Between Columns
3048 MM
Spindle Speeds
3000 RPM
Floor Space
15977 MM x 2489 MM
Machine Height w/ Riser
6172 MM
Machine Height w/out Riser
5258 MM
Equipped With:
Fanuc 15M-B CNC Control
Traveling Gantry Design
2-Axis Head
15977 MM x 2489 MM T-Slotted Table
Note:
Inspect In Plant Under Power!

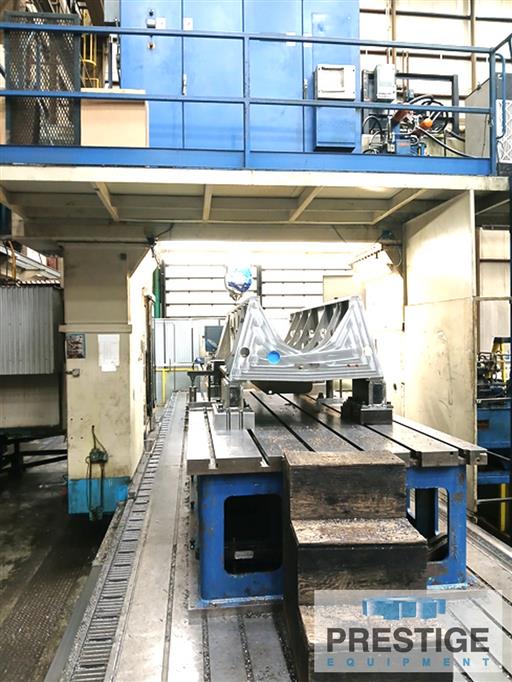

Fixture/Riser tables in photos are not included
Features:
✓
Fanuc 15M-B CNC Control
✓
Traveling Gantry Design
✓
2-Axis Head
✓
Fixed Rail
✓
15977 MM x 2489 MM T-Slotted Table
