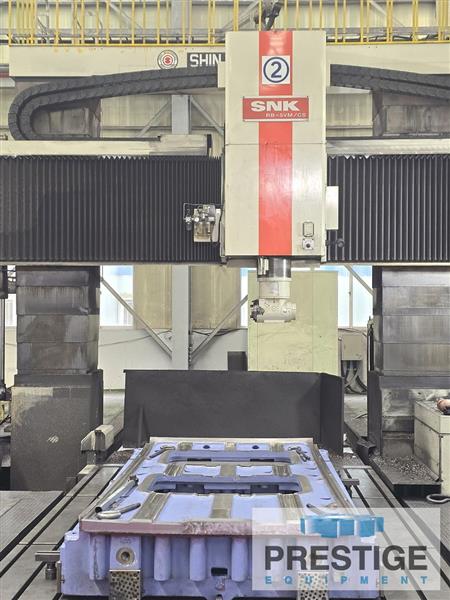

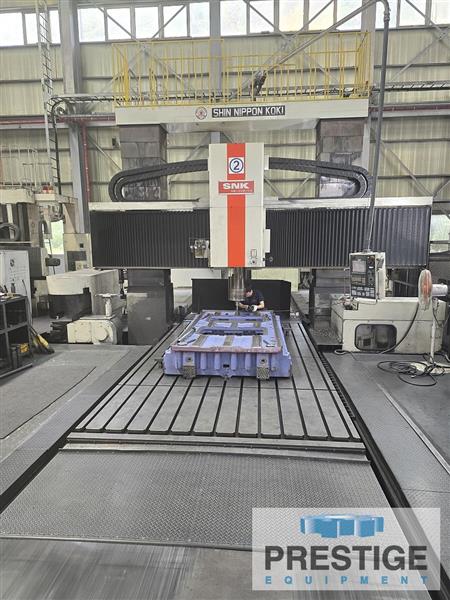

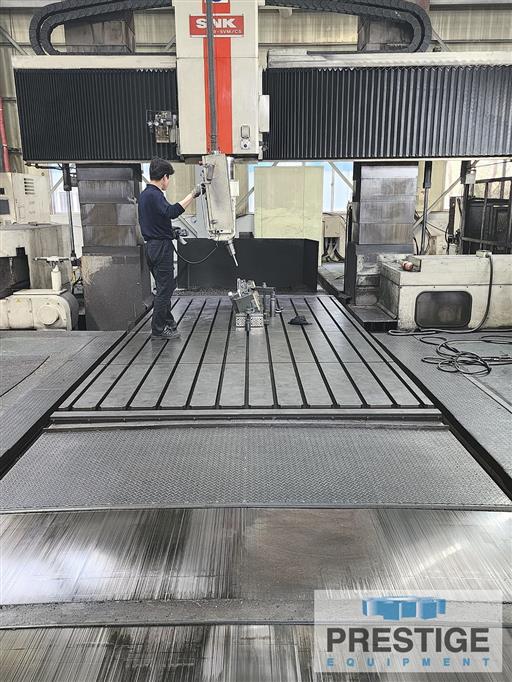

SNK RB 5VM/CS 5-Axis Double Column Vertical Machining Center
Model:
RB 5VM CS
Age:
2013
Ref#:
44239
Prestige Equipment is the world's leading provider of SNK RB 5VM/CS 5-Axis Double Column Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓

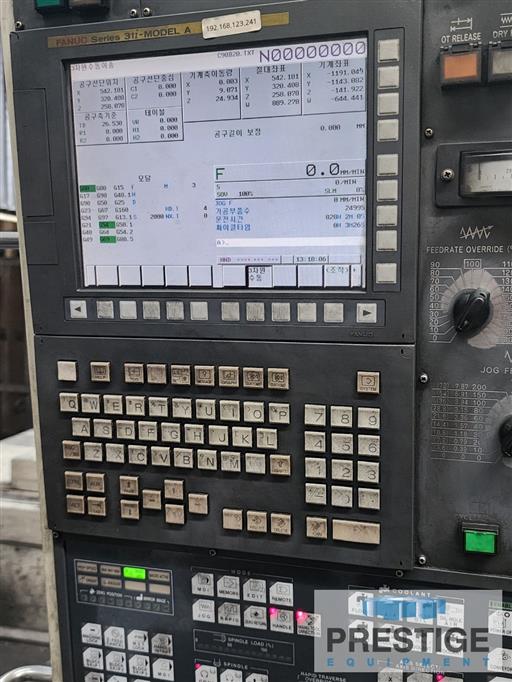

Fanuc 31iA CNC Control
✓
40-Position Automatic Tool Changer
✓
3-Station Automatic Attachment Changer
✓

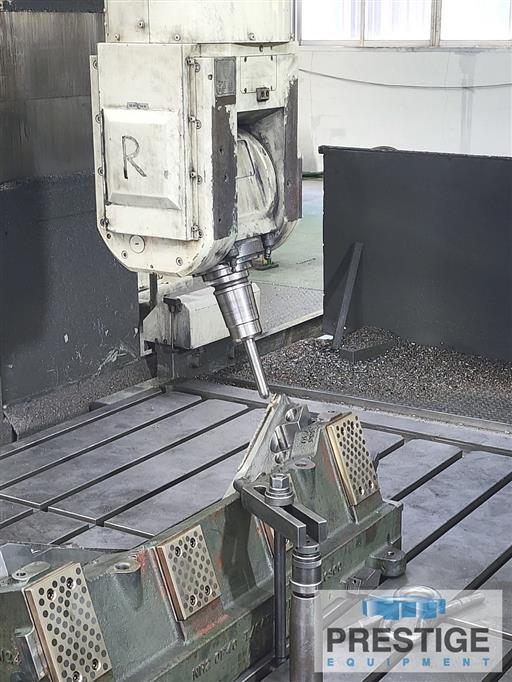

5-Axis Head
✓
90 Degree Head
✓
Scales on X,Y & Z Axis
✓
Laser Length Measurement
✓
(3)Chip Conveyors
Product Specifications
SPECIFICATIONS:
X-Axis Table Travel
206.69"
Y-Axis Head Travel
114.17"
Z-Axis Quill Travel
23.62"
W-Axis Vertical Rail Travel
55.11"
Width Between Columns
112.20"
Distance Spindle to Table
11.81" to 90.55"
Table Size
196.85" x 98.42"
Table Load Capacity
44,000 Lbs.
Spindle Speeds
40-6000 RPM
Spindle Taper
ISO 50 Taper
Spindle Drive Motor
33 HP / 25 HP
Rapid Feed X & Y Axes
787.40 IPM
Cutting Feed Rate
393.70 IPM
Equipped With:
Fanuc 31iA CNC Control
40-Position Automatic Tool Changer
3-Station Automatic Attachment Changer
5-Axis Head
90 Degree Head
Scales on X,Y & Z Axis
Laser Length Measurement
(3)Chip Conveyors

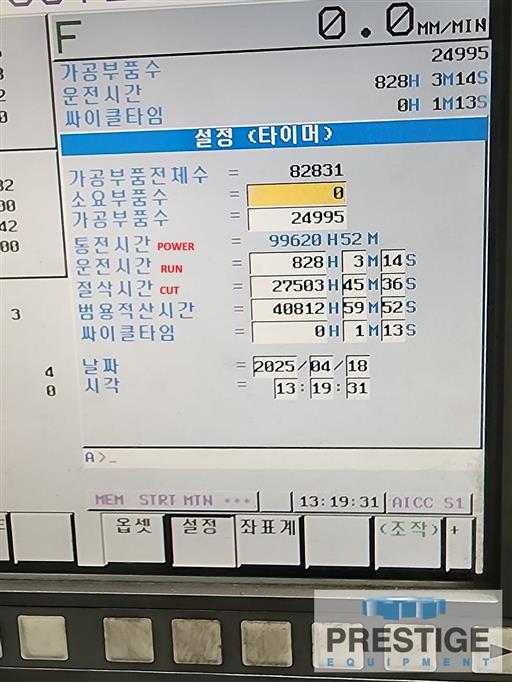

HOURS:
27,503 Cutting Hours
Features:
✓
Fanuc 31iA CNC Control
✓
40-Position Automatic Tool Changer
✓
3-Station Automatic Attachment Changer
✓
5-Axis Head
✓
90 Degree Head
✓
Scales on X,Y & Z Axis
✓
Laser Length Measurement
✓
(3)Chip Conveyors
