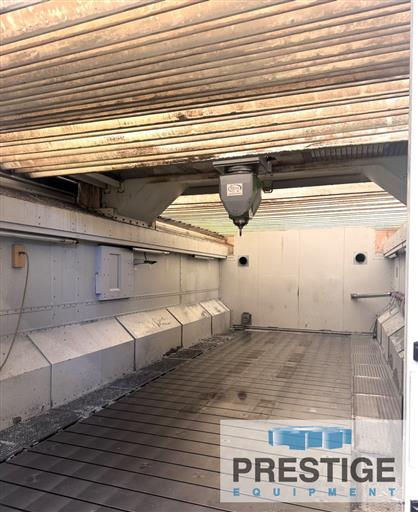

Zimmermann FZ 37 5-Axis Bridge Type CNC Vertical Machining Center
Model:
FZ-37
Age:
2014
Ref#:
44426
Prestige Equipment is the world's leading provider of Zimmermann FZ 37 5-Axis Bridge Type CNC Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Heidenhain iTNC 530 CNC Control
✓
2-Axis Spindle Head
✓
High Pressure Coolant Thru Spindle
✓
50-Station Automatic Tool Changer
Product Specifications
SPECIFICATION:
Table Dimensions
3000 MM x 9950 MM
X-Axis Travel
8000 MM
Y-Axis Travel
3500 MM
Z-Axis Travel
2500 MM
A-Axis Travel
+/- 110°
C-Axis Rotation
+/- 360°
Spindle Speed
25,000 RPM
Spindle Taper
HSK A63
Spindle Motor
45 KW
Feed Rate, X/Y/Z Axes
60000 MM/MIN
Equipped With:

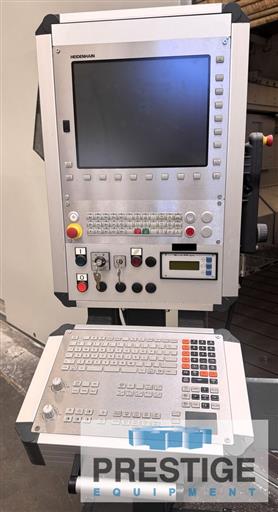

Heidenhain iTNC 530 CNC Control

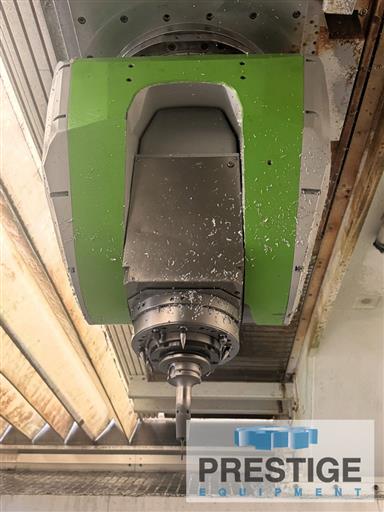

2-Axis Spindle Head
High Pressure Coolant Thru Spindle

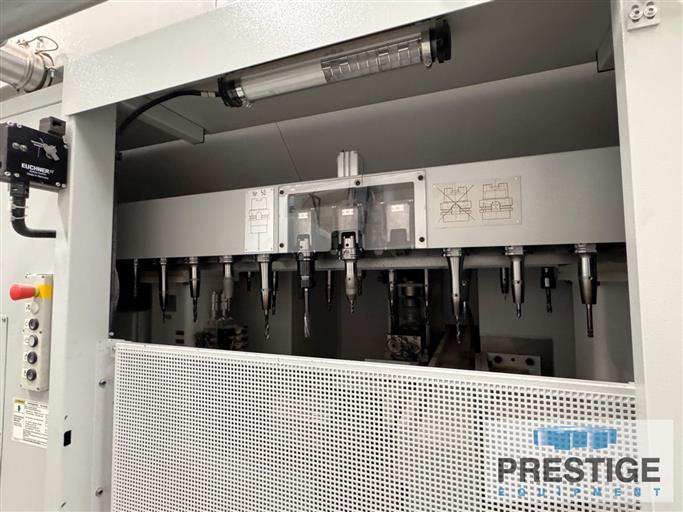

50-Station Automatic Tool Changer
Probe
Chip Conveyor
Full Enclosure
Features:
✓
Heidenhain iTNC 530 CNC Control
✓
2-Axis Spindle Head
✓
High Pressure Coolant Thru Spindle
✓
50-Station Automatic Tool Changer
