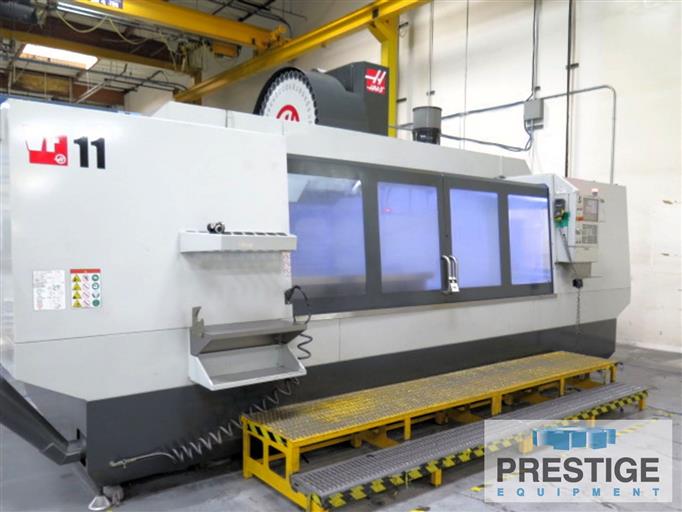

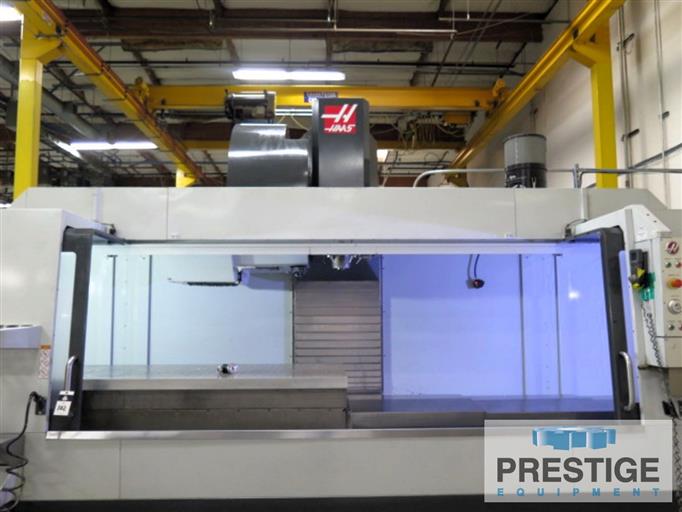

Haas VF-11/40 CNC Vertical Machining Center
Model:
VF-11/40
Age:
2018
Ref#:
44347
Prestige Equipment is the world's leading provider of Haas VF-11/40 CNC Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Haas CNC Control
✓
40-Station Side-Mounted ATC
✓
Thru Spindle Coolant
✓
Renishaw Wireless Intuitive Probe System
Product Specifications
SPECIFICATION:
X-Axis Travel
3048 MM
Y-Axis Travel
1016 MM
Z-Axis Travel
762 MM

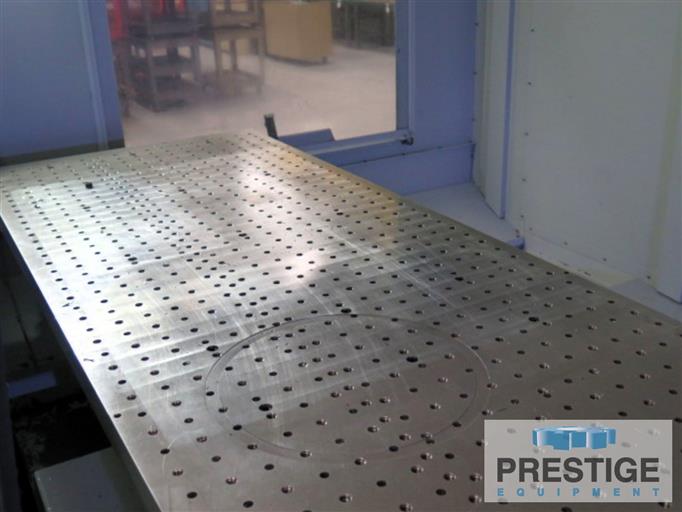

Table Size
711 MM x 3048 MM
Spindle Nose to Tabletop
127 MM -889 MM
Maximum Table Load
1814 KG .
Spindle Speeds
15,000 RPM
Spindle Taper
BT-40
Rapid Traverse, X-Axis
9144 MM/MIN
Rapid Traverse, Y/Z Axes
15240 MM/MIN
Max. Tool Weight
14 KG .
Max. Tool Dia, Non-Adjacent
254 MM
Max. Tool Dia., Pockets Full
102 MM
Max. Tool Length
406 MM
Approx. Machine Floor Space
6528 MM x 3531 MM
Approx. Machine Height
3505 MM
Approx. Machine Weight
16193 KG
Equipped With:

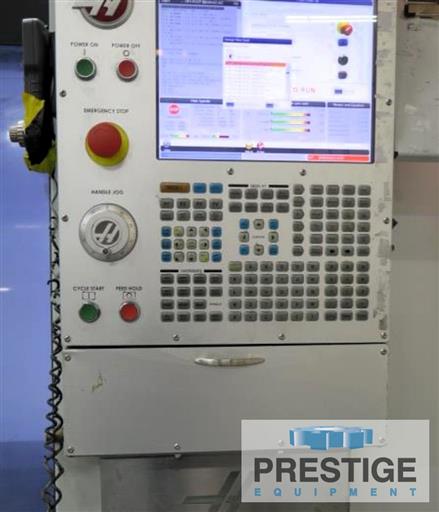

Haas CNC Control

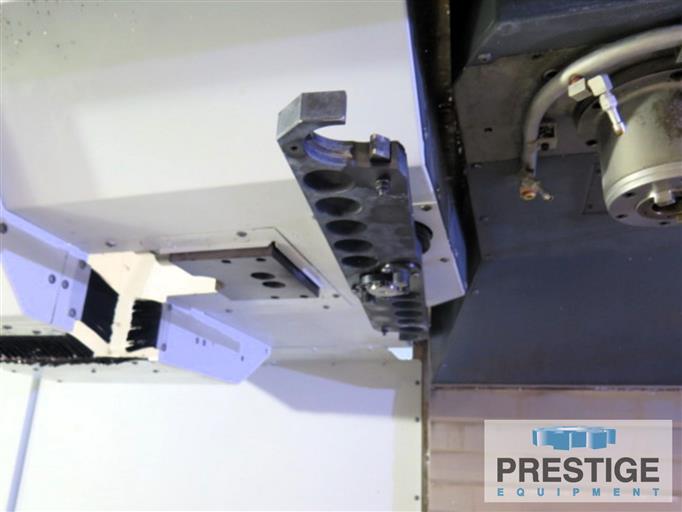

40-Station Side-Mounted ATC
Thru Spindle Coolant, 300 PSI

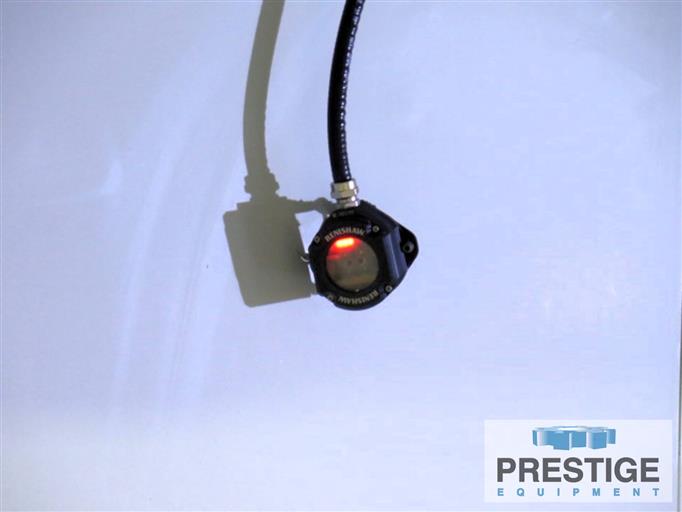

Renishaw Wireless Intuitive Probe System (Tool Probe Not Included)
Programmable Coolant Nozzle
Remote Jog Handle
M19 Spindle Orientation
High Speed Machining
Rigid Tapping
VPS Editing
1 GB Memory Expansion
Compensation Tables
Royal Filtermist Mist Collector

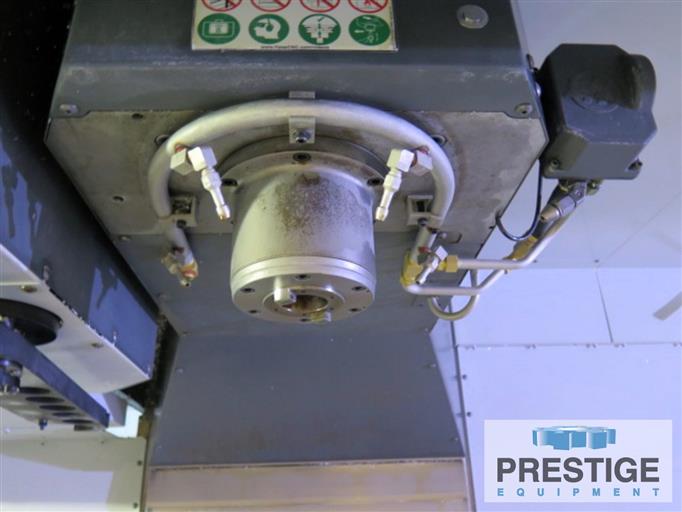

BIG BT-40 High Speed Spindle Head Attachment
Assorted Tooling
Chip Auger
RUN HOURS:
6,637
Features:
✓
Haas CNC Control
✓
40-Station Side-Mounted ATC
✓
Thru Spindle Coolant
✓
Renishaw Wireless Intuitive Probe System
