2005 Haas VF4SS w/ 4th Axis Drive, Haas HRT-210 Rotary Table
Model:
VF 4SS
Age:
2005
Ref#:
44810
Prestige Equipment is the world's leading provider of 2005 Haas VF4SS w/ 4th Axis Drive, Haas HRT-210 Rotary Table & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
HAAS CNC Controls
✓
24 Station Side Mounted Tool Changer
✓
4th Axis Drive & Wiring
✓

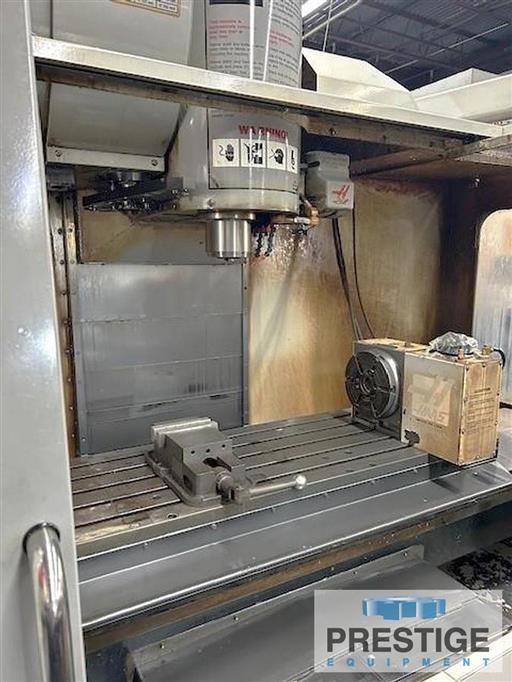

Haas HRT210 4th Axis Rotary Table
✓
Programmable Coolant Nozzle
✓
Rigid Tapping
✓
Coolant Tank with Pump
✓
Inline Direct Drive 12,000 RPM Spindle
✓
RS 232C Port Interface for DNC Operation
✓
All Available Manuals
✓
Wired 208/230V Electrics
✓
Some BT40 Tool Holders
Product Specifications
SPECIFICATIONS:
Table size
1321 MM x 457 MM
Max table load
794 KG
X axis travel
1270 MM
Y axis travel
508 MM
Z axis travel
635 MM
Spindle taper
BT #40
Spindle speed
12,000 RPM
Spindle motor
22 KW - Direct Drive
Spindle nose to table top
107 MM - 742 MM
Number of tool positions
24 + 1 Position Side Mount
Max tool weight
5 KG .
Rapid feed rate (x,y,z
35560 MM/MIN
Cutting feed rate
21161 MM/MIN
Machine dimensions
3861 MM x 2515 MM x 2692 MM
Machine weight (approximately)
6260 KG .
EQUIPPEDF WITH:
HAAS CNC Controls
24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring
Haas HRT210 4th Axis Rotary Table
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 208/230V Electrics
Some BT40 Tool Holders
Machine Motion Hours: 18,951
Spindle Run Hours: 19,504
Features:
✓
HAAS CNC Controls
✓
24 Station Side Mounted Tool Changer
✓
4th Axis Drive & Wiring
✓
Haas HRT210 4th Axis Rotary Table
✓
Programmable Coolant Nozzle
✓
Rigid Tapping
✓
Coolant Tank with Pump
✓
Inline Direct Drive 12,000 RPM Spindle
✓
RS 232C Port Interface for DNC Operation
✓
All Available Manuals
✓
Wired 208/230V Electrics
✓
Some BT40 Tool Holders
