Yasda YMC-430 V2 5-Axis CNC Vertical Machining Center
Model:
YMC-430 V2
Age:
2017
Ref#:
43979
Prestige Equipment is the world's leading provider of Yasda YMC-430 V2 5-Axis CNC Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Fanuc 31i-B5 CNC Control
✓
32-Station Automatic Tool Changer
✓
RT-10 Trunnion Style Rotary Table
✓
Optical Scales on X/Y/Z Axes
✓
Renishaw OMP 400 Probe
Product Specifications
MACHINE SPECIFICATION:
X-Axis Travel
16.5"
Y-Axis Travel
11.8"
Z-Axis Travel
9.8"
Spindle Speed
200 - 40,000 RPM
Spindle Taper
HSK-E32
Table Dimensions
26.6" x 13.7"
Table Weight Capacity
33 Lbs
Distance, Table - Spindle Nose
5.9" - 15.7"
Rapid Feedrate, X/Y/Z
787.4 IPM
Max. Cutting Feedrate
393.7 IPM
Approx. Machine Dimensions
97" x 135" x 119"
Approx. Machine Weight
17,700 Lbs

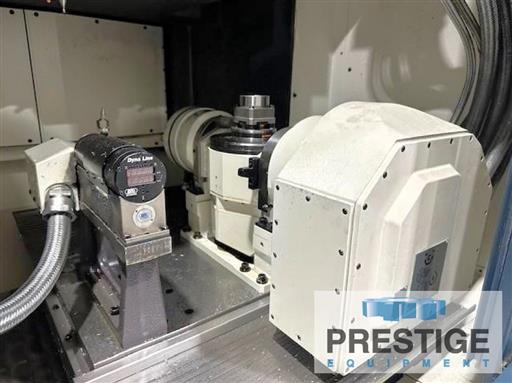

RT-10 TRUNNION STYLE TABLE SPECIFICATION:
B-Axis, Tilt
-10°/+100°
C-Axis, Rotation
.001°
Max. Diameter Swing
9.84"
Equipped With:
Fanuc 31i-B5 CNC Control
32-Station Automatic Tool Changer
RT-10 Trunnion Style Rotary Table
Optical Scales on X/Y/Z Axes
Renishaw OMP 400 Probe
Blube MQL External Mist Coolant
High Speed Smooth TCP
Tilted Working Plane Indexing
Rotation Center Calibration Function
Compensation for Thermal Displacement
Flood Coolant
Mist Collector Interface
Thermal Distortion Stabilizing System
Linear Motors
Coolant System
All Available Manuals
Approximate Cutting Hours:
8,138
Features:
✓
Fanuc 31i-B5 CNC Control
✓
32-Station Automatic Tool Changer
✓
RT-10 Trunnion Style Rotary Table
✓
Optical Scales on X/Y/Z Axes
✓
Renishaw OMP 400 Probe
