Ingersoll 2642 MM x 2438 MM x 9144 MM Double Housing Planer Mill w/37 KW Milling Heads
Model:
Double Housing
Age:
1968
Ref#:
44331
Prestige Equipment is the world's leading provider of Ingersoll 2642 MM x 2438 MM x 9144 MM Double Housing Planer Mill w/37 KW Milling Heads & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓
Double Column
✓
Adjustable Rail
✓
Acu-Rite Digital Readouts
✓

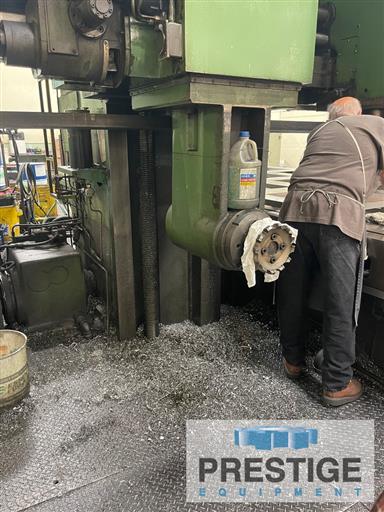

37 KW Left Hand Vertical Milling Head
✓
37 KW Right Hand Vertical Milling Head
✓
37 KW Right Hand Side Head
✓
Bridgeport Head Attachment
✓
Right Angle Head
Product Specifications
SPECIFICATIONS:
X-Axis, Table Travel
10465 MM
Y-Axis, Rail Travel
2743 MM
W-Axis, Right & Left Head Travel
2032 MM
Z-Axis, Vertical Quill Travel
356 MM
Z-Axis, Horizontal Quill Travel
356 MM
Height Under Rail
2438 MM
Distance Between Housings
2667 MM
Table Size Overall
2235 MM x 10465 MM
Quill Diameter
318 MM

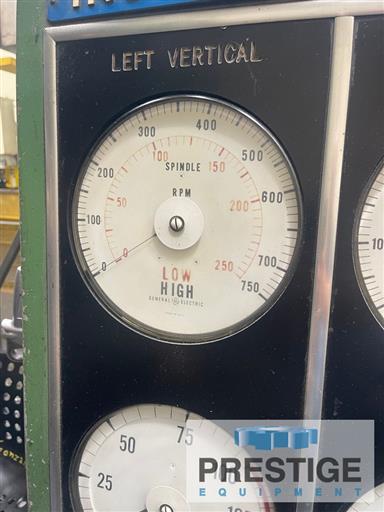

Spindle Speeds (2-Ranges)
To 750 RPM
Table Feeds (Variable)
1905 MM/MIN
Head And Rail Feeds
1143 MM/MIN
Equipped With:
Pendant Controls
37 KW Left Hand Vertical Head
37 KW Right Hand Vertical Head
37 KW Right Hand Side Head
Bridgeport Milling Head
Right Angle Head

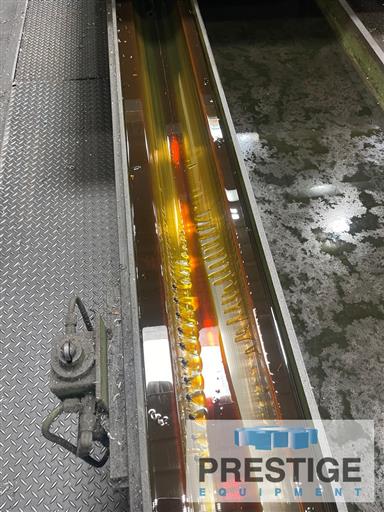

Hardened Tubular Ways on X-Axis
Hardened Ways on Cross Rail
Split Table for Shipping

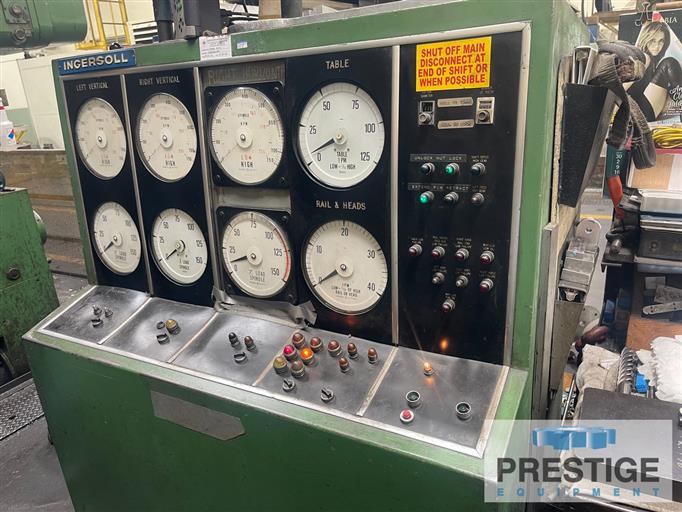

Operators Console Station
NOTES:
Inspect Under Power
Must Move! Looking for Offers!
Features:
✓
Double Column
✓
Adjustable Rail
✓
Acu-Rite Digital Readouts
✓
37 KW Left Hand Vertical Milling Head
✓
37 KW Right Hand Vertical Milling Head
✓
37 KW Right Hand Side Head
✓
Bridgeport Head Attachment
✓
Right Angle Head
