Ingersoll Double Column 5-Axis CNC Bridge Mill W/Pallet Shuttle
Model:
MasterHead 5-Axis
Age:
2007
Ref#:
32608
Prestige Equipment is the world's leading provider of Ingersoll Double Column 5-Axis CNC Bridge Mill W/Pallet Shuttle & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓
Siemens 840D CNC Controls
✓
Pallet Shuttle System
✓
(4)Interchangeable Spindle Units
✓
Gun Drilling Attachment
✓
Renishaw Probe
Product Specifications
TRAVELS:
X-Axis, Table Travel
393.7"
Y-Axis, Horizontal Head Travel
217.1"
Z-Axis, Ram Stroke
59.05"
W-Axis, Rail Travel
59.05"
A-Axis, Twist Head Rotation
360,000 Positions
C-Axis, Twist Head Rotation
360,000 Positions
SPECIFICATIONS:
Distance Between Columns
132"
Distance Ram Face to Table
140"
Pallet Size
98.43" x 196.85"
Pallet Capacity
44,000 lbs
Spindle Motor
140 HP
Spindle Speeds
See Heads
Number of Spindle Units
4
Feed Rate, X-Axis
1181 IPM
Feed Rates, Y & X Axis
1575 IPM
Feed Rate, W-Axis
393 IPM
Power Requirements
460/3/60 650 KVA
Full Load
780 AMPS
Main Breaker
1000 AMPS
SPINDLE UNITS:
2-Axis Orthogonal Twist Head, HSK160, 134 HP, 0 to 2700 RPM
Right Angle Milling Head, HSK100, 31 HP, 0 to - 1000 RPM
Right Angle Milling Head, HSK100, 53 HP, 0 to 2000 RPM
Swivel Head, HSK63A, 16 HP, 0 to 800 RPM
Equipped With:

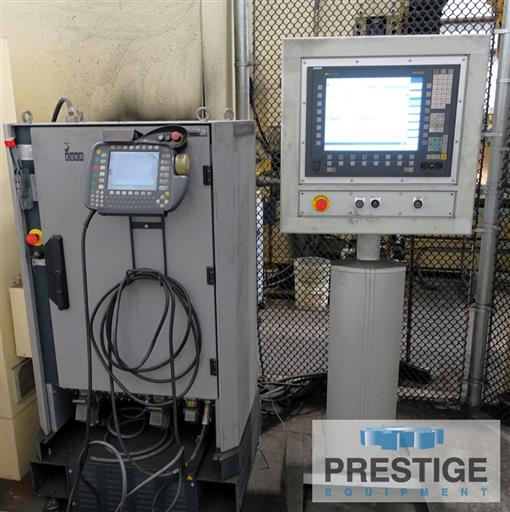

Siemens 840D CNC Control
291 Station Automatic Tool Changer

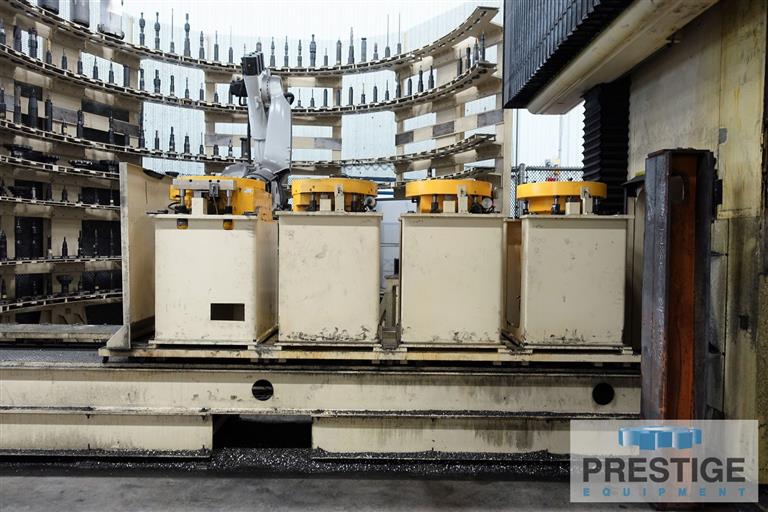

4-Station Automatic Attachment Changer
Pallet Shuttle with (2) 98" x 196" Pallets
Through Spindle Coolant
Renishaw Probe System
Gun Drilling Attachment
Chip Conveyor
Features:
✓
Siemens 840D CNC Controls
✓
Pallet Shuttle System
✓
(4)Interchangeable Spindle Units
✓
Gun Drilling Attachment
✓
Renishaw Probe
