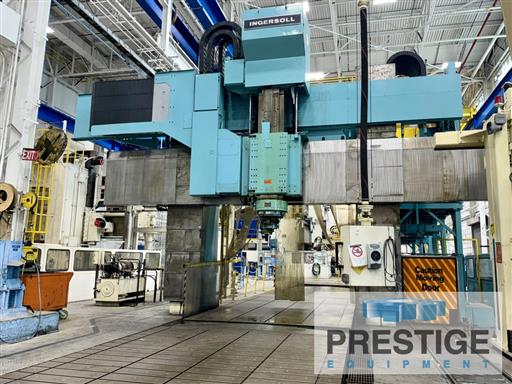

Ingersoll MasterHead 5-Axis CNC Planer Mill, X-541" w/Fanuc Controls
Model:
MasterHead 5-Axis
Age:
2016 ®
Ref#:
43521
Prestige Equipment is the world's leading provider of Ingersoll MasterHead 5-Axis CNC Planer Mill, X-541" w/Fanuc Controls & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓
FANUC 31i 5-Axis New 2016
✓
Double Housing
✓
Adjustable Rail
✓
Automatic Tool Changer
✓
Automatic Attachment Changer
✓
2-Axis Milling Head Attachment
✓
5-Spindle Units
Product Specifications
Serial Number
28806 (27-01)
TRAVELS:
X-Axis, Table Travel
541.1"
Y-Axis, Horizontal Head Travel
196.85"
Z-Axis, Ram Stroke
39.37"
W-Axis, Vertical Travel of Cross Rail
A-Axis, Head Rotation, 360 Degree
360,000 Positions
B-Axis, Head Swivel, 180 Degree
360,000 Positions
SPECIFICATIONS:
Table Size, Joined
137.79" x 509.4"
Table Size, Un-Coupled Front
137.79" x 255.5"
Table Size, Un-Coupled Back
137.79" x 253.9"
Distance Between Table Sections
39.37"
Distance Between Columns
147"
Ram Cross Section
23.62" x 23.62"
Maximum Height Table to Ram Face
127.95"
Spindle Taper
Cat V-50
Speeds
20-4000 RPM
Table Weight Per Table Meter Length
44,000 Lbs/Meter
Table Weight Capacity Joined
139,480 Lbs

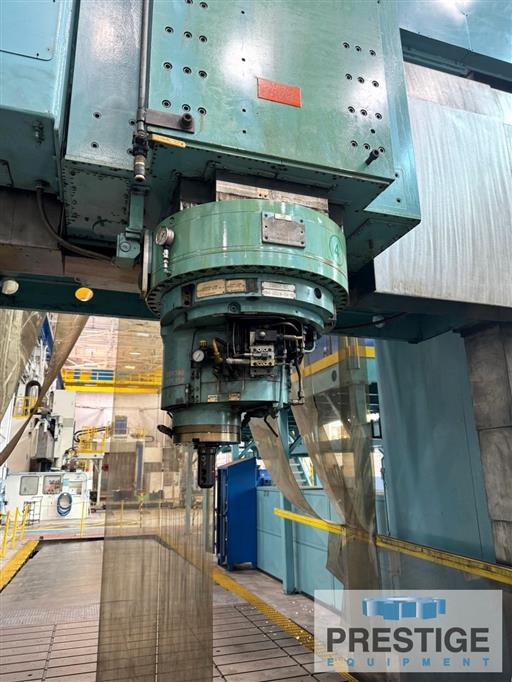

NUTATING 2-AXIS HEAD:
A-Axis, Head Rotation, 360 Degree
360,000 Positions
B-Axis, Head Swivel, 180 Degree
360,000 Positions
Equipped With:
Fanuc 31i 5-Axis CNC Control
Adjustable Pendant Controls
72 Station Automatic Tool Changer
6-Station Automatic Attachment Changer
5-Spindle Units Including Right Angle, Straight Heads
2-Axis Articulating Head for 5-Axis Machining
Right Angle Head for 5-Face Milling
Thru-Spindle Coolant
Telescoping Steel Way Covers on all X, Y & W Axes
Split Table
Chip Conveyor
75 HP/100 HP Digital AC Spindle Motor
NOTES:
Retrofit and Mechanically Refurbished in 2016 With New Electrics.
Features:
✓
FANUC 31i 5-Axis New 2016
✓
Double Housing
✓
Adjustable Rail
✓
Automatic Tool Changer
✓
Automatic Attachment Changer
✓
2-Axis Milling Head Attachment
✓
5-Spindle Units
