Ingersoll MasterMill 5-Axis CNC Bridge Mill w/Pallet Shuttle, Fanuc Controls
Model:
MasterMill
Age:
2016 ®
Ref#:
43528
Prestige Equipment is the world's leading provider of Ingersoll MasterMill 5-Axis CNC Bridge Mill w/Pallet Shuttle, Fanuc Controls & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓
Fanuc 30i-B CNC Control
✓
Automatic Attachment Changer
✓
Automatic Tool Changer
✓
2-Axis Nutating Head
✓
Straight Milling Attachment
✓
Right Angle Milling Attachment
✓
Pallet Shuttle W/2-Pallets
Product Specifications
Serial Number
28804 (29-01)
SPECIFICATIONS:
Table Size
2500 MM x 4000 MM
Number of Pallets
2
X-Axis, Table Travel................... 5999 MM
5999 MM
Y-Axis,Head Travel
3998 MM
Z-Axis,Ram Travel
1000 MM
W-Axis,Rail Travel
1500 MM
A-Axis Head Swivel
0 to 180 Degrees
C-Axis Head Rotation
0 to 360 Degrees
B-Axis Nutator
A & C-Axis Rotations
.001 360,000 Positions
Distance Between Columns
3000 MM
Maximum Height Pallet to Ram Face
2751 MM
Spindle Taper
#50 ANSI B5.5
Spindle Speeds
20-4000 RPM
Table Weight Capacity
36287 KG
X,Y,Z Axes Feed Rate
0 to 5999 MM/MIN
X,Y Axes Rapid Traverse
15001 MM/MIN
X,Y,X Axes Thrust
2994 KG
Equipped With:
Fanuc 30 i CNC Control, New 2016
Automatic Attachment Changer

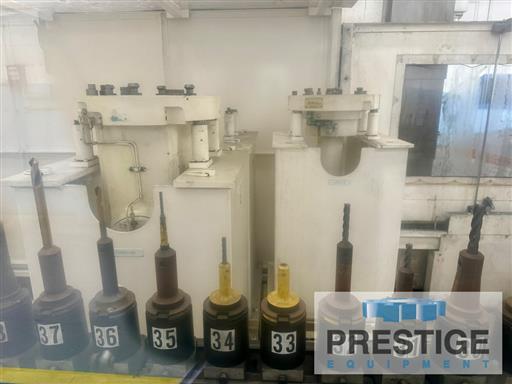

60-Station Automatic Tool Changer
5-Axis Milling Attachment
Straight Milling Attachment
Right Angle Milling Attachment
Sliding steel Way Covers
37 KW Digital AC Spindle Motor
NOTE:
Reconditioned & CNC Upgraded in 2016 With New Fanuc CNC Control
Features:
✓
Fanuc 30i-B CNC Control
✓
Automatic Attachment Changer
✓
Automatic Tool Changer
✓
2-Axis Nutating Head
✓
Straight Milling Attachment
✓
Right Angle Milling Attachment
✓
Pallet Shuttle W/2-Pallets
