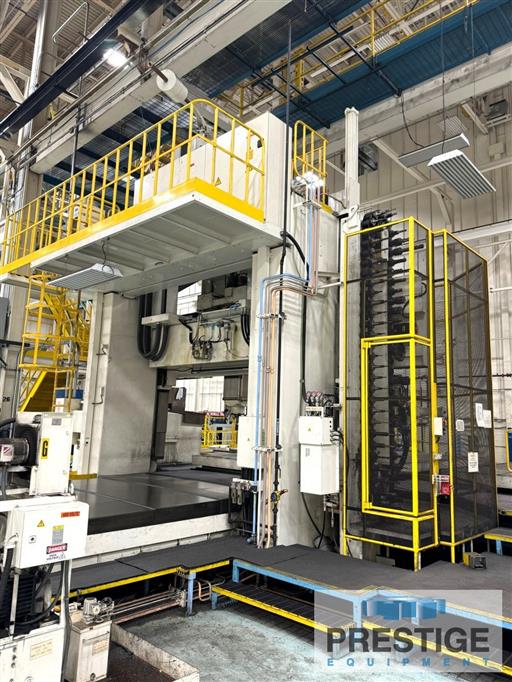

SNK DC-6ASM CNC 5-Face Bridge Mill W/2-Tables

Model:
DC-6ASM APC
Age:
2008
Ref#:
43480
Prestige Equipment is the world's leading provider of SNK DC-6ASM CNC 5-Face Bridge Mill W/2-Tables & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
Fanuc 30i-A CNC Control
60-Position Automatic Tool Changer
Auto Indexing Right Angle Head for 5-Face Machining
(2) 275.6" x 118" T-Slotted Tables
Pallet Shuttle
Dual Chip Conveyors
Product Specifications
Serial Number
453084 (26-15)
SPECIFICATIONS:
X-Axis Table Longitudinal Travel
285.4"
Y-Axis Spindle Head Transverse
198.8"
Z-Axis Ram Vertical Travel
31.5"
W-Axis Cross Rail Vertical Travel
57.08"
Distance Table to Spindle, Maximum
90.55"
Distance Between Columns
137.7"
WORK TABLES:
Pallet Working Surface, T-Slotted
275.6"x 118.1"
Maximum Pallet Workpiece Weight
77,160 lbs.
SPINDLE:
Spindle Speed Range
10-4000 RPM
Spindle Taper
CAT 50
Spindle Bearing Inner Diameter
4.72"
Spindle Drive Motor
50 HP/40 HP
FEEDS & SPEEDS:
Rapid Feeds, X,Y-Axes
787.4 IPM
Rapid Feed, Z-Axis
787.4 IPM
Rapid Feed, W-Axis
118.1 IPM
Cutting Feed, X & Y Axes
1-590.5 IPM
Cutting Feed, Z-Axis
1-472.4 IPM
Fine Feed, All Axes.................... 0.001, 0.01, 0.1 mm/pulse
0.001, 0.01, 0.1 mm/pulse
Equipped With:
Fanuc 30i-Model A CNC Control
60-Position Automatic Tool Changer
275.6" x 118" T-Slotted Tables (2)
Linear & Circulation
Automatic Pallet Shuttle System
Dual Chip Conveyors
Flood & Mist Coolant
50 HP/40 HP Spindle Drive Motor
NOTES:
Inspect Under Power in Mid-West USA
Features:
Fanuc 30i-A CNC Control
60-Position Automatic Tool Changer
Auto Indexing Right Angle Head for 5-Face Machining
(2) 275.6" x 118" T-Slotted Tables
Pallet Shuttle
Dual Chip Conveyors
